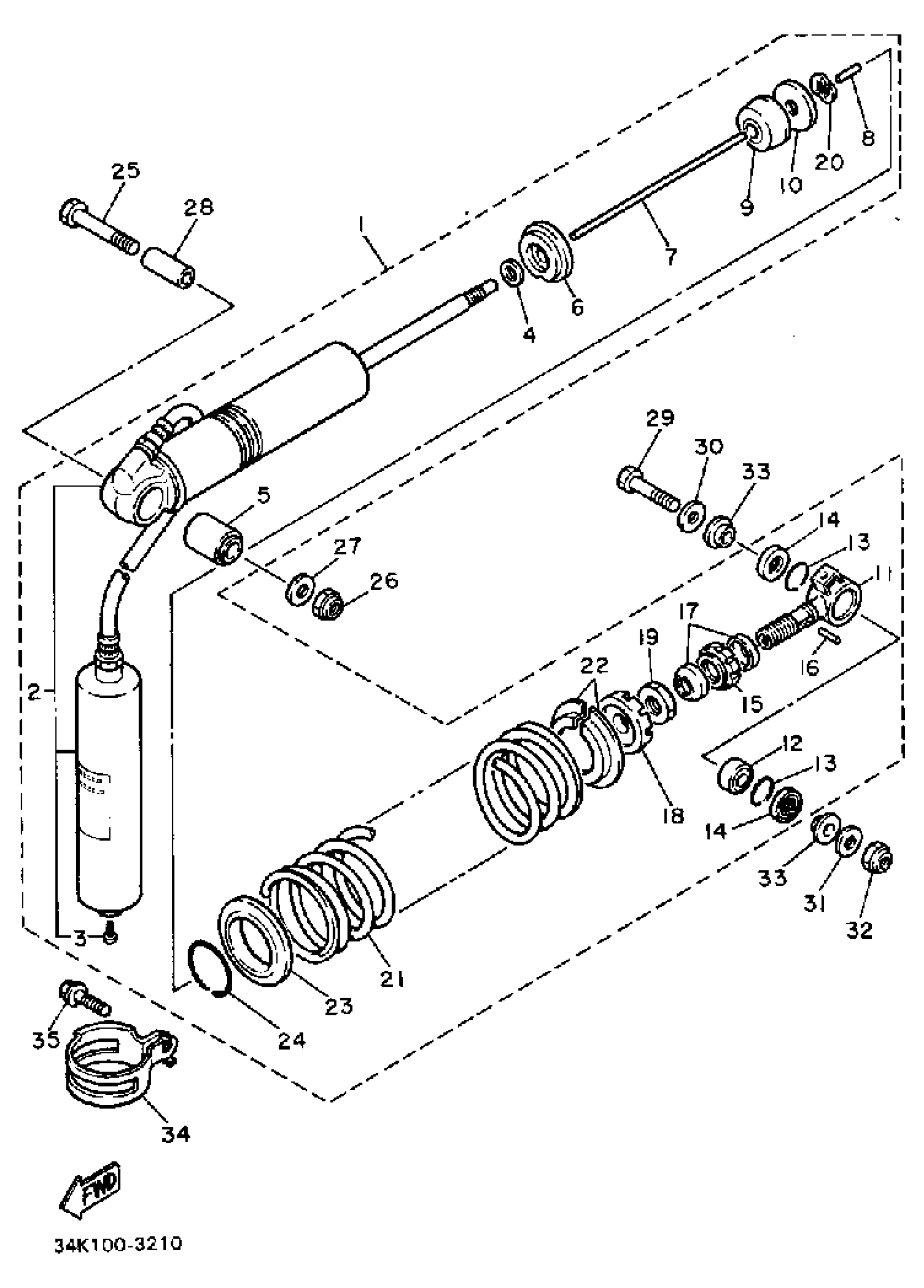

Yamaha TT600K (TT600) 1983 REAR SUSPENSION Diagram

#

Description

Price

1

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

3SW-22210-00-6W

Unavailable

2

. DAMPER SUB-ASSEMBLYASSEMBLY

34K-22401-00-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

SEAL,DUST

23X-22475-01-00

Unavailable

5

BUSH, RR SHOCK ABS

(5X6-22216-00-00)

Unavailable

6

. CAP, CASE 001

26A-22472-00-00

Unavailable

7

ROD,PUSH

56A-22489-00-00

Unavailable

8

. PIN, DOWEL

93604-21193-00

Unavailable

9

. BUMP, STOP

50T-22493-00-00

Unavailable

10

. SUPPORT, BUMP STOP

3R4-22228-00-00

Unavailable

11

. UPPER BRKT SUB ASSEMBLYSUB ASSEMBLY

34K-22409-00-00

Unavailable

12

BEARING(4GG)

93399-999T3-00

$62.99

13

CIRCLIP (23X)

93440-30113-00

$1.70

14

OIL SEAL (23X)

93104-18077-00

$11.49

15

. NUT, ADJUSTING

5X3-22497-00-00

Unavailable

16

. PIN, DOWEL

93604-26132-00

Unavailable

17

. COVER

3R4-22221-01-00

Unavailable

18

. SEAT, SPRING UPPER

23X-22213-00-00

Unavailable

19

NUT, HEXAGON (29L)

90170-20320-00

Unavailable

20

. WASHER, WAVE

90206-14067-00

Unavailable

21

SPRING

(34K-22212-00-6W)

Unavailable

21

. SPRING, MXS HARD

34K-22212-20-6W

Unavailable

22

. GUIDE, SPRING 1

23X-22214-00-00

Unavailable

23

. SEAT, SPRING LOWER

23X-22223-00-00

Unavailable

24

. CIRCLIP

93440-51103-00

Unavailable

25

BOLT (1M1)

90109-10453-00

Unavailable

26

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

27

WASHER (7A9)

90201-100F7-00

Unavailable

28

BUSHING, REAR ARM INNER

2J5-22124-00-00

Unavailable

29

BOLT

90109-10700-00

Unavailable

30

WASHER, PLATE

90201-12027-00

Unavailable

31

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

32

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

33

COLLAR (23X)

90387-126H8-00

Unavailable

34

HOLDER, SUB TANK

34K-22262-00-00

Unavailable

35

BOLT, FLANGE

95817-06012-00

Unavailable
