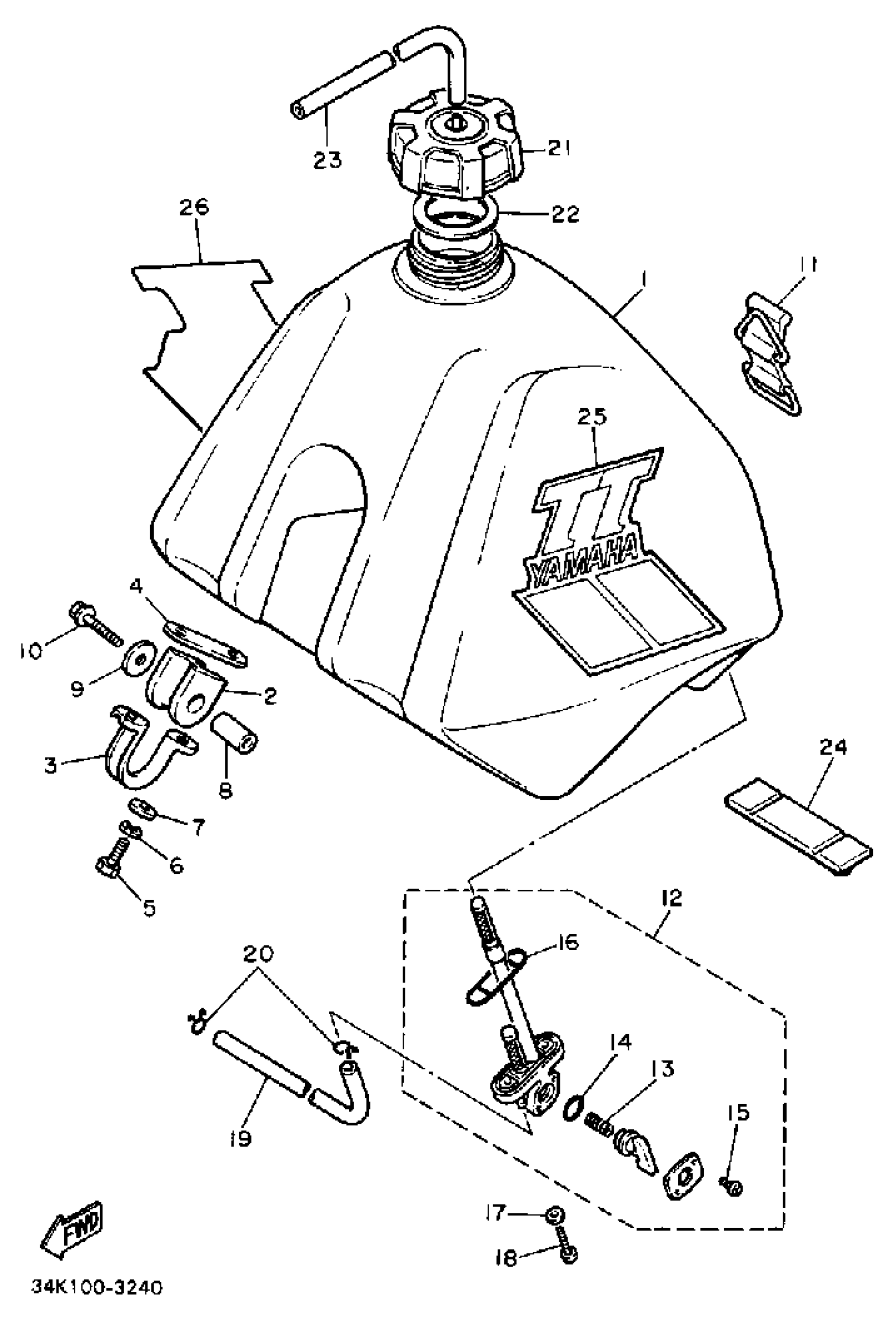

Yamaha TT600K (TT600) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

34K-24110-01-00

Unavailable

2

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

3

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

4

PLATE

34K-2413X-00-00

Unavailable

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

WASHER, SPRING

92995-06100-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

9

WASHER, PLATE

90201-06747-00

$8.49

10

BOLT, WITH WASHER

90119-06022-00

Unavailable

11

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

12

FUEL COCK ASSY 1

34K-24500-02-00

Unavailable

13

SPRING

(357-24529-10-00)

Unavailable

14

O-RING

4X8-24534-00-00

$13.49

15

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

16

O-RING

4X8-24512-00-00

Unavailable

17

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

HOSE (L200)

90445-10752-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable

21

CAP ASSY

5MV-24610-00-00

Unavailable

22

GASKET,CAP

3R9-24612-00-00

Unavailable

23

HOSE (L420)

90445-092K1-00

Unavailable

24

DAMPER, LOCATING 1

34K-24181-00-00

Unavailable

25

EMBLEM 3

34K-24163-00-00

Unavailable

25

EMBLEM 3

(34K-24163-10-00)

Unavailable

26

EMBLEM 4

34K-24164-00-00

Unavailable

26

EMBLEM 4

34K-24164-10-00

Unavailable
