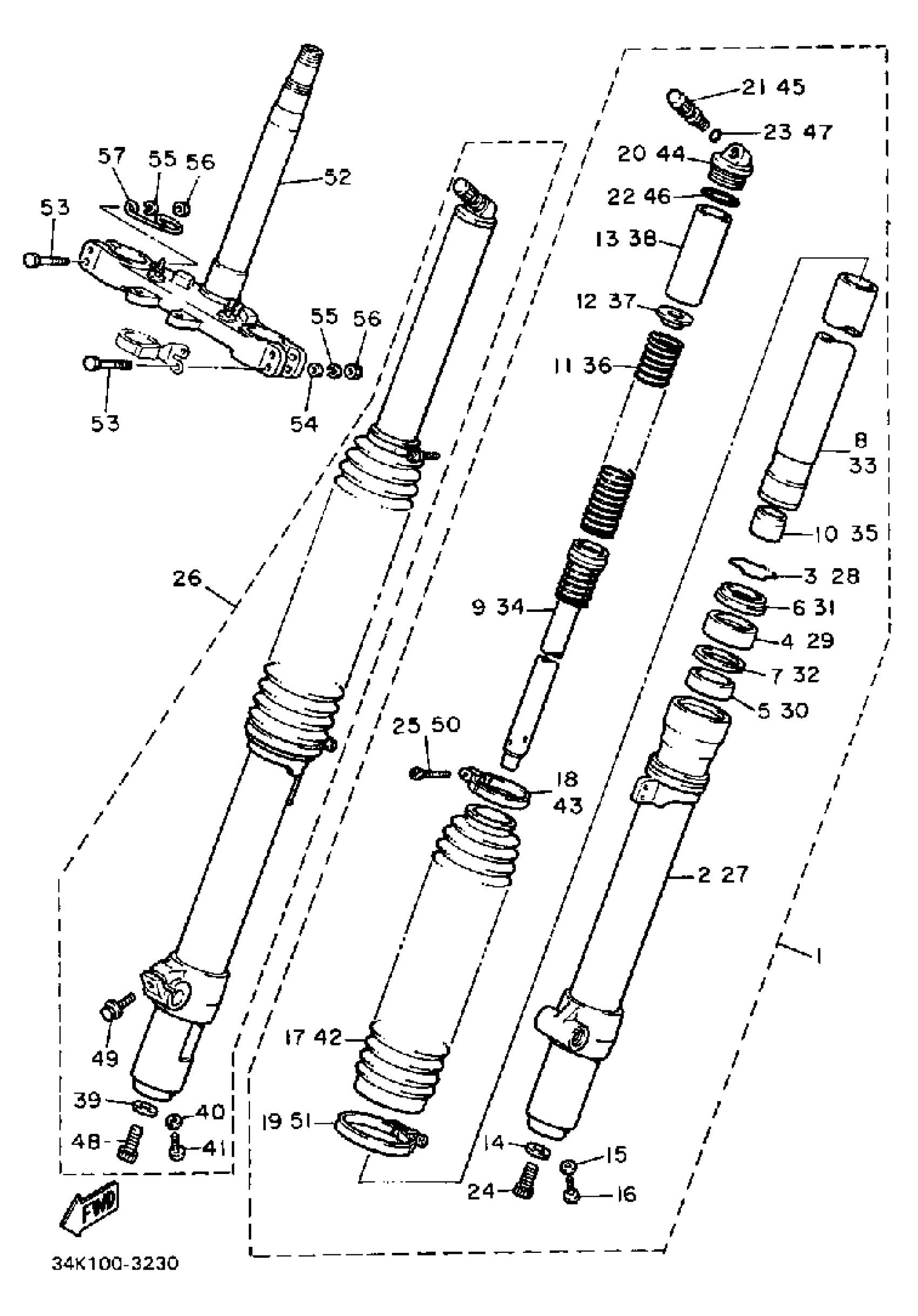

Yamaha TT600K (TT600) 1983 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(34K-23102-00-00)

Unavailable

2

. TUBE, OUTER 1

34K-23126-00-38

Unavailable

3

RING, SNAP

4V4-23153-L0-00

$9.99

4

OIL SEAL

23X-23145-L0-00

$32.99

5

METAL, SLIDE 1

5EB-23125-00-00

$32.99

6

SEAL, DUST

23X-23144-L0-00

$27.99

7

WASHER

4V4-23146-L0-00

$6.99

8

INNER TUBE COMP.

55U-23110-00-00

Unavailable

9

. CYLINDER, FRTFRKFRONT FORK

34K-23170-00-00

Unavailable

10

. SPINDLE, TAPER

4V4-23173-L0-00

Unavailable

11

. SPRING, FRONT FORK

34K-23141-00-00

Unavailable

11

. SPRING, FRTFRK HARD (HARD)

34K-23141-20-00

Unavailable

12

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

13

. SPACER (L=110)

5X6-23118-M0-00

Unavailable

14

GASKET

4V4-23158-L0-00

$9.99

15

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

. BOOT, FRONT FORK

23X-23191-M0-00

Unavailable

18

. BAND

4V4-23192-L0-00

Unavailable

19

. BAND

23X-23489-L0-00

Unavailable

20

BOLT,CAP

43M-23111-L0-00

Unavailable

21

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

22

O-RING

4V4-23188-L1-00

Unavailable

23

O-RING

3J2-23147-00-00

Unavailable

24

. BOLT, HEX SCKT HEADSOCKET HEAD

34K-23181-00-00

Unavailable

25

SCREW, PAN HEAD

98507-04018-00

Unavailable

26

FRONT FORK ASSEMBLY R

(34K-23103-00-00)

Unavailable

27

TUBE, OUTER 2

(34K-23136-00-00)

Unavailable

28

RING, SNAP

4V4-23153-L0-00

$9.99

29

OIL SEAL

23X-23145-L0-00

$32.99

30

METAL, SLIDE 1

5EB-23125-00-00

$32.99

31

SEAL, DUST

23X-23144-L0-00

$27.99

32

WASHER

4V4-23146-L0-00

$6.99

33

INNER TUBE COMP.

55U-23110-00-00

Unavailable

34

. CYLINDER, FRTFRKFRONT FORK

34K-23170-00-00

Unavailable

35

. SPINDLE, TAPER

4V4-23173-L0-00

Unavailable

36

. SPRING, FRONT FORK

34K-23141-00-00

Unavailable

36

. SPRING, FRTFRK HARD (HARD)

34K-23141-20-00

Unavailable

37

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

38

. SPACER (L=110)

5X6-23118-M0-00

Unavailable

39

GASKET

4V4-23158-L0-00

$9.99

40

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

41

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

42

. BOOT, FRONT FORK

23X-23191-M0-00

Unavailable

43

. BAND

4V4-23192-L0-00

Unavailable

44

BOLT,CAP

43M-23111-L0-00

Unavailable

45

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

46

O-RING

4V4-23188-L1-00

Unavailable

47

O-RING

3J2-23147-00-00

Unavailable

48

. BOLT, HEX SCKT HEADSOCKET HEAD

34K-23181-00-00

Unavailable

49

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

Unavailable

50

SCREW, PAN HEAD

98507-04018-00

Unavailable

51

. BAND

26A-23489-L0-00

Unavailable

52

UNDER BRACKETCOMP (26A-23340-L0-39)

34K-23340-00-39

Unavailable

53

BOLT (1E6)

90101-08340-00

Unavailable

54

.. WASHER, PLATE

92990-08600-00

Unavailable

55

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

56

NUT(6L2)

95333-08600-00

Unavailable

57

GUIDE, CABLE

4V5-23389-00-00

Unavailable
