Description

Price

1

CYLINDER ASSEMBLY

99999-01957-00

Unavailable

2

. SLEEVE, CYLINDER

34K-11312-09-00

Unavailable

3

O-RING (5Y1)

93210-97524-00

$16.99

4

ABSORBER

583-11127-00-00

$7.99

5

GASKET, CYLINDER

1VJ-11351-00-00

Unavailable

6

WASHER, PLATE(3LN)

90201-086M0-00

$8.49

7

NUT, CROWN (4G0)

90176-08026-00

$14.99

8

WASHER, PLATE (583)

90201-10590-00

$5.60

9

NUT

90179-10021-00

$25.99

10

WASHER, PLATE 3711117500

90201-10124-00

$9.49

11

NUT (2Y5)

90179-10279-00

$8.49

12

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

13

GASKET, CYLINDER HEAD

1JK-11181-02-00

Unavailable

14

PIN, DOWEL

99530-12016-00

$4.89

15

BOLT, WASHER BASED

90105-08464-00

Unavailable

16

BOLT,WASHER BASED

90105-08465-00

Unavailable

17

WASHER, PLATE

90201-080L7-00

Unavailable

18

GASKET (5Y1)

90430-08178-00

Unavailable

19

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

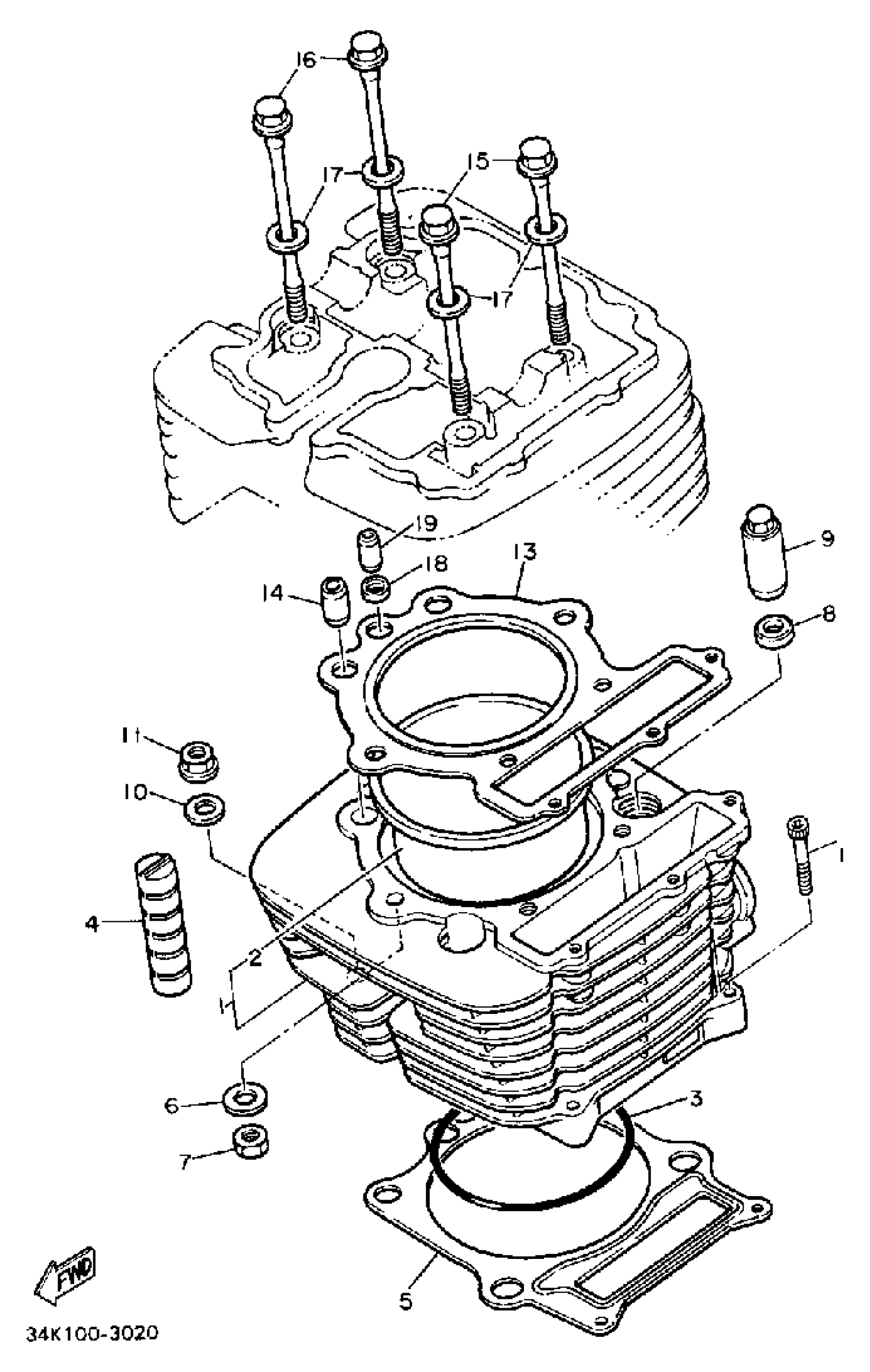

Yamaha TT600K (TT600) 1983 CYLINDER Diagram

CYLINDER ASSEMBLY

. SLEEVE, CYLINDER

O-RING (5Y1)

ABSORBER

GASKET, CYLINDER

WASHER, PLATE(3LN)

NUT, CROWN (4G0)

WASHER, PLATE (583)

NUT

WASHER, PLATE 3711117500

NUT (2Y5)

BOLT, HEXAGON SOCKET HEAD(1VJ)

GASKET, CYLINDER HEAD

PIN, DOWEL

BOLT, WASHER BASED

BOLT,WASHER BASED

WASHER, PLATE

GASKET (5Y1)

PIN, DOWEL(3XW)
