1981 Yamaha TT500 (TT500H) Transmission Diagram

← All diagrams

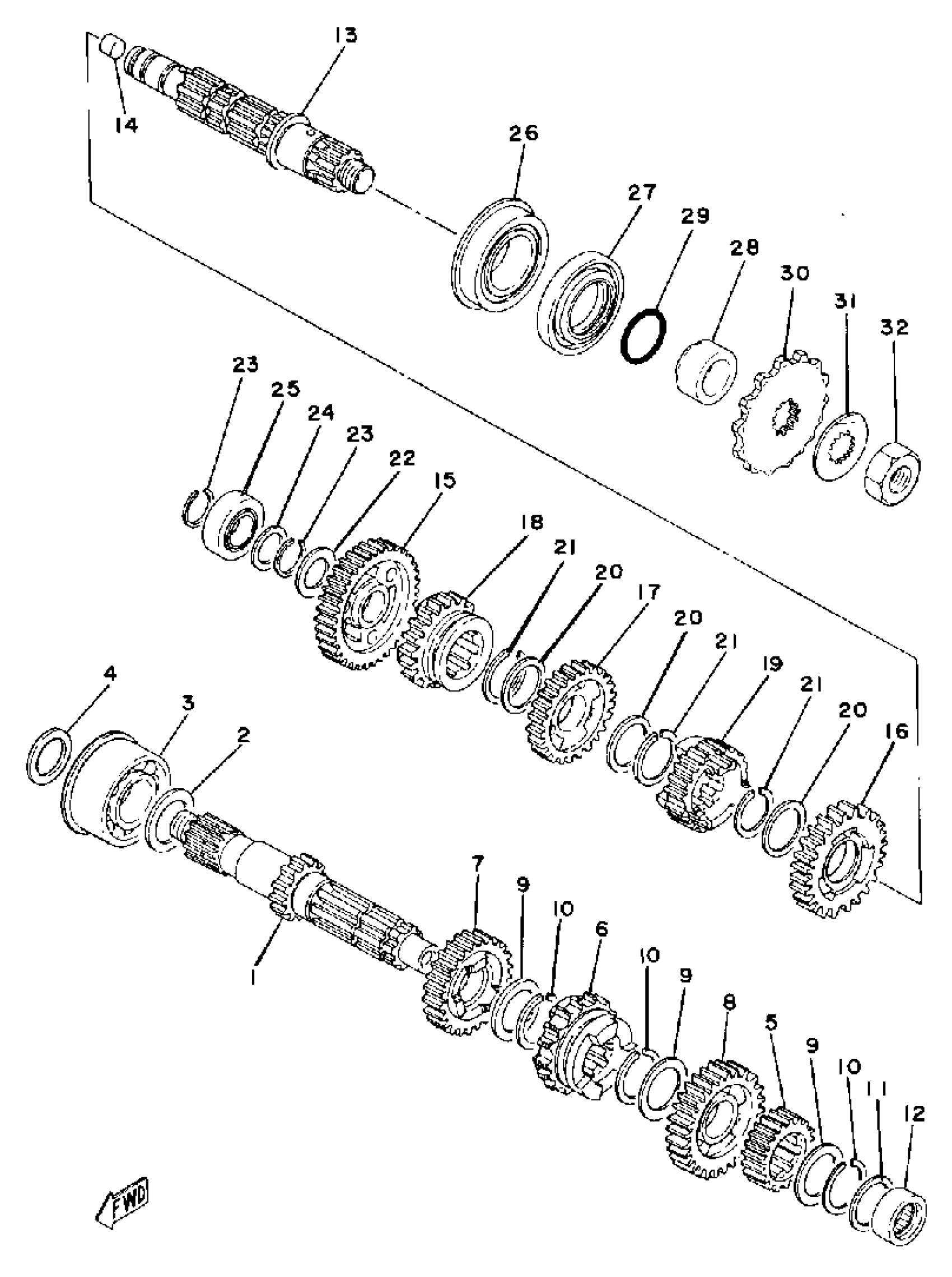

Find the part on the Transmission diagram for your 1981 Yamaha TT500 (TT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha TT500 (TT500H) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

583-17411-01-00

—

$162.62

In stock

2

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

3

BEARING (4R8)

93306-20546-00

—
Out of stock

4

WASHER, PLATE (3X0)

90201-252A4-00

—

$9.18

In stock

5

GEAR, 2ND PINION

583-17121-00-00

—
Out of stock

6

GEAR, 3RD PINION

583-17131-02-00

1
Out of stock

7

GEAR, 4TH PINION

583-17141-00-00

1
Out of stock

8

GEAR, 5TH PINION

583-17151-01-00

1
Out of stock

9

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

10

CIRCLIP

93440-25020-00

1
Out of stock

11

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

12

BEARING

93311-42077-00

1
Out of stock

13

AXLE, DRIVE

99999-01986-00

1
Out of stock

14

PLUG, SPEC''L SHAPE

90338-09066-00

1
Out of stock

15

GEAR, 1ST WHEEL

583-17211-00-00

—
Out of stock

16

GEAR, 2ND WHEEL

583-17221-00-00

—
Out of stock

17

GEAR, 3RD WHEEL

583-17231-01-00

1
Out of stock

18

GEAR, 4TH WHEEL

583-17241-00-00

—
Out of stock

19

GEAR, 5TH WHEEL

583-17251-01-00

1
Out of stock

20

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

21

CIRCLIP

93440-25020-00

1
Out of stock

22

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

23

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

24

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

25

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

—
Out of stock

26

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

—
Out of stock

27

OIL SEAL, SD-TYPE

93102-35180-00

1
Out of stock

28

COLLAR

90387-25507-00

1
Out of stock

29

O-RING

93210-22298-00

—

$6.57

In stock

30

SPROCKET, DRIVE (14T)

9383E-14215-00

—

$20.42

In stock

30

SPROCKET, DRIVE

4DN-17460-00-00

—

$50.31

In stock

30

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

1
Out of stock

31

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

32

NUT 152174630000

90179-18020-00

—
Out of stock
