1981 Yamaha TT500 (TT500H) Clutch Diagram

← All diagrams

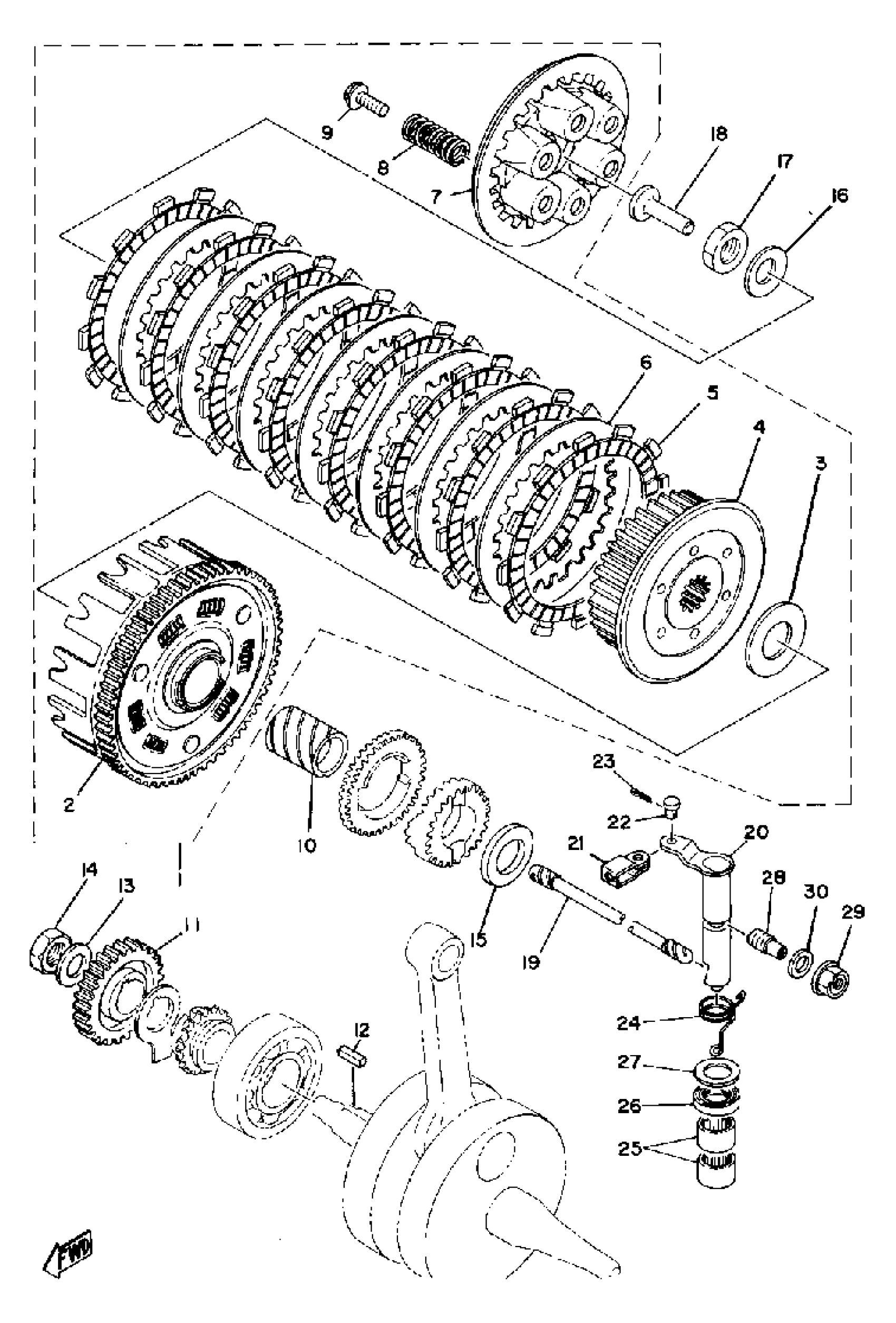

Find the part on the Clutch diagram for your 1981 Yamaha TT500 (TT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha TT500 (TT500H) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

(583-16301-00-00)

1
Out of stock

2

PRIMARY DRIVEN GEAR COMP

2J2-16150-00-00

—
Out of stock

3

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

4

BOSS, CLUTCH

583-16371-00-00

1
Out of stock

5

PLATE, FRICTION 1

5Y1-16321-00-00

1
Out of stock

6

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

7

PLATE, PRESSURE

498-16351-00-00

—
Out of stock

8

SPRING (583 CLUTCH)

90501-23391-00

1

$5.68

In stock

9

SCREW, WITH WASHER (583)

90159-06010-00

1

$6.54

In stock

10

SPACER (583)

90560-25153-00

—
Out of stock

11

GEAR, PRI DRIVE

583-16111-00-00

1
Out of stock

12

KEY, STRAIGHT (583)

90282-07021-00

1

$7.52

In stock

13

WASHER (517 CLUTCH)

90208-16019-00

1
Out of stock

14

NUT

90170-16425-00

1
Out of stock

15

PLATE, THRUST

363-16154-00-00

1

$14.25

In stock

16

SPRING

214-16119-00-00

—
Out of stock

17

NUT HEXAGON 363115550000

90170-18086-00

—
Out of stock

18

ROD, PUSH

174-16356-00-00

—
Out of stock

19

ROD, PUSH

583-16357-01-00

—
Out of stock

20

PUSH LEVER COMP.

583-16381-00-00

—
Out of stock

21

JOINT

214-16389-00-00

—
Out of stock

22

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

23

. PIN, COTTER

91401-10015-00

1
Out of stock

24

SPRING, TORSION (583 CLUTCH)

90508-12279-00

—
Out of stock

25

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

—
Out of stock

26

OIL SEAL (48U)

93102-17357-00

—
Out of stock

27

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

28

SCREW, ADJUSTING

364-16343-00-00

—
Out of stock

29

NUT, CLUTCH ADJUSTING

583-16344-00-00

—
Out of stock

30

WASHER, PLATE 3412175700

90201-12172-00

—

$2.91

In stock
