Description

Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

SEAL, DUST

164-23462-00-00

$7.99

3

CROWN, HANDLE

5X3-23435-01-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

BOLT, FLANGE

95817-08035-00

$9.49

6

BOLT, FLANGE

95814-08040-00

$4.72

7

BOLT, FLANGE

95817-08055-00

$4.21

8

NUT, FLANGE

95704-08500-00

$8.49

9

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

10

HOLDER, WIRE

3R4-23317-00-00

$35.99

11

GUIDE, CABLE

1T2-23389-00-00

Unavailable

12

CAP, BOLT

583-23469-00-00

Unavailable

13

RACE, BALL 2

B6E-23412-00-00

$13.49

14

BALL

93501-04011-00

$8.49

15

RACE, BALL 1

BP2-23411-00-00

$11.49

16

RACE, BALL 2

BP2-23412-00-00

Unavailable

17

BALL

93503-16003-00

Unavailable

18

COVER, BALL RACE 2

2Y0-23416-00-00

Unavailable

19

NUT

90179-25004-00

Unavailable

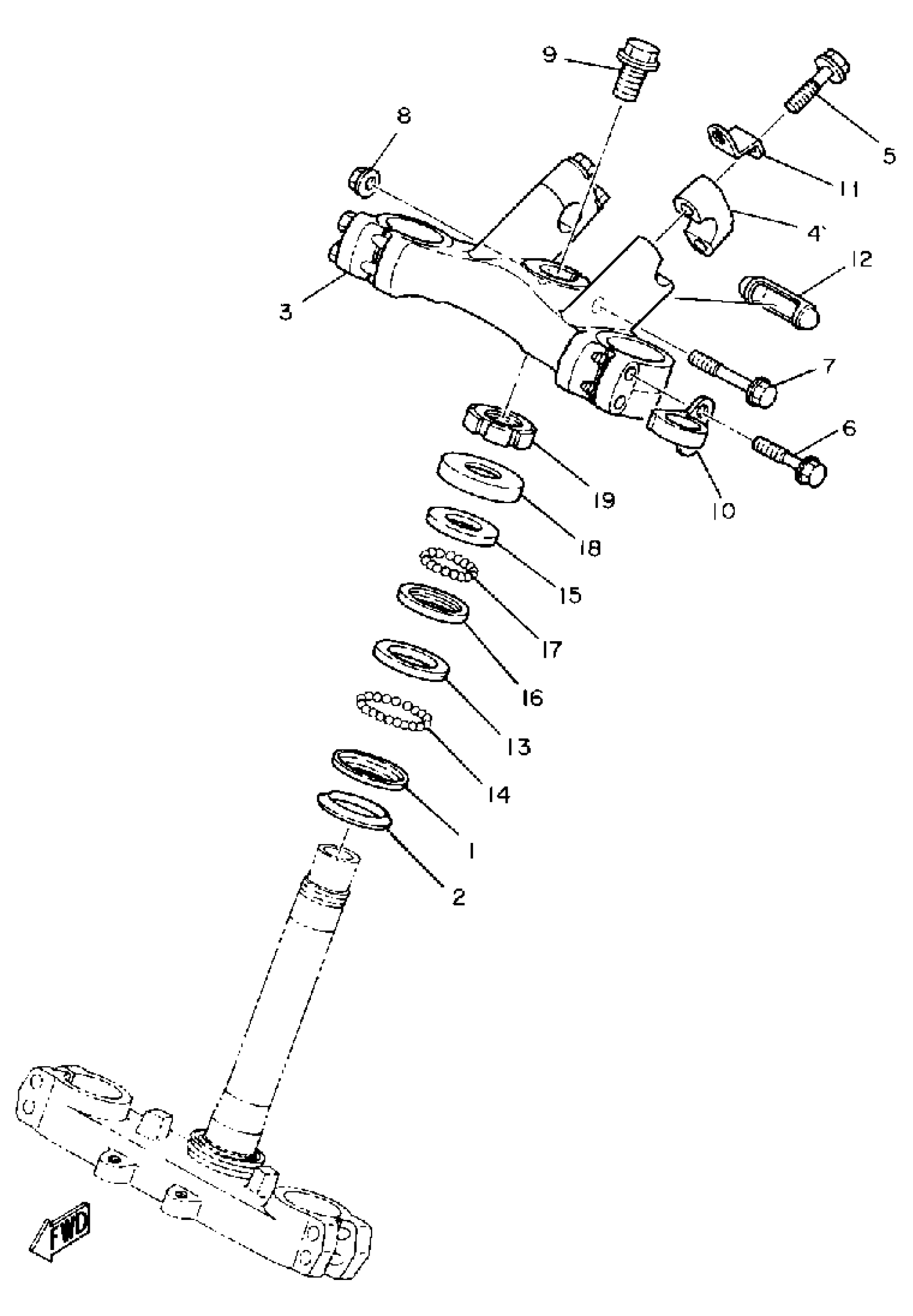

Yamaha TT500H (TT500) 1981 STEERING Diagram

RACE, BALL 1

SEAL, DUST

CROWN, HANDLE

HOLDER, HANDLE UPPER

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

NUT, FLANGE

BOLT, WASHER BASED HEAD (10V)

HOLDER, WIRE

GUIDE, CABLE

CAP, BOLT

RACE, BALL 2

BALL

RACE, BALL 1

RACE, BALL 2

BALL

COVER, BALL RACE 2

NUT
