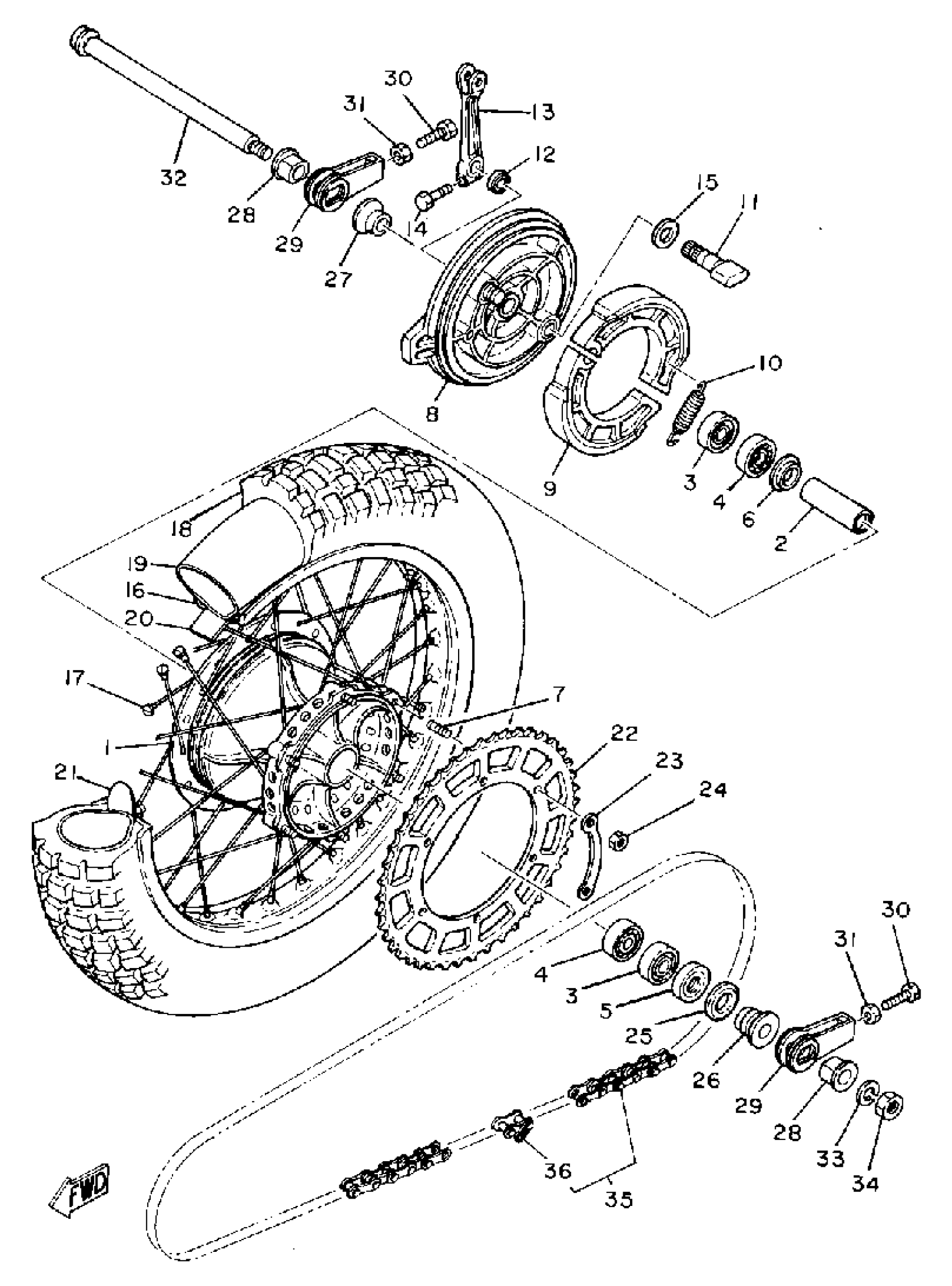

Yamaha TT500H (TT500) 1981 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(483-25311-13-98)

Unavailable

2

SPACER, BEARING

483-25317-01-00

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

5

OIL SEAL (25X40X8-248)

93102-25061-00

$13.49

6

FLANGE, SPACER

483-25315-00-00

Unavailable

7

BOLT, STUD (483)

90116-08218-00

$8.49

8

PLATE, BRAKE SHOE

1W4-25321-00-98

Unavailable

9

BRAKE SHOE KIT

4GR-W253E-00-00

Unavailable

10

SPRING, TENSION 2462533300

90507-20002-00

$8.49

11

CAMSHAFT

1E6-25151-00-00

Unavailable

12

SEAL, CAM SHAFT

148-25359-00-00

$4.78

13

LEVER, CAMSHAFT

2Y0-25355-00-00

Unavailable

14

BOLT, HEXAGON (462)

90101-06291-00

$8.49

15

SHIM, CAM SHAFT

148-25353-00-00

$6.99

16

RIM 2.15X18 (94421-18151) (2.15-18)

94421-18238-00

Unavailable

17

SPOKE SET, REAR (431-25304-00)

431-25304-01-00

Unavailable

18

DUN 460X18 K190

(94146-18511-00)

Unavailable

19

TUBE (5A8)

94212-18188-00

Unavailable

20

BAND, RIM (2J4)

94340-18086-00

Unavailable

21

SPACER,BEAD

1T1-25394-01-00

Unavailable

22

SPROCKET, DRIVEN 44T

38W-25444-20-00

Unavailable

22

SPROCKET, DRIVN 40T

583-25440-10-00

Unavailable

22

SPROCKET, DRIVN 42T

583-25442-10-00

Unavailable

22

SPROCKET, DRIVN 46T

583-25446-10-00

Unavailable

22

SPROCKET, DRIVN 48T (48T)

583-25448-10-00

Unavailable

22

SPROCKET, DRIVN 50T (50T)

583-25450-10-00

Unavailable

22

SPROCKET, DRIVN 52T (52T)

583-25452-10-00

Unavailable

22

SPROCKET, DRIVN 54T (54T)

583-25454-10-00

Unavailable

23

WASHER

2XJ-25412-00-00

Unavailable

24

NUT (583)

90170-08193-00

Unavailable

25

COVER, HUB DUST

431-25367-00-00

Unavailable

26

COLLAR

90387-17650-00

Unavailable

27

COLLAR

(90387-17651-00)

Unavailable

28

BUSH, SOLID

90381-17027-00

Unavailable

29

PULLER, CHAIN 1

2K8-25388-00-00

Unavailable

30

BOLT

90101-08060-00

Unavailable

31

. NUT

95380-08700-00

Unavailable

32

AXLE, WHEEL

2K8-25381-00-00

Unavailable

33

WASHER(JN5)

92907-16100-00

Unavailable

34

NUT, HEXAGON

90170-16177-00

Unavailable

35

CHAIN 520DS-104L

9Y585-20103-00

Unavailable

36

JOINT, CHAIN

94681-68001-00

Unavailable
