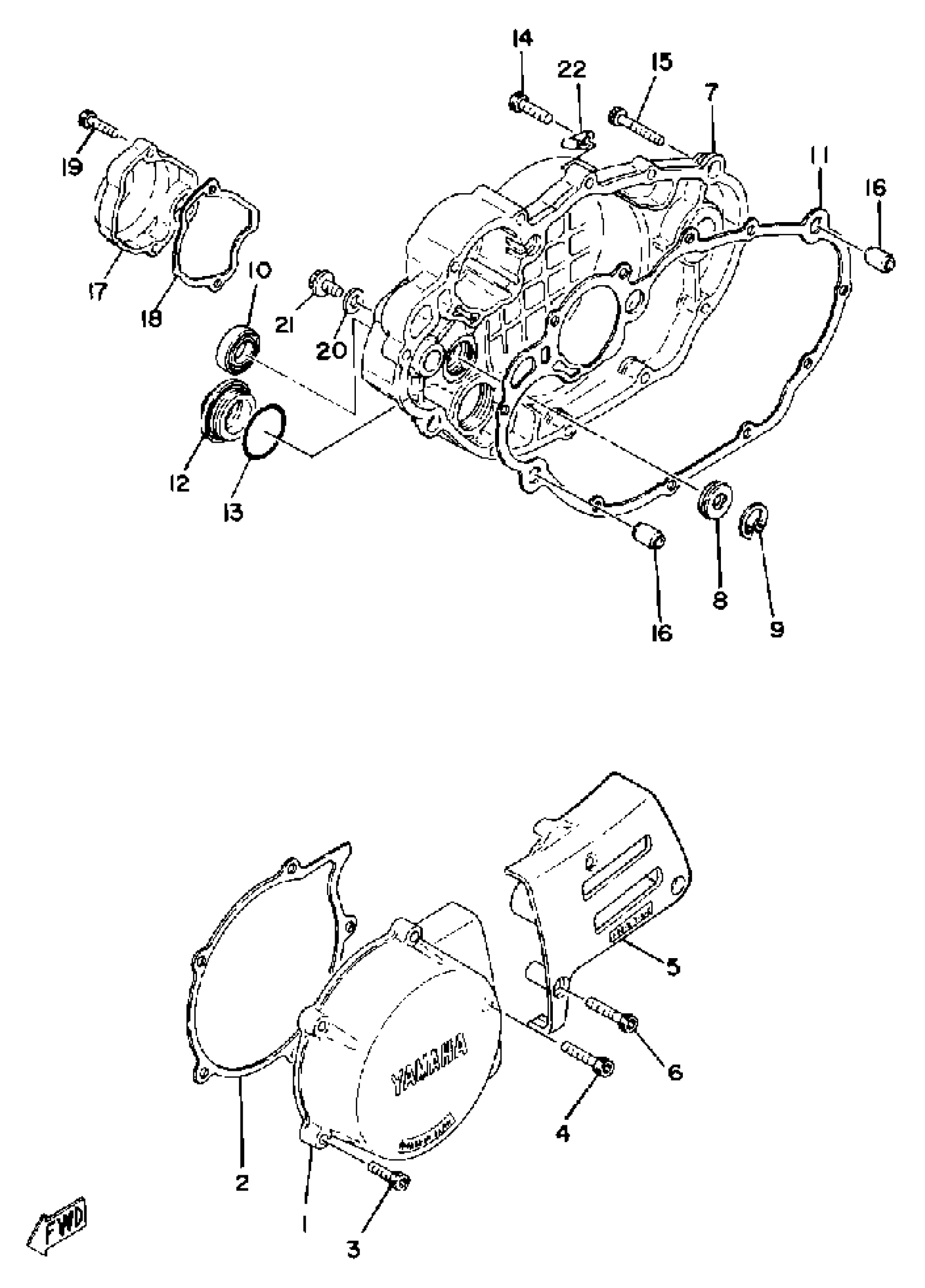

Yamaha TT500H (TT500) 1981 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

583-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

$24.99

3

BOLT,SOCKET

91317-06025-00

$5.60

4

BOLT,SOCKET

91317-06035-00

Unavailable

5

COVER, CRANKCASE R

583-15421-00-00

Unavailable

6

BOLT,SOCKET

91317-06035-00

Unavailable

7

COVER, CRANKCASE 3 (583-15431-02-98)

583-W1542-00-00

Unavailable

8

OIL SEAL (14X25X5.5-583)

93101-14089-00

$12.49

9

CIRCLIP

99009-25500-00

$7.49

10

OIL SEAL (15X26X5-583)

93102-15147-00

$10.49

11

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

$22.99

12

COVER, GENERATOR R

583-15425-00-00

Unavailable

13

O-RING (5H0)

93210-34474-00

$5.60

14

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

15

BOLT,SOCKET

91317-06040-00

$3.76

16

PIN, DOWEL

99530-12016-00

Unavailable

17

COVER, CAP

583-15417-00-00

Unavailable

18

GASKET

3HT-15457-00-00

Unavailable

19

BOLT,SOCKET

91317-06025-00

$5.60

20

GASKET (5R6)

90430-10171-00

Unavailable

21

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

22

CLAMP

90465-08076-00

Unavailable
