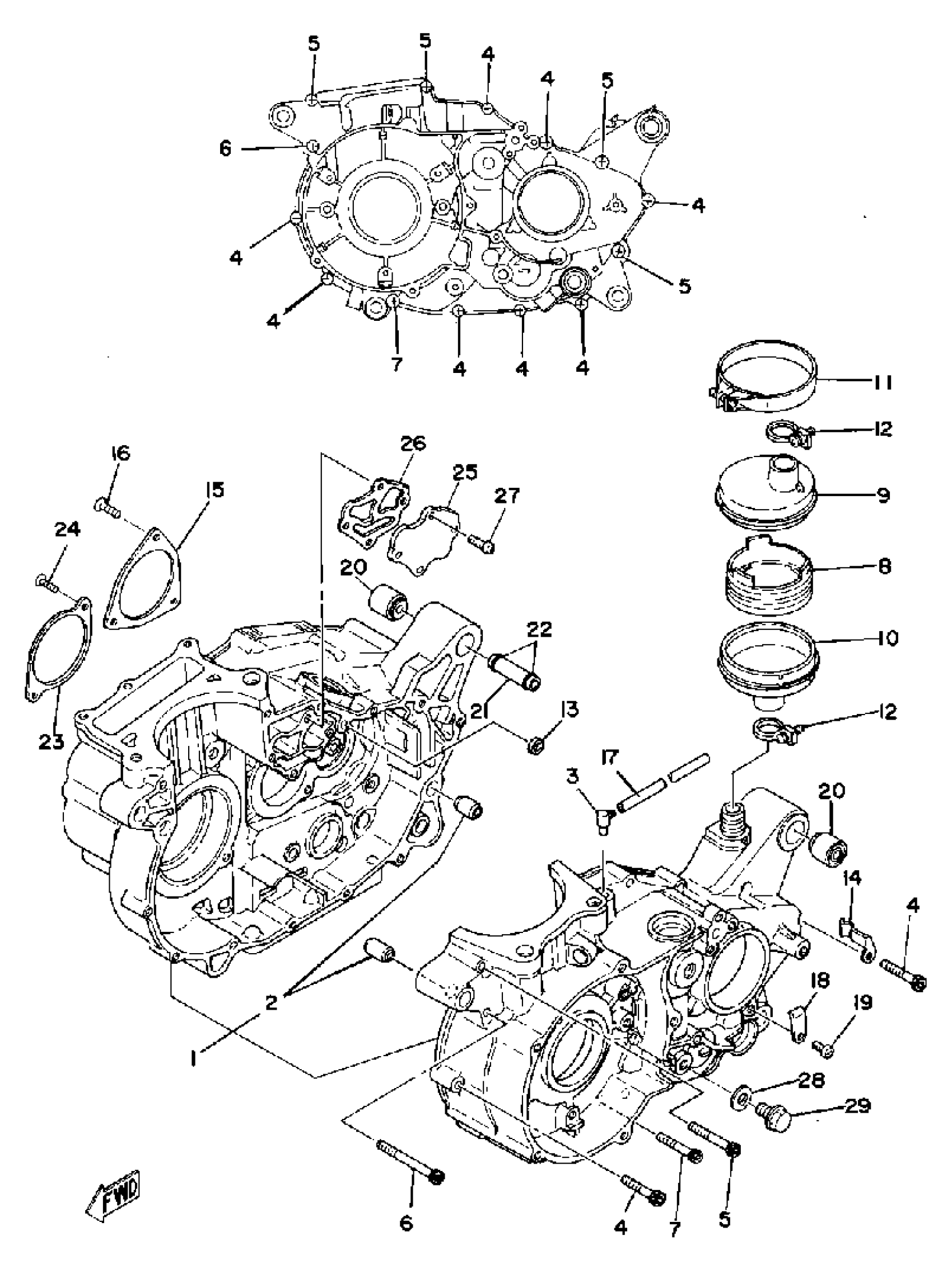

Yamaha TT500H (TT500) 1981 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY.

(2Y0-15100-01-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BREATHER

583-15371-00-00

$6.99

4

BOLT,SOCKET

91317-06035-00

Unavailable

5

BOLT,SOCKET

91317-06045-00

$4.99

6

BOLT, SOCKET

91317-06065-00

$3.76

7

BOLT,SOCKET

91317-06055-00

$4.19

8

SEPARATOR, OIL

3HT-15358-00-00

Unavailable

9

BREATHER 1

583-15346-00-00

Unavailable

10

BREATHER 2

583-15347-00-00

Unavailable

11

CLAMP, HOSE (90460-71017)

90460-71129-00

Unavailable

12

CLAMP, HOSE (583)

90460-22083-00

$8.49

13

GASKET (583 CRANKCASE)

90430-09121-00

$7.49

14

CLAMP(51Y)

90465-08277-00

Unavailable

15

PLATE, BRNG COVER

(363-15381-00-00)

Unavailable

16

SCREW, FLAT

98707-05012-00

Unavailable

17

HOSE (L1050)

90445-072G8-00

Unavailable

18

CLAMP

(90465-05075-00)

Unavailable

19

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

20

DAMPER, ENG MOUNT 1

583-15316-00-00

Unavailable

21

SPACER, ENG MOUNT

583-15317-01-00

Unavailable

22

O-RING (1J7)

93210-11313-00

Unavailable

23

PLATE, BEARING COVER

583-15383-00-00

Unavailable

24

SCREW, FLAT

98707-06014-00

Unavailable

25

COVER, OIL PUMP 2

583-15426-10-00

Unavailable

26

GASKET 2

3HT-15466-00-00

Unavailable

27

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

28

GASKET (5R6)

90430-10171-00

Unavailable

29

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable
