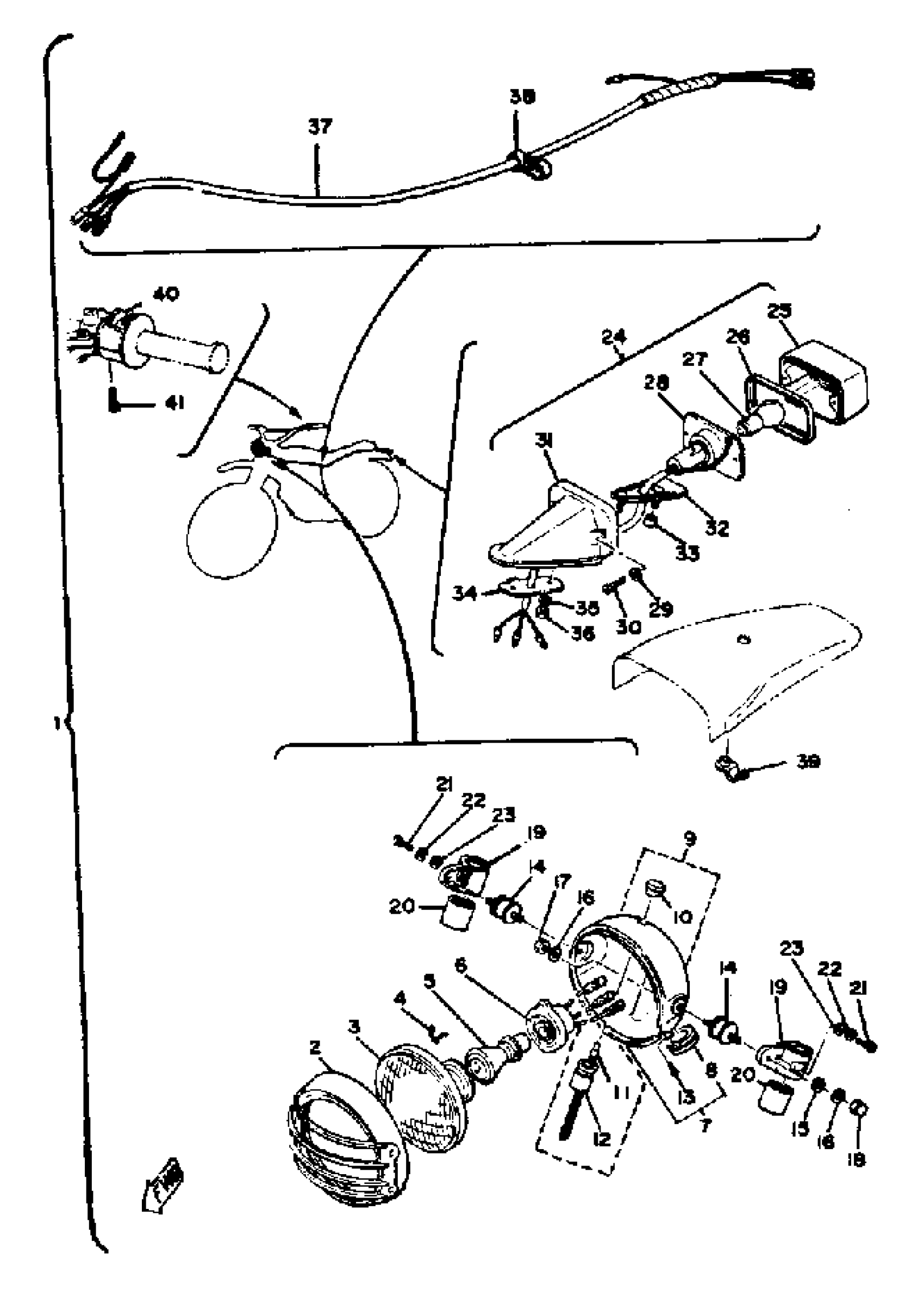

Yamaha TT500G (TT500) 1980 LIGHTING KIT (OPTIONAL PARTS) Diagram

#

Description
Price

1

TT500FGH LIGHT KIT

ACC-01100-63-00

Unavailable

2

. RIM, HEADLIGHT

493-84115-60-00

Unavailable

3

. LENS ASSEMBLY

434-84120-60-00

Unavailable

4

SPRING, REFLECTOR SET

195-84324-00-00

$6.99

5

BULB,HEAD LAMP(6V35/35W)

214-84114-60-00

$23.99

6

. UNAVAILABLE IN PRICE BOOK (434-84112-60)

434-84112-61-00

Unavailable

7

BODY ASSEMBLY, HEADLIGHT

(434-84130-61-33)

Unavailable

8

GROMMET (L)

150-84153-00-00

$19.99

9

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

10

BODY, PILOT LIGHT

256-84357-61-00

Unavailable

11

BULB,METER(6V1.5W)

104-83517-10-00

$8.99

12

. SOCKET CORD ASSEMBLY 2

214-84150-61-00

Unavailable

13

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

14

BOLT, SPECIAL

(1K7-84137-60-00)

Unavailable

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

NUT(6L2)

95333-08600-00

Unavailable

18

NUT, CROWN

95303-08800-00

Unavailable

19

STAY, HEADLIGHT 1

(1K7-84118-60-33)

Unavailable

20

DAMPER, HDLT STAY

(1K7-84136-61-00)

Unavailable

21

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

TAILLIGHT ASSEMBLY

434-84500-64-00

Unavailable

25

LENS, TAIL LAMP

434-84521-69-00

Unavailable

26

RIM,TAILLIGHT

5AU-83323-01-00

Unavailable

27

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

28

. CORD, TAILLIGHT

434-84517-61-00

Unavailable

29

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

30

. SCREW, LENS FITTING

434-84524-61-00

Unavailable

31

. BRACKET, TAILLIGHT

434-84519-64-00

Unavailable

32

TAILLIGHT ASSEMBLY

434-84500-64-00

Unavailable

33

COLLAR

(434-84557-60-00)

Unavailable

34

WASHER, SPECIAL

(434-84525-01-00)

Unavailable

35

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

NUT, HEXAGON (663)

95380-05600-00

Unavailable

37

WIRE HARNESS ASSEMBLY

(2Y0-82590-90-00)

Unavailable

38

CLAMP KIT

(583-90274-00-00)

Unavailable

39

CLAMP

(90462-08036-00)

Unavailable

40

SWITCH, HANDLE 3

(1T1-83973-00-00)

Unavailable

41

SCREW, PAN HEAD

98580-05020-00

Unavailable
