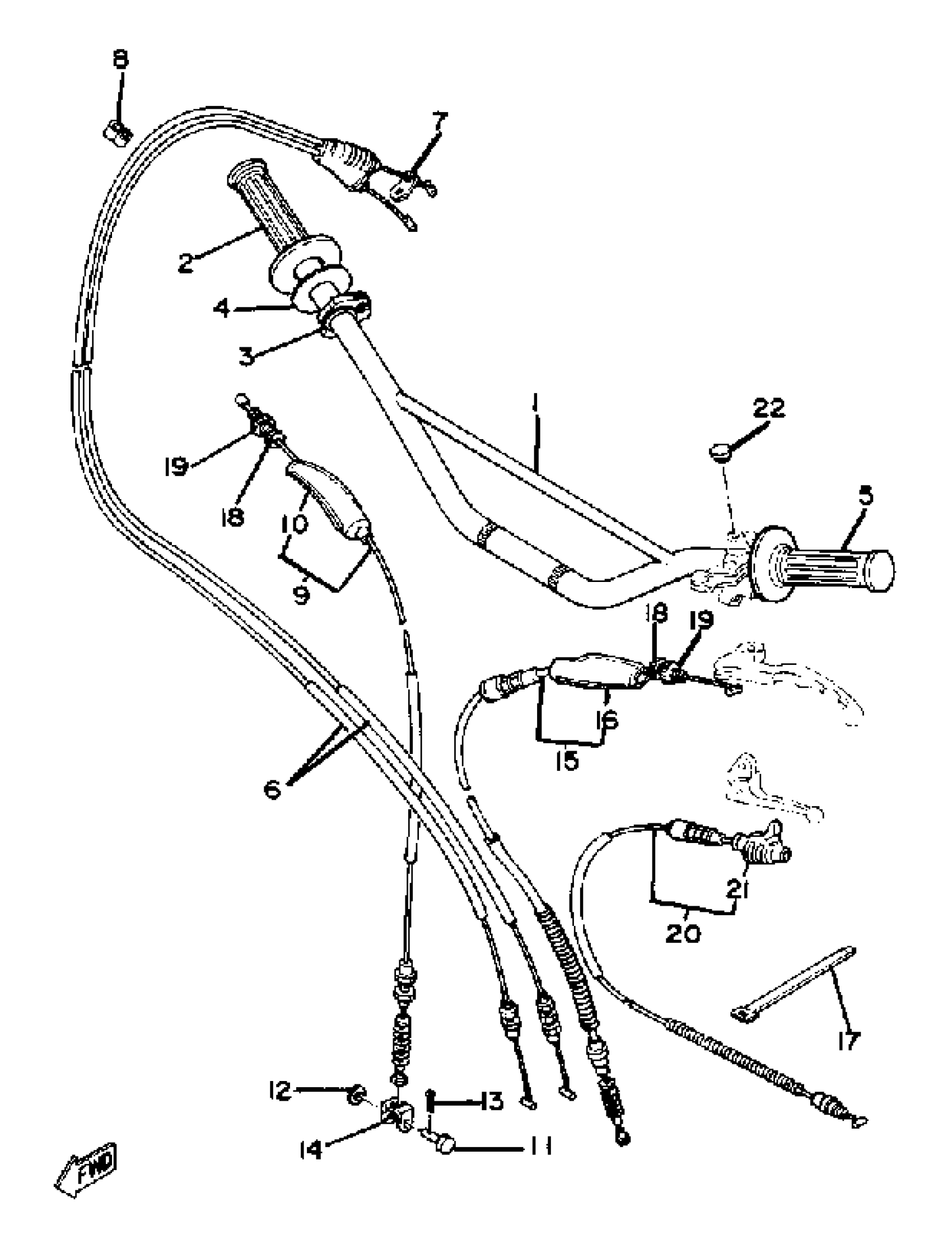

Yamaha TT500G (TT500) 1980 HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLE

2A8-26111-00-00

$129.99

2

GRIP (R.H)

583-26242-00-00

$36.99

3

TUBE, THRTL GUIDE

2H0-26243-00-00

Unavailable

4

RING, LEAF

1W1-26249-00-00

Unavailable

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

6

THROTTLE CABLE ASSY

583-26301-01-00

$73.99

7

WASHER

583-26398-00-00

Unavailable

8

CLIP, WIRE 2072639100

90468-15009-00

Unavailable

9

CABLE, BRAKE

1W1-26341-01-00

Unavailable

10

COVER, LEVER

498-26372-00-00

Unavailable

11

PIN W/HOLE 307181180000

90240-08013-00

$8.49

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

PIN, COTTER

91490-20025-00

$1.99

14

JOINT, WIRE

156-26347-00-00

$8.99

15

CABLE, CLUTCH (1100MM)

583-26335-01-00

Unavailable

16

COVER, LEVER

498-26372-00-00

Unavailable

17

BAND

341-26397-01-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

NUT

90179-08030-00

Unavailable

20

. CABLE, STARTER 1 (800MM)

583-26331-00-00

Unavailable

21

COVER, DECOMPRESSION WIRE

583-26352-00-00

Unavailable

22

PLUG (341-26329-00)

90338-09012-00

Unavailable
