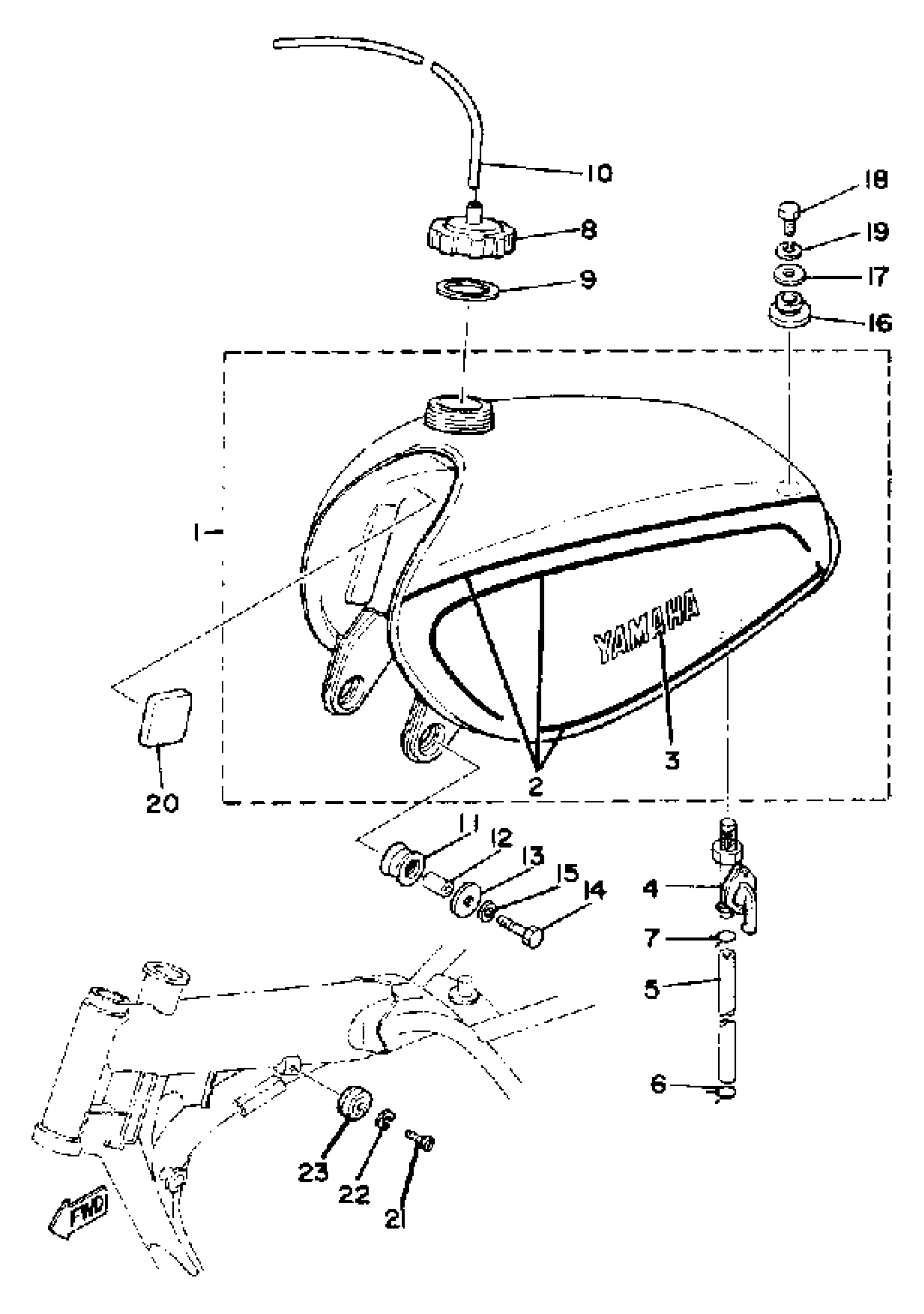

Yamaha TT500G (TT500) 1980 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK (NEW WHITE)

(2Y0-24110-00-02)

Unavailable

2

GRAPHIC SET

(2Y0-24240-00-00)

Unavailable

3

EMBLEM, YAMAHA(4GA)

99221-00140-00

$4.46

4

FUEL COCK ASSY

322-24500-02-00

$92.99

5

HOSE (L210)

90445-110F5-00

$15.99

6

CLIP

90467-100A1-00

$7.49

7

CLIP(1JH)

90467-11106-00

$3.76

8

BODY, CAP

2A6-24611-00-00

Unavailable

9

PACKING, CAP

1W1-24612-00-00

$9.99

10

HOSE (L1500)

90445-090F6-00

$31.99

11

GROMMET (583 FUEL TANK)

90480-22177-00

$18.99

12

COLLAR(1NL)

90387-086N4-00

$9.49

13

WASHER, PLATE

90201-06086-00

$7.49

14

BOLT, HEXAGON

97017-06030-00

$3.61

15

WASHER, SPRING

92995-06100-00

Unavailable

16

DAMPER, FUEL TANK (434)

90480-22054-00

Unavailable

17

WASHER, PLATE

90209-08150-00

Unavailable

18

BOLT(JA9)

90101-08691-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

DAMPER, LOCATING 1

583-24181-00-00

Unavailable

21

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

DAMPER, TANK LOCATING

583-24182-00-00

Unavailable
