FRONT FORK

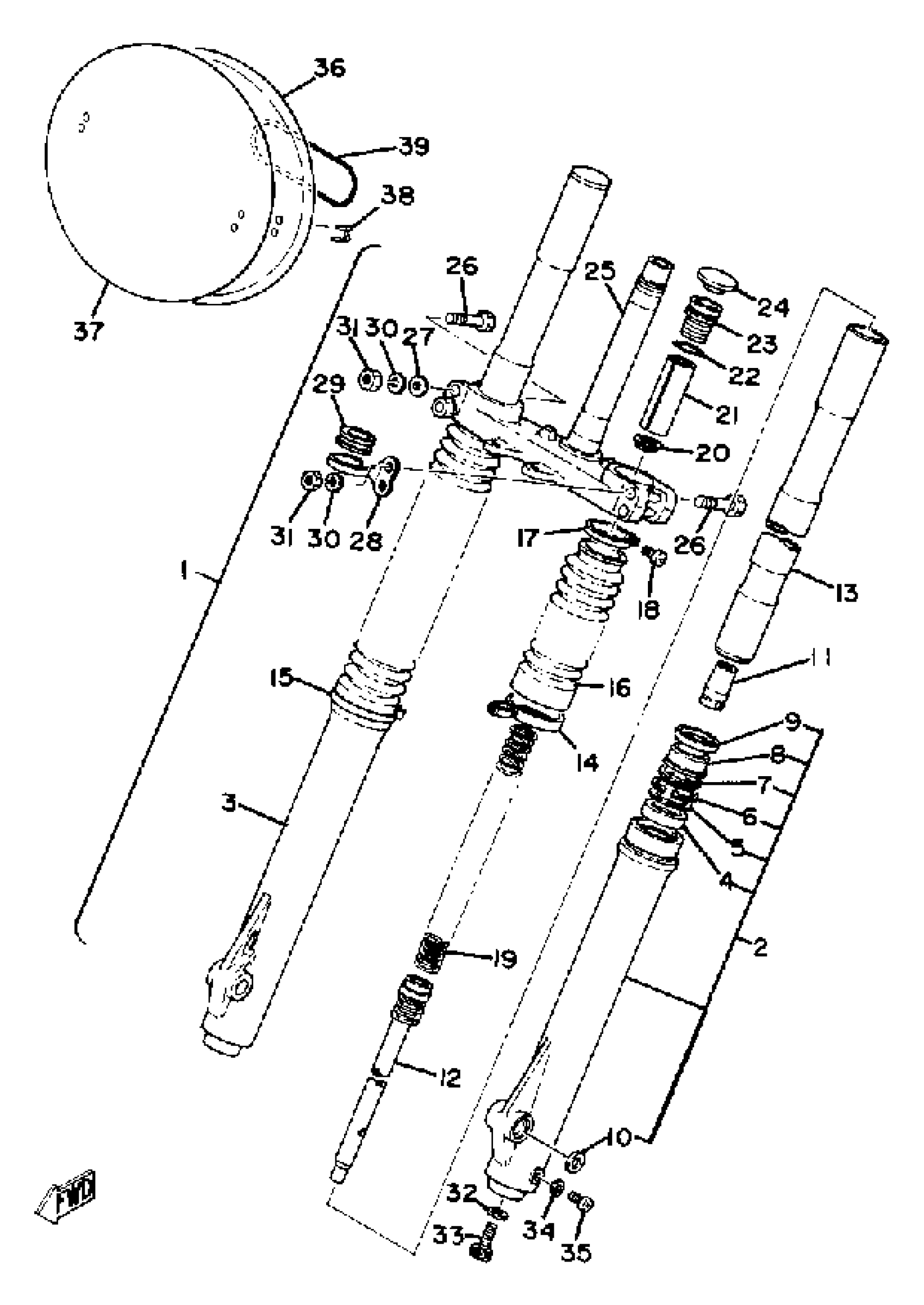

Yamaha TT500G (TT500) 1980 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY
(2Y0-23101-00-00)
Unavailable
2
TUBE, OUTER 1
(2W6-23126-00-00)
Unavailable
3
TUBE, OUTER 2
(2W6-23136-00-00)
Unavailable
5
WASHER, OIL SEAL
(509-23146-L0-00)
Unavailable
6
.. CLIP, OIL SEAL
1W1-23156-L0-00
Unavailable
7
.. RING, SNAP
1W1-23153-L0-00
Unavailable
9
.. COVER, DUST SEAL
99999-01510-00
Unavailable
10
.. CAP, FRONT FORK
1W1-23168-L0-00
Unavailable
11
SPINDLE, TAPER
(2Y0-23173-00-00)
Unavailable
12
CYLINDER, FRTFRK
(2Y0-23170-00-00)
Unavailable
13
TUBE, INNER 1
(2Y0-23124-00-00)
Unavailable
14
HOLDER, CABLE 1
1W1-23318-L0-00
Unavailable
15
BAND
509-23489-L0-00
Unavailable
16
BOOT
2N6-23191-00-00
Unavailable
17
BAND, BOOT
341-92090-60-00
Unavailable
18
SCREW
509-23194-L0-00
Unavailable
19
SPRING, FRONT FORK
(2Y0-23141-00-00)
Unavailable
20
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
21
SPACER
(1T2-23118-00-00)
Unavailable
22
GASKET
240-23114-00-00
Unavailable
23
CAP BOLT, FRONT FORK
1U6-23111-M1-00
Unavailable
24
CAP, FRONT FORK
1U6-23168-M1-00
Unavailable
25
UNDER BRACKET
(2Y0-23340-00-33)
Unavailable
26
BOLT (1E6)
90101-08340-00
Unavailable
27
.. WASHER, PLATE
92990-08600-00
Unavailable
28
. HOLDER, CABLE
1W1-23317-01-00
Unavailable
29
GUIDE, WIRE
1W1-23389-00-00
Unavailable
30
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
31
NUT(6L2)
95333-08600-00
Unavailable
32
GASKET
509-23158-L0-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
34
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
35
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
36
PLATE, NUMBER
583-23485-00-00
Unavailable
37
EMBLEM
322-23395-00-00
Unavailable
38
STAY, PLATE
431-23486-02-00
Unavailable
39
O-RING (3.0-69.0)
93210-69355-00
Unavailable
