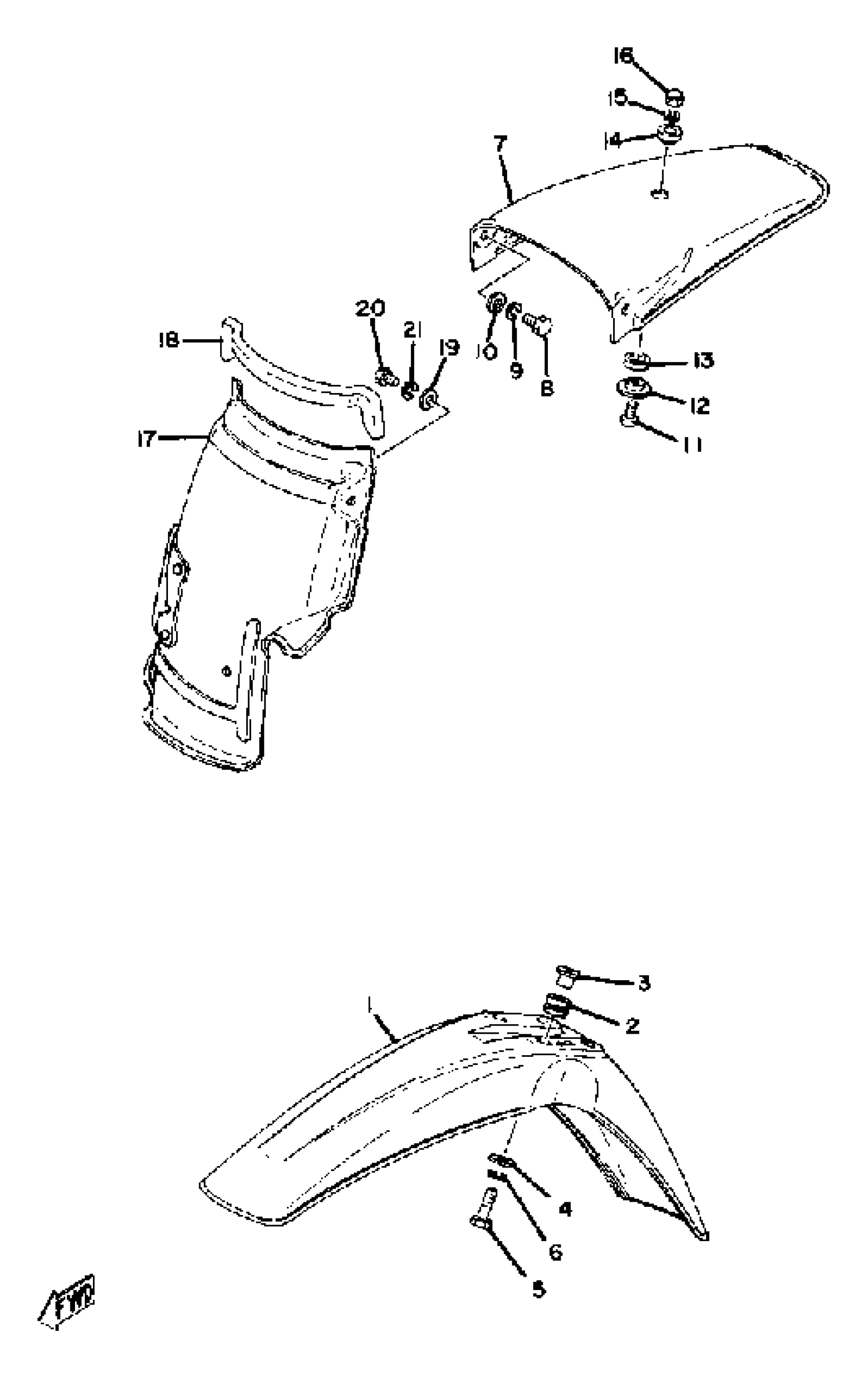

Yamaha TT500G (TT500) 1980 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3H6-21511-00-00

Unavailable

2

GROMMET

90480-14198-00

$9.49

3

COLLAR

90387-06158-00

$8.49

4

WASHER, PLATE

90201-06380-00

$0.60

5

BOLT, HEXAGON

97017-06030-00

$3.61

6

WASHER, SPRING

92995-06100-00

Unavailable

7

FENDER, REAR

583-21611-00-36

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

11

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

12

WASHER, SPECIAL SHAPE

90209-06087-00

Unavailable

13

DAMPER 2

(322-21639-00-00)

Unavailable

14

DAMPER, FENDER

322-21541-00-00

$7.99

15

WASHER, SPRING

92995-06100-00

Unavailable

16

NUT (J17)

95380-06800-00

Unavailable

17

MUD GUARD COMP.

1T1-21620-00-00

Unavailable

18

DAMPER

583-21746-00-00

Unavailable

19

WASHER, PLATE

90201-06380-00

$0.60

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

21

WASHER, SPRING

92995-06100-00

Unavailable
