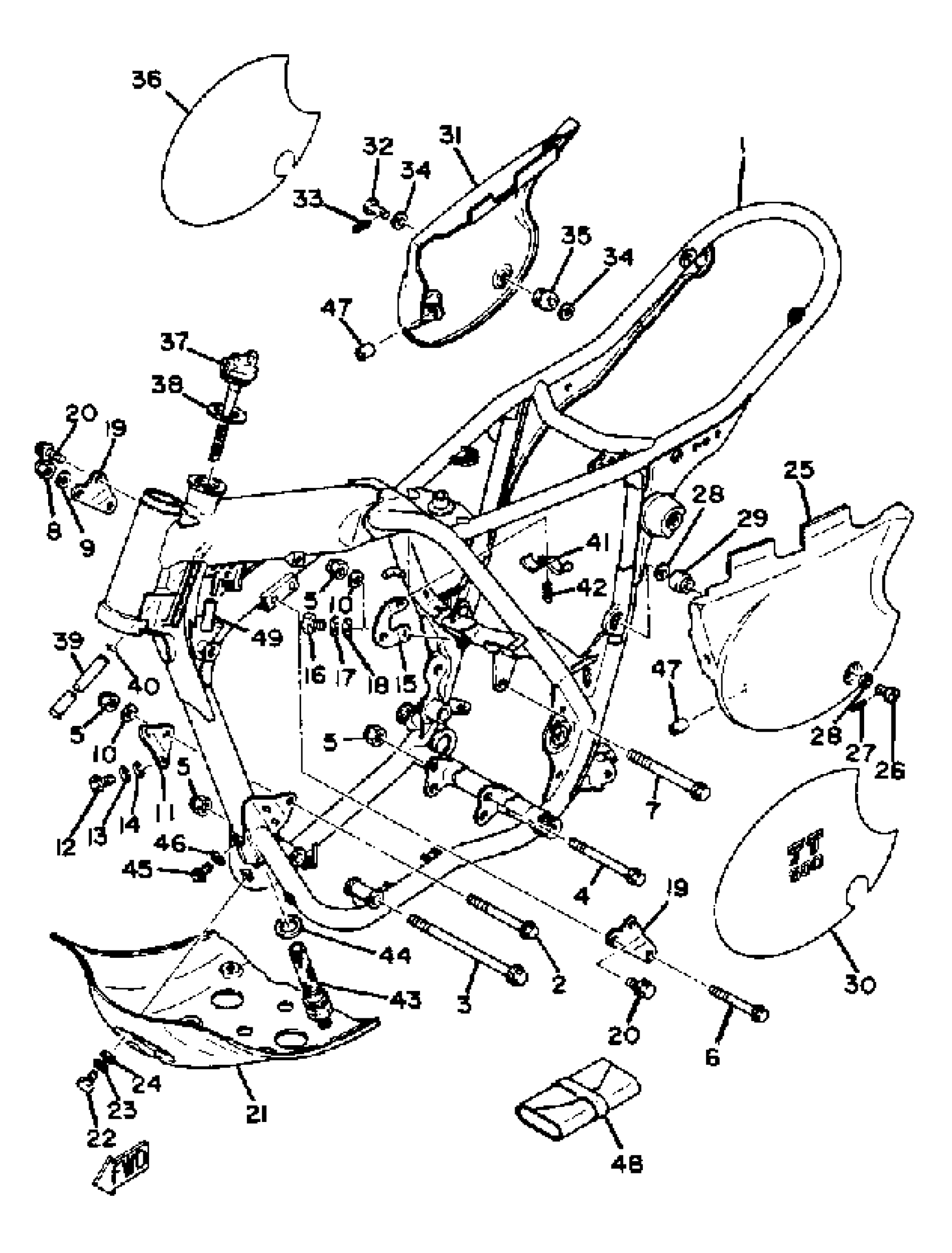

Yamaha TT500G (TT500) 1980 FRAME Diagram
#
1
FRAME
(2Y0-21110-00-33)
Unavailable
6
BOLT, FLANGE
95814-08080-00
Unavailable
7
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
9
WASHER, CONICAL SPRING
90208-08011-00
Unavailable
11
STAY, ENGINE 3
583-21316-00-00
Unavailable
14
.. WASHER, PLATE
92990-08600-00
Unavailable
15
STAY, ENGINE 4
1T1-21317-00-00
Unavailable
18
.. WASHER, PLATE
92990-08600-00
Unavailable
19
STAY,ENGINE 2
583-21315-00-00
Unavailable
19
STAY,ENGINE 2
583-21315-00-00
Unavailable
20
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
21
PROTECTOR, ENGINE
1T1-21471-01-00
Unavailable
22
BOLT(8CP)
97017-06014-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
WASHER, PLATE
90201-06020-00
Unavailable
25
COVER, SIDE 1
2Y0-21711-10-33
Unavailable
26
KNOB, SIDE COVER
583-21714-00-00
Unavailable
27
PIN, SPRING (583)
91609-25018-00
Unavailable
28
WASHER, PLATE
90201-06095-00
Unavailable
29
DAMPER, SIDE COVER
583-21747-00-00
Unavailable
30
EMBLEM 6
2Y0-21786-20-00
Unavailable
31
COVER, SIDE 2
(2Y0-21721-10-33)
Unavailable
32
KNOB, SIDE COVER
583-21714-00-00
Unavailable
33
PIN, SPRING (583)
91609-25018-00
Unavailable
34
WASHER, PLATE
90201-06095-00
Unavailable
35
DAMPER, SIDE COVER
583-21747-00-00
Unavailable
36
EMBLEM 7
(2Y0-21787-10-00)
Unavailable
37
BODY, CAP
2J2-21771-10-00
Unavailable
38
GASKET (583 OIL TANK CAP)
90430-27124-00
Unavailable
39
HOSE (L200)
90445-11289-00
Unavailable
40
CLIP
90467-100A1-00
Unavailable
41
CLAMP, DAMPER
(583-21755-00-00)
Unavailable
42
SCREW, TAPPING(6U1)
97780-50610-00
Unavailable
43
NET, OIL TANK FILTER
583-21756-00-00
Unavailable
44
GASKET (583 OIL TANK)
90430-22123-00
Unavailable
45
BOLT, FLANGE
95817-08012-00
Unavailable
46
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
47
HOSE (L70)
90445-112E0-00
Unavailable
48
TOOL KIT (1E6-28100-10)
1JN-W2810-00-00
Unavailable
49
HOSE
(90446-07114-00)
Unavailable
