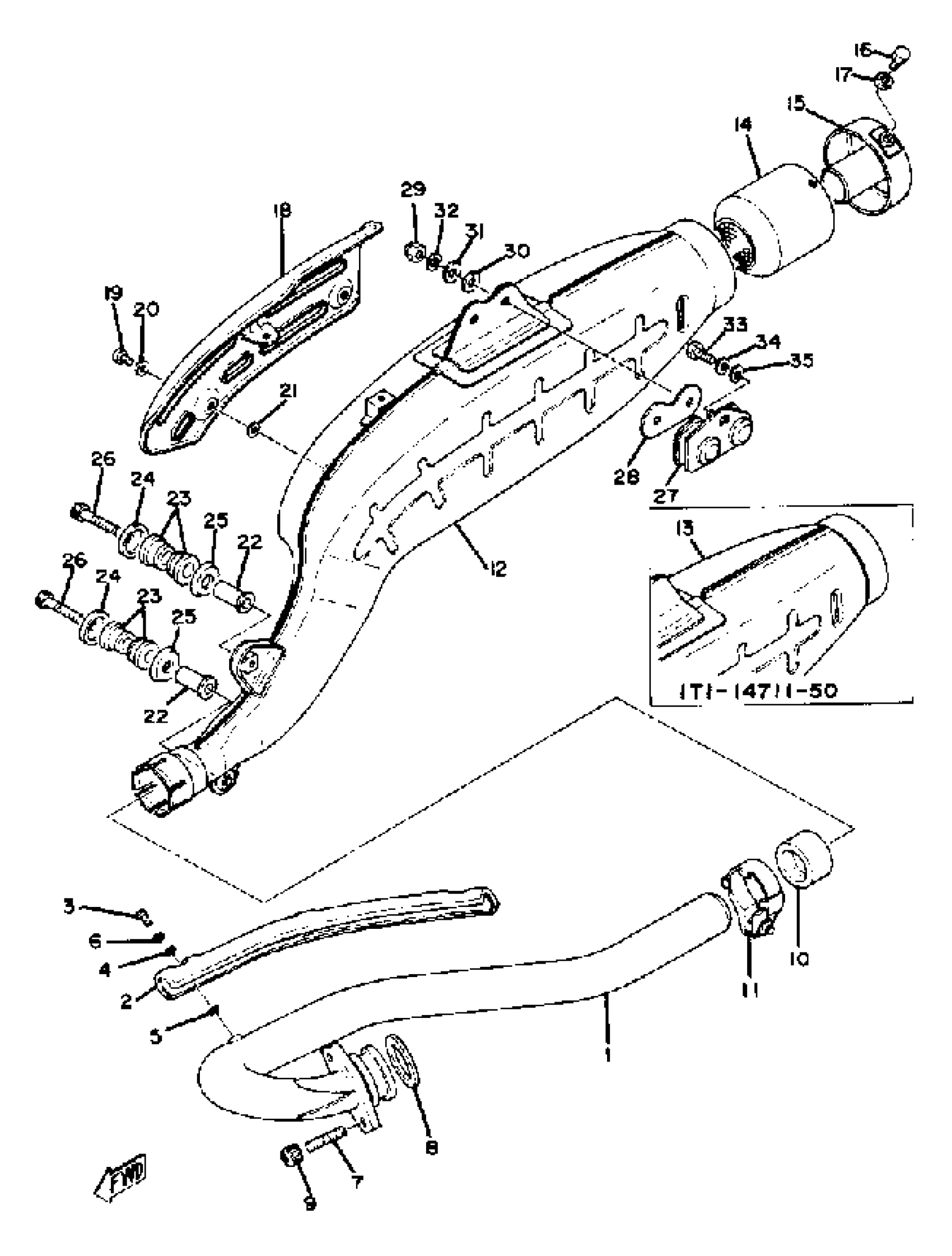

Yamaha TT500G (TT500) 1980 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

1T1-14611-03-00

Unavailable

2

PROTC, EXHAUST PIPE

1T1-14628-00-00

Unavailable

3

SCREW, BINDING

98907-06010-00

$1.65

4

WASHER, PLATE(3MB)

90202-05187-00

$1.38

5

WASHER, PROTECTOR

3WX-14766-00-00

$16.49

6

WASHER, WAVE(3RW)

90206-06090-00

$8.49

7

BOLT, STUD 3

95617-08615-00

$5.60

8

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

9

NUT (371)

90179-08004-00

$9.49

10

GASKET, MUFFLER

3EG-14714-00-00

$72.99

11

BAND, SILENCER

1T1-14788-00-00

Unavailable

12

MUFFLER L

(1T1-14711-32-00)

Unavailable

13

MUFFLER L

(1T1-14711-50-00)

Unavailable

14

ARRESTER, SPARK

(1E6-14786-01-00)

Unavailable

15

PIPE, OUTLET

1T1-14752-01-00

Unavailable

16

BOLT(3JP)

97017-06010-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

PROTECTOR, MUFF 1

1T1-14718-00-00

Unavailable

19

SCREW, BINDING

98907-06010-00

$1.65

20

WASHER, PLATE(3MB)

90202-05187-00

$1.38

21

WASHER, PROTECTOR

3WX-14766-00-00

$16.49

22

COLLAR

90387-08572-00

Unavailable

23

DAMPER, MUFFLER

1T1-14747-01-00

Unavailable

24

WASHER

90209-08008-00

Unavailable

25

WASHER, SPEC''L SHAP

90209-12163-00

Unavailable

26

BOLT, SOCKET

91317-08050-00

Unavailable

27

STAY, MUFFLER

1T1-14791-02-00

Unavailable

28

GASKET,SILENCER

1T1-14755-02-00

Unavailable

29

NUT, U

95617-08100-00

Unavailable

30

WASHER, PLATE

90202-08103-00

Unavailable

31

WASHER (853)

90201-08326-00

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

33

BOLT, HEXAGON

97013-08020-00

Unavailable

34

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

35

WASHER (1T1)

90201-08649-00

Unavailable
