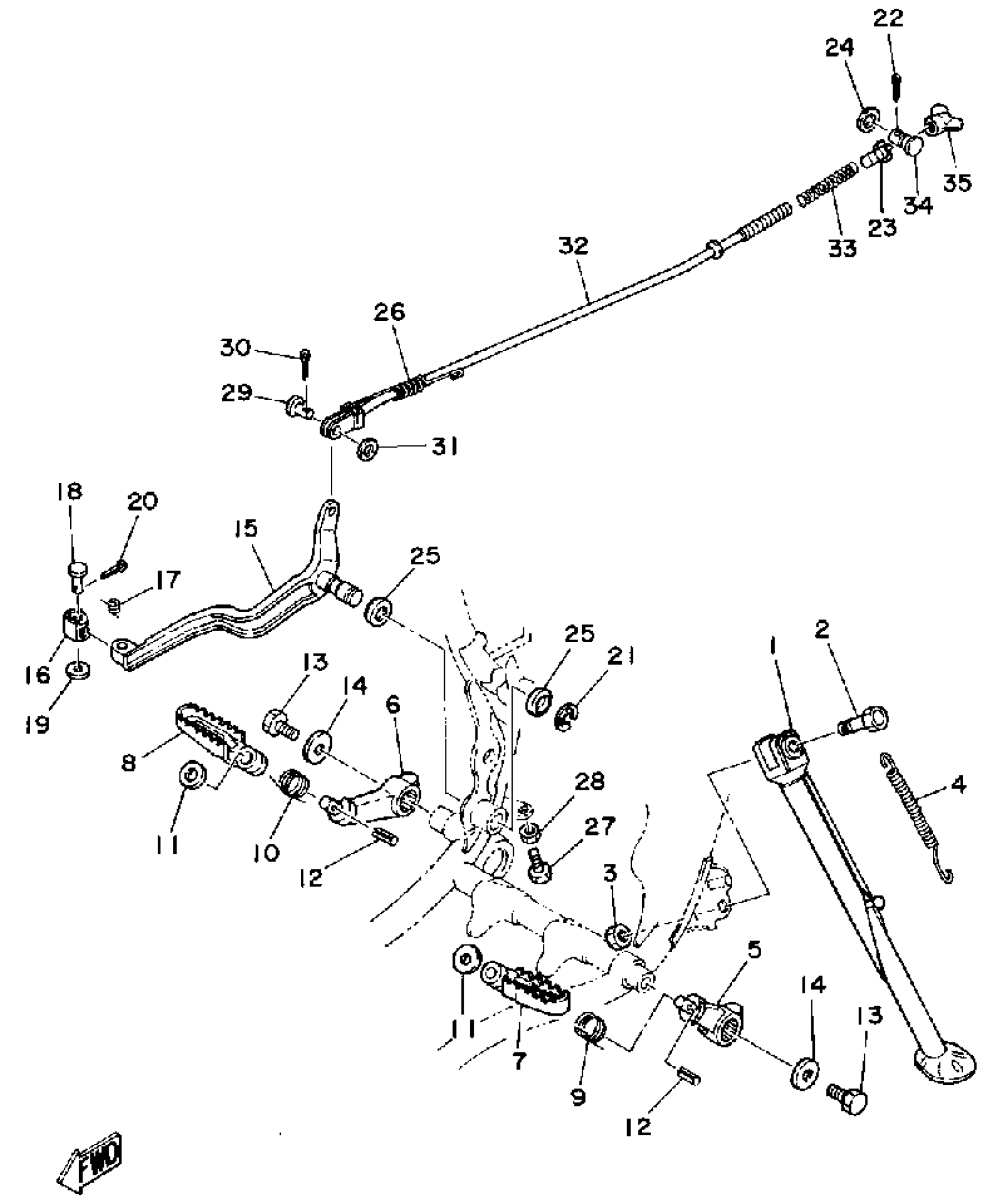

Yamaha TT500F (TT500) 1979 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

2Y0-27311-00-33

Unavailable

2

BOLT

90109-10473-00

$8.49

3

NUT, U

90185-10037-00

$9.49

4

SPRING, TENSION (498)

90507-29021-00

$23.99

5

BRACKET, FOOTREST 1

2Y0-27412-00-33

Unavailable

6

BRACKET, FOOTREST 2

2Y0-27422-00-33

Unavailable

7

FOOTREST 1

583-27411-00-00

Unavailable

8

FOOTREST 2

583-27421-00-00

Unavailable

9

SPRING, TORSION

90508-26277-00

Unavailable

10

SPRING, TORSION

90508-26276-00

Unavailable

11

WASHER, PLATE (583)

90201-12631-00

$9.49

12

PIN, SPRING (6H4)

91690-30020-00

Unavailable

13

BOLT,HEXAGON

97017-10016-00

Unavailable

14

WASHER (583)

90201-10639-00

$10.49

15

PEDAL, BRAKE

2Y0-27211-00-R4

Unavailable

16

PEDAL, BRAKE

55V-27242-00-00

Unavailable

17

SPRING, TORSION (1W2)

90508-14352-00

Unavailable

18

PIN, COTTER (1W2)

91701-06022-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

CIRCLIP, E-TYPE

99001-15600-00

Unavailable

22

PIN, COTTER(6L5)

91490-25030-00

Unavailable

23

SEAT, SPRING

1W2-27239-00-00

Unavailable

24

WASHER, PLATE (583)

90201-12631-00

$9.49

25

COVER, DUST

498-27235-00-00

Unavailable

26

SPRING, TENSION

90506-20128-00

Unavailable

27

BOLT, HEXAGON

97017-06020-00

Unavailable

28

NUT(650)

95380-06700-00

Unavailable

29

PIN, CLEVIS

90240-08051-00

Unavailable

30

PIN, COTTER

91490-20025-00

Unavailable

31

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

32

ROD, BRAKE

2Y0-27231-00-00

Unavailable

33

SPRING, (180-27236-00)

90501-10245-00

Unavailable

34

PIN, CLEVIS

1W2-27237-00-00

Unavailable

35

NUT (25K)

90179-06411-00

Unavailable
