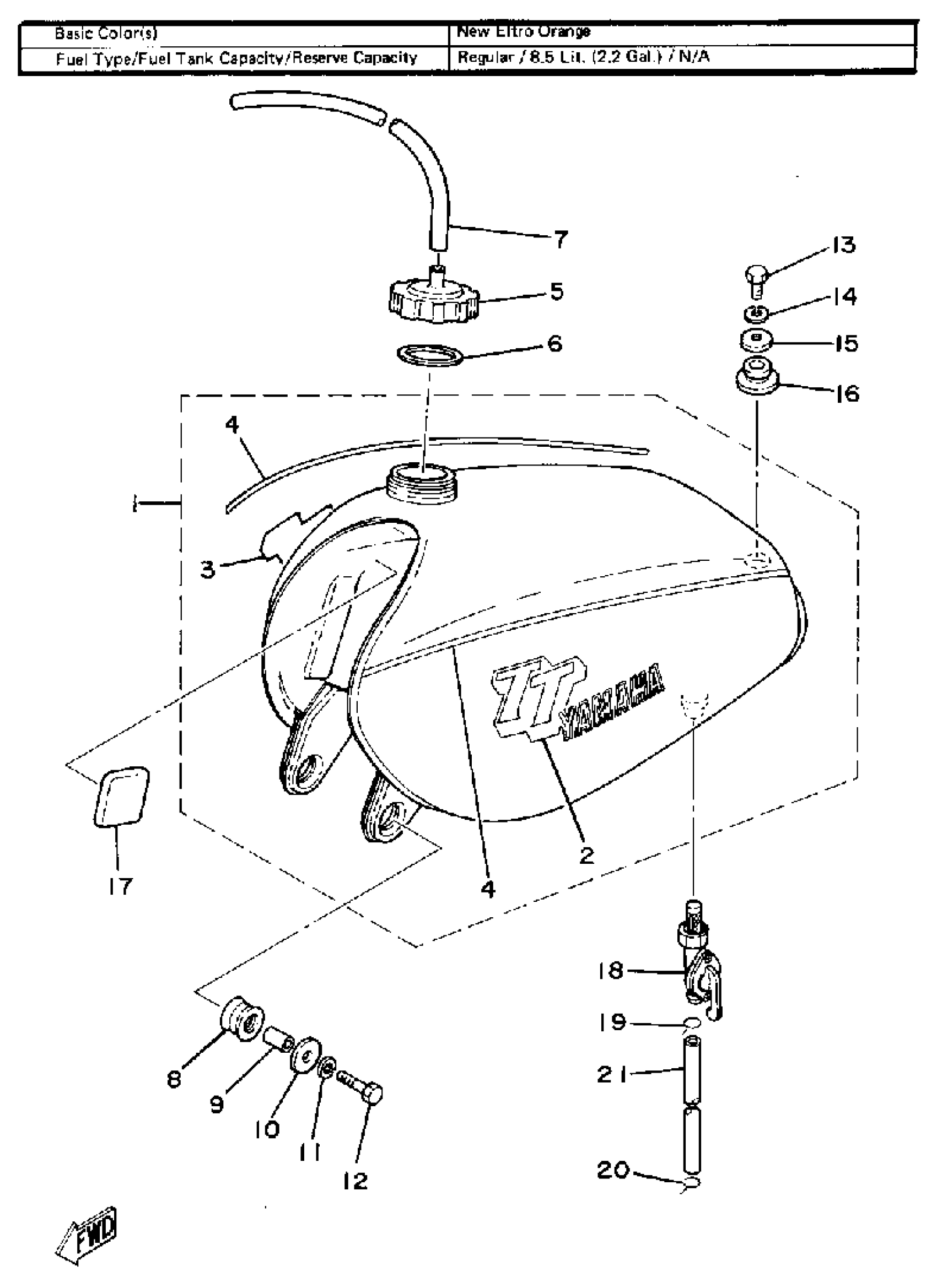

Yamaha TT500F (TT500) 1979 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(2Y0-24110-00-01)

Unavailable

2

EMBLEM 1

(2Y0-24161-00-00)

Unavailable

3

EMBLEM 2

(2Y0-24162-00-00)

Unavailable

4

EMBLEM 3

1T1-24163-00-00

Unavailable

5

BODY, CAP

2A6-24611-00-00

Unavailable

6

PACKING, CAP

1W1-24612-00-00

$9.99

7

HOSE (L1500)

90445-090F6-00

$31.99

8

GROMMET (583 FUEL TANK)

90480-22177-00

$18.99

9

COLLAR(1NL)

90387-086N4-00

$9.49

10

WASHER, PLATE

90201-06086-00

$7.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

BOLT(JA9)

90101-08691-00

$4.29

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

WASHER, PLATE

90209-08150-00

Unavailable

16

DAMPER, FUEL TANK (434)

90480-22054-00

Unavailable

17

DAMPER, TANK LOCATING

583-24182-00-00

Unavailable

18

FUEL COCK ASSY

322-24500-02-00

Unavailable

19

CLIP(1JH)

90467-11106-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

HOSE (L210)

90445-110F5-00

Unavailable
