1979 Yamaha TT500 (TT500F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha TT500 (TT500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

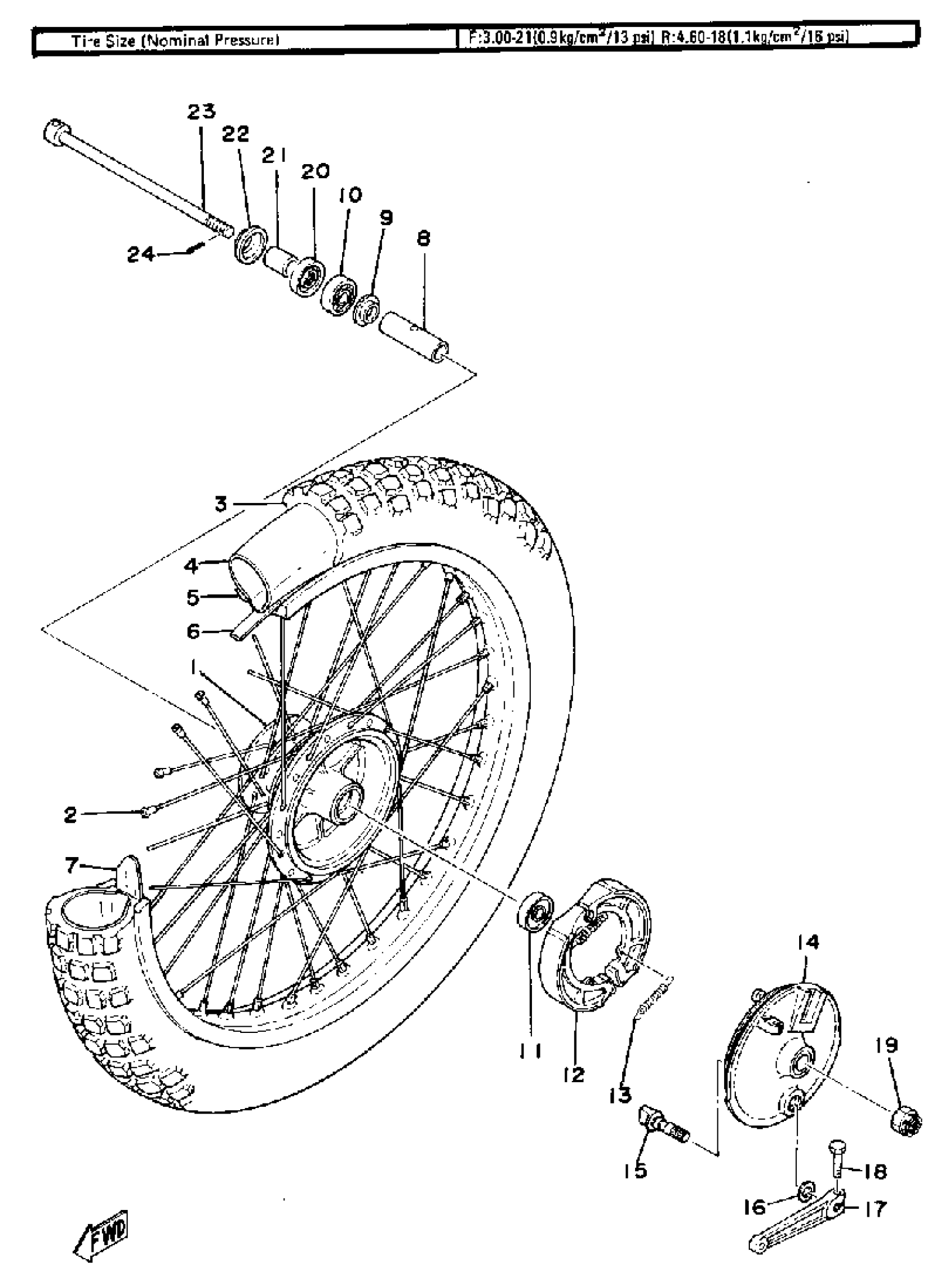

1979 Yamaha TT500 (TT500F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1K7-25111-10-98

1
Out of stock

1

SPOKE SET, INNER 2

(2W6-25179-90-00)

1
Out of stock

1

SPOKE SET, OUTER 2

(2W6-25189-90-00)

1
Out of stock

1

SPOKE SET, INNER 1

(2W6-25196-90-00)

1
Out of stock

1

SPOKE SET, OUTER 1

(2W6-25197-90-00)

1
Out of stock

2

SPOKE SET, FRONT

2W6-25104-02-00

1
Out of stock

3

300X21 DUN K190

(94130-21510-00)

1
Out of stock

4

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

5

RIM 1.60X21

94416-21326-00

1
Out of stock

6

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER

90560-15116-00

1
Out of stock

9

FLANGE, SPACER

146-25116-00-00

1
Out of stock

10

BEARING

93306-20205-00

1

$32.63

In stock

11

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

12

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

13

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

14

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

1
Out of stock

15

CAMSHAFT

23X-25151-00-00

1
Out of stock

16

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

17

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

18

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

19

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

20

OIL SEAL (20X35X7-136)

93102-20009-00

—

$9.10

In stock

21

COLLAR (34L)

90387-152J3-00

—

$18.75

In stock

22

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

23

AXLE, WHEEL

1W1-25181-01-00

—

$35.14

In stock

24

PIN, COTTER

91490-30030-00

—

$7.15

In stock
