1979 Yamaha TT500 (TT500F) Front Fork Diagram

← All diagrams

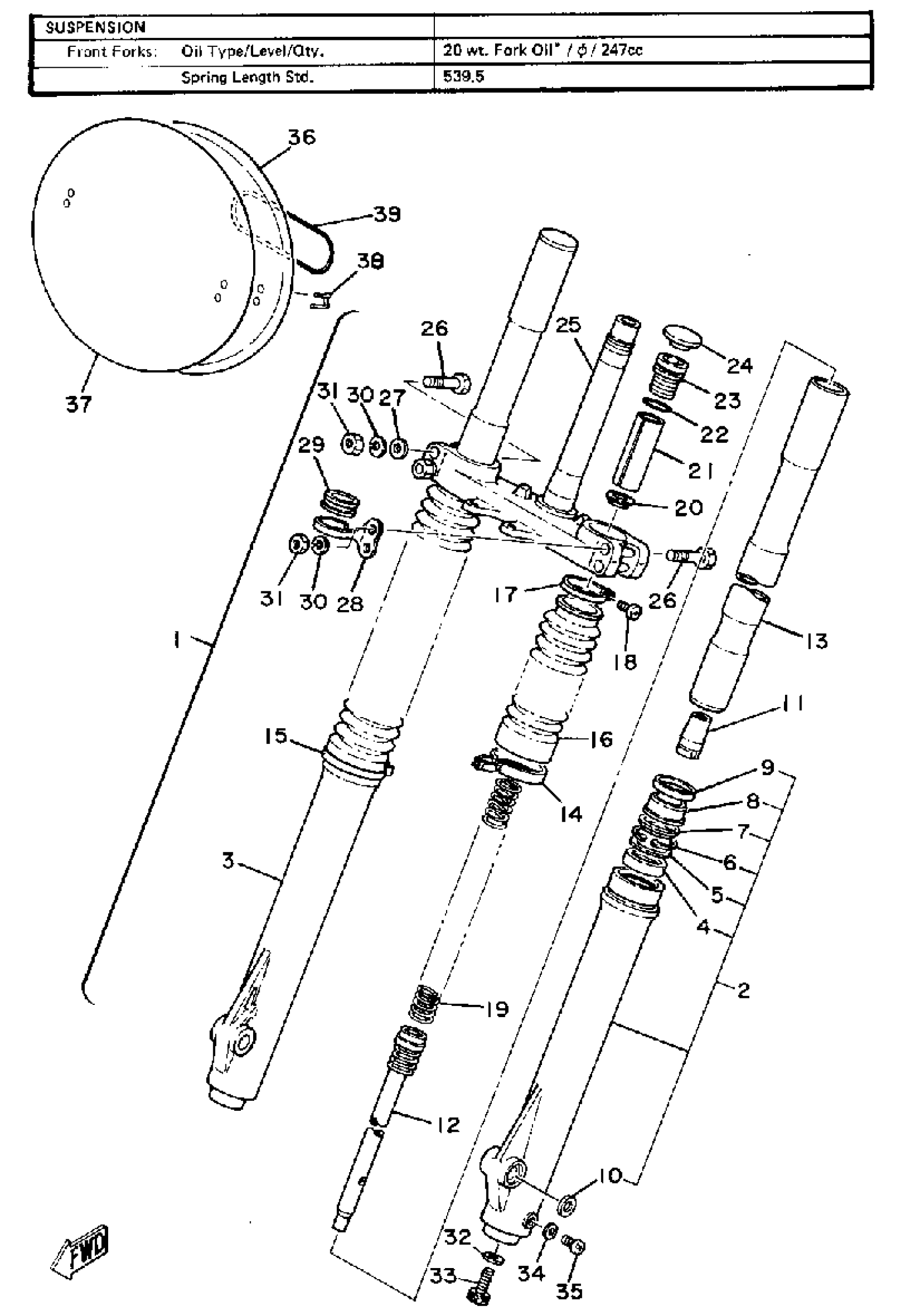

Find the part on the Front Fork diagram for your 1979 Yamaha TT500 (TT500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha TT500 (TT500F) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(2Y0-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(2W6-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(2W6-23136-00-00)

1
Out of stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

WASHER, OIL SEAL

(509-23146-L0-00)

1
Out of stock

6

.. CLIP, OIL SEAL

1W1-23156-L0-00

1
Out of stock

7

.. RING, SNAP

1W1-23153-L0-00

1
Out of stock

8

SEAL, DUST

1G8-23144-L1-00

1

$22.96

In stock

9

.. COVER, DUST SEAL

99999-01510-00

1
Out of stock

10

.. CAP, FRONT FORK

1W1-23168-L0-00

1
Out of stock

11

SPINDLE, TAPER

(2Y0-23173-00-00)

1
Out of stock

12

CYLINDER, FRTFRK

(2Y0-23170-00-00)

1
Out of stock

13

TUBE, INNER 1

(2Y0-23124-00-00)

1
Out of stock

14

HOLDER, CABLE 1

1W1-23318-L0-00

1
Out of stock

15

BAND

509-23489-L0-00

1
Out of stock

16

BOOT

2N6-23191-00-00

—

$38.80

In stock

17

BAND, BOOT

341-92090-60-00

—
Out of stock

18

SCREW

509-23194-L0-00

—

$4.12

In stock

19

SPRING, FRONT FORK

(2Y0-23141-00-00)

1
Out of stock

20

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

21

SPACER

(1T2-23118-00-00)

1
Out of stock

22

GASKET

240-23114-00-00

—

$12.27

In stock

23

CAP BOLT, FRONT FORK

1U6-23111-M1-00

—

$21.02

In stock

24

CAP, FRONT FORK

1U6-23168-M1-00

—

$7.62

In stock

25

UNDER BRACKET

(2Y0-23340-00-33)

1
Out of stock

26

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

27

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

28

. HOLDER, CABLE

1W1-23317-01-00

1
Out of stock

29

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock

30

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

31

NUT(6L2)

95333-08600-00

—

$3.20

In stock

32

GASKET

509-23158-L0-00

—

$14.34

In stock

33

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

34

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

35

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

35

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

36

PLATE, NUMBER

583-23485-00-00

1
Out of stock

37

EMBLEM

322-23395-00-00

1
Out of stock

38

STAY, PLATE

431-23486-02-00

1
Out of stock

39

O-RING (3.0-69.0)

93210-69355-00

1
Out of stock
