Description

Price

1

FENDER, FRONT

3H6-21511-00-00

Unavailable

2

GROMMET

90480-14198-00

$9.49

3

COLLAR

90387-06158-00

$8.49

4

WASHER, PLATE

90201-06380-00

$0.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

BOLT, HEXAGON

97017-06030-00

$3.61

7

FENDER, REAR

(1T1-21611-00-00)

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

11

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

12

WASHER, SPECIAL SHAPE

90209-06087-00

Unavailable

13

DAMPER 2

(322-21639-00-00)

Unavailable

14

DAMPER, FENDER

322-21541-00-00

$7.99

15

WASHER, SPRING

92995-06100-00

Unavailable

16

NUT (J17)

95380-06800-00

Unavailable

17

MUD GUARD COMP.

1T1-21620-00-00

Unavailable

18

DAMPER

583-21746-00-00

Unavailable

19

WASHER, PLATE

90201-06380-00

$0.60

20

WASHER, SPRING

92995-06100-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

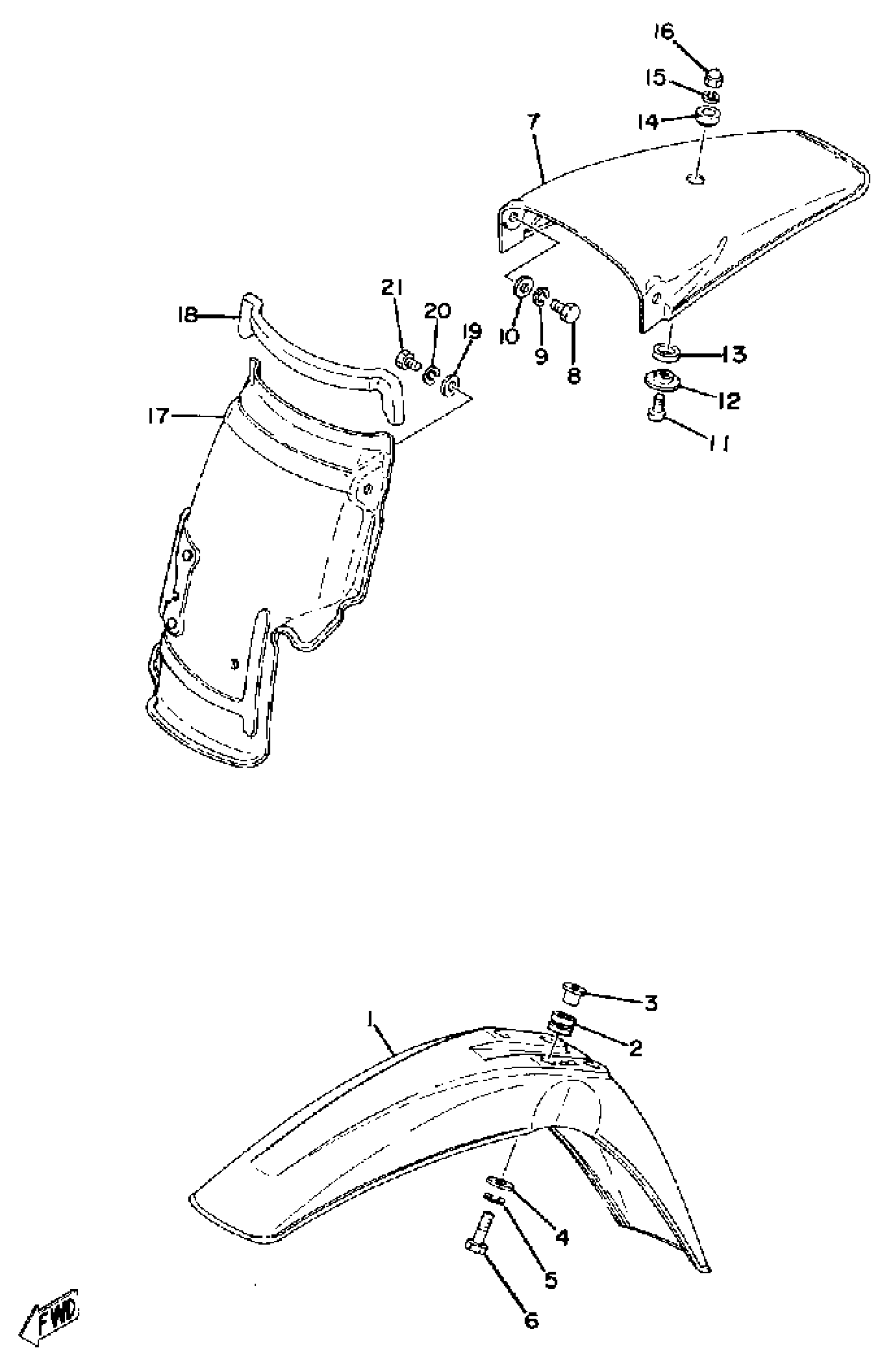

Yamaha TT500F (TT500) 1979 FRONT FENDER - REAR FENDER Diagram

FENDER, FRONT

GROMMET

COLLAR

WASHER, PLATE

WASHER, SPRING

BOLT, HEXAGON

FENDER, REAR

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE (583 REAR FENDER

SCREW, PAN HEAD(6E5)

WASHER, SPECIAL SHAPE

DAMPER 2

DAMPER, FENDER

WASHER, SPRING

NUT (J17)

MUD GUARD COMP.

DAMPER

WASHER, PLATE

WASHER, SPRING

BOLT, HEXAGON DEEP RECESS
