Description

Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

B6E-23411-00-00

$8.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

RACE, BALL 2

BP2-23412-00-00

$7.49

6

BALL

93503-16003-00

$2.72

7

RACE, BALL 1

BP2-23411-00-00

$11.49

8

COVER, BALL RACE 2

1T1-23416-00-00

Unavailable

9

NUT

90179-25004-00

$24.99

10

CROWN, HANDLE

(583-23435-01-98)

Unavailable

11

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

12

BOLT, HEXAGON

97013-08055-00

$2.55

13

WASHER, PLATE 1562722600

90201-08083-00

$9.49

14

NUT, U

95617-08100-00

$9.49

15

HOLDER, CABLE

(1T1-23317-00-00)

Unavailable

16

GUIDE, WIRE

1W1-23389-00-00

Unavailable

17

CAP, BOLT

583-23469-00-00

Unavailable

18

HOLDER, HANDLE UPPER

1E6-23441-00-00

Unavailable

19

GUIDE, CABLE

(583-23389-00-00)

Unavailable

20

BOLT, FLANGE

95814-08040-00

Unavailable

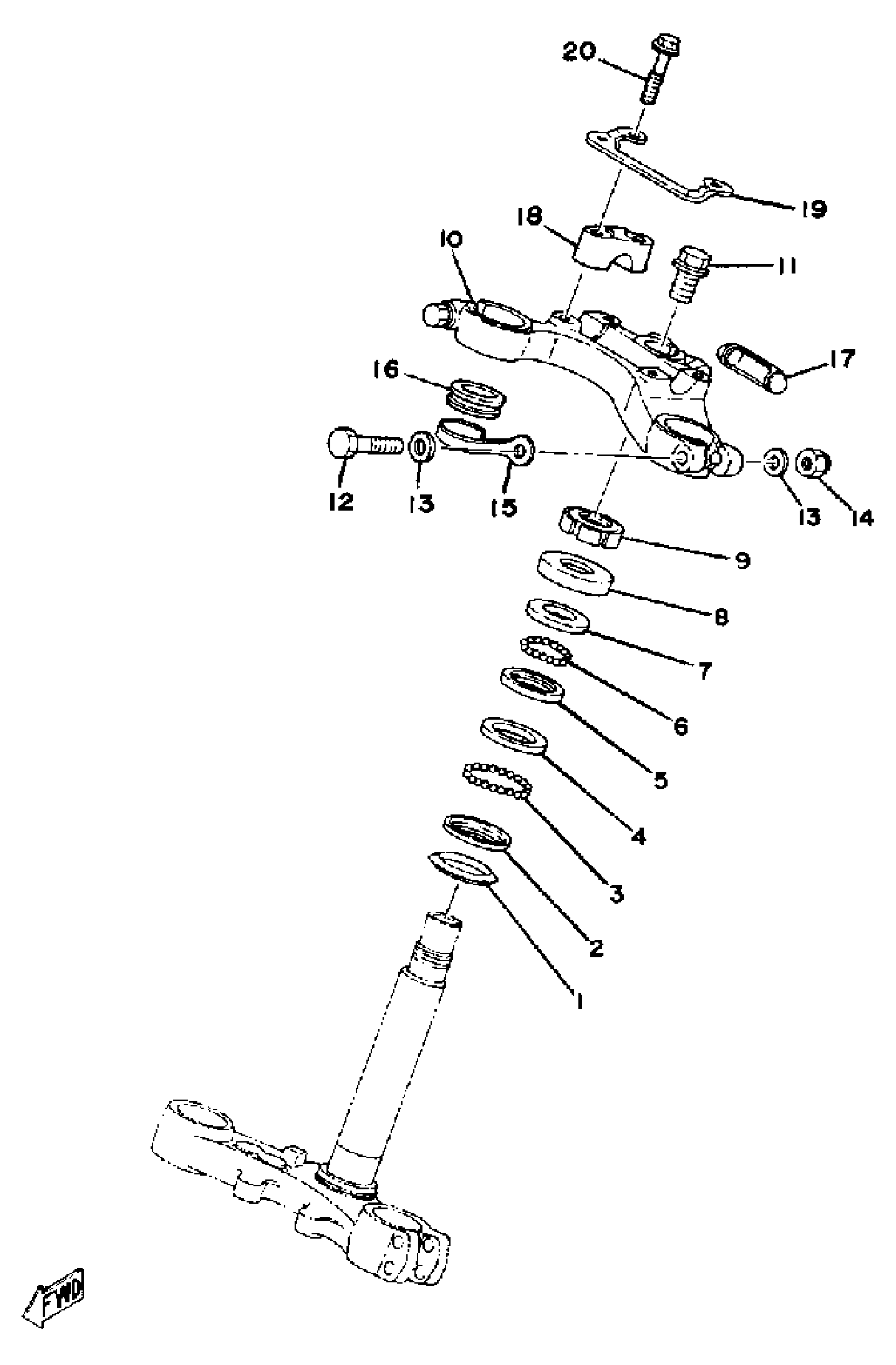

Yamaha TT500E (TT500) 1978 STEERING Diagram

SEAL, DUST

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE 2

NUT

CROWN, HANDLE

BOLT, WASHER BASED HEAD (10V)

BOLT, HEXAGON

WASHER, PLATE 1562722600

NUT, U

HOLDER, CABLE

GUIDE, WIRE

CAP, BOLT

HOLDER, HANDLE UPPER

GUIDE, CABLE

BOLT, FLANGE
