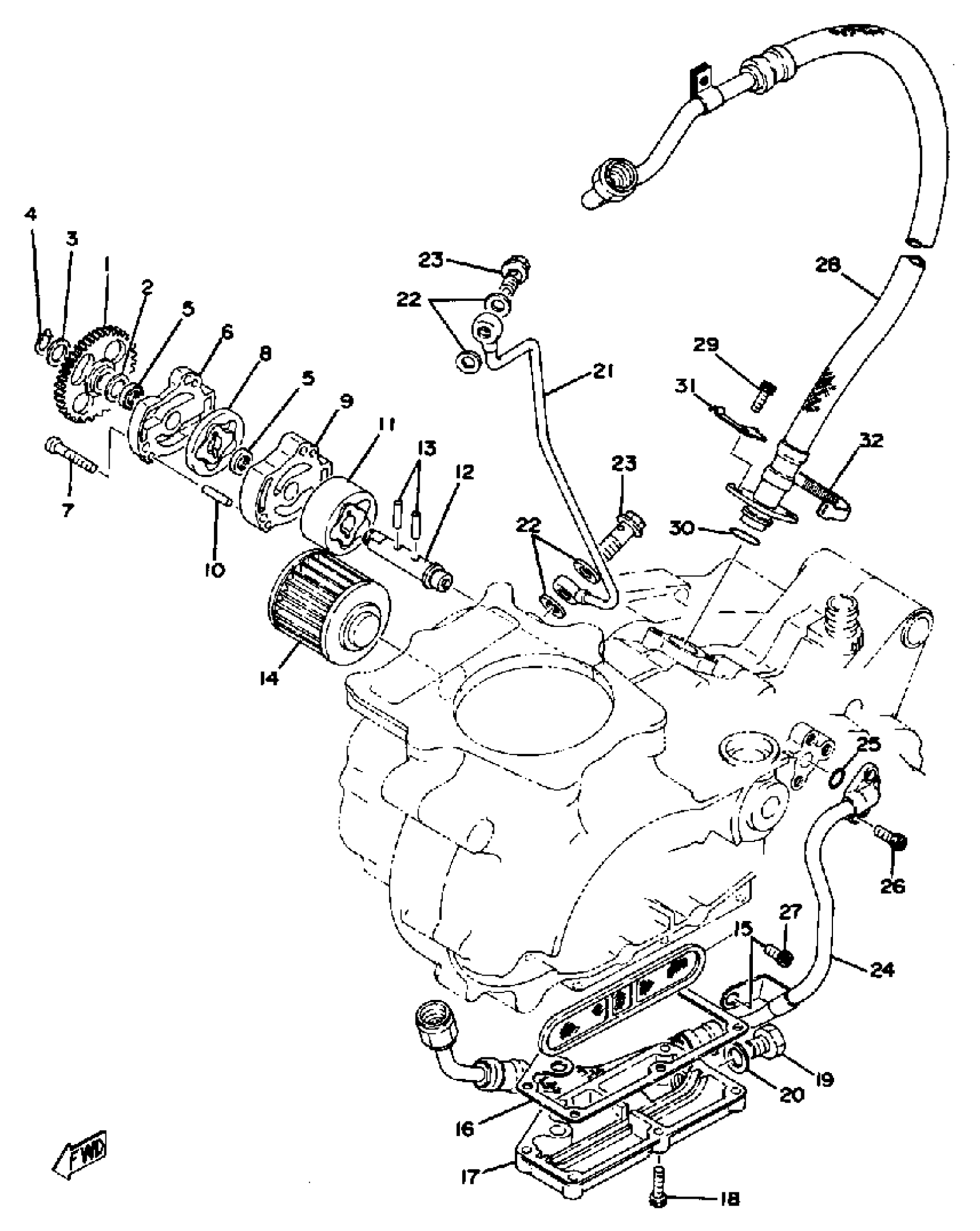

Yamaha TT500E (TT500) 1978 OIL PUMP-OIL FILTER Diagram

#

Description
Price

1

GEAR, DRIVEN

583-13325-00-00

Unavailable

2

WASHER PLATE 164185720000

90201-12166-00

$9.49

3

WASHER, PLAIN(735)

90201-10119-00

Unavailable

4

CIRCLIP(10W)

99009-10400-00

$4.73

5

OIL SEAL (11X15X3-341)

93104-11038-00

$8.49

6

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

6

COVER & HOUSING COMP, OIL PUMP

99999-00996-00

Unavailable

6

COVER & HOUSING COMP, OIL PUMP

99999-00996-00

Unavailable

7

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

8

ROTOR 1 ASSY

583-13310-01-00

Unavailable

9

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

9

COVER & HOUSING COMP, OIL PUMP

99999-00996-00

Unavailable

9

COVER & HOUSING COMP, OIL PUMP

99999-00996-00

Unavailable

10

PIN,DOWEL (620)

93604-22050-00

$8.49

11

ROTOR 2 ASSY

583-13320-00-00

Unavailable

12

SHAFT, PUMP

583-13314-01-00

Unavailable

13

PIN,DOWEL

93603-17070-00

Unavailable

14

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

Unavailable

15

STRAINER, OIL

583-13411-00-00

Unavailable

16

GASKET, STRAINER COVER

3HT-13414-00-00

Unavailable

17

COVER, STRAINER

583-13417-01-00

Unavailable

18

BOLT,SOCKET

91317-06020-00

Unavailable

19

BOLT, HEXAGON

90101-14259-00

Unavailable

20

GASKET

214-11198-01-00

Unavailable

21

PIPE, DELIVERY 1

583-13161-01-00

Unavailable

22

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

23

BOLT, UNION

90401-08006-00

Unavailable

24

HOSE, OIL 1

583-13464-00-00

Unavailable

25

O-RING (371)

93210-10197-00

Unavailable

26

BOLT,SOCKET

91317-06016-00

Unavailable

27

BOLT,SOCKET

91317-06012-00

Unavailable

28

HOSE, OIL 2

583-13465-02-00

Unavailable

29

BOLT,SOCKET

91317-06016-00

Unavailable

30

O-RING (341)

93210-15171-00

Unavailable

31

CLAMP

90465-06077-00

Unavailable

32

BAND, SWITCH CORD

437-83936-01-00

Unavailable
