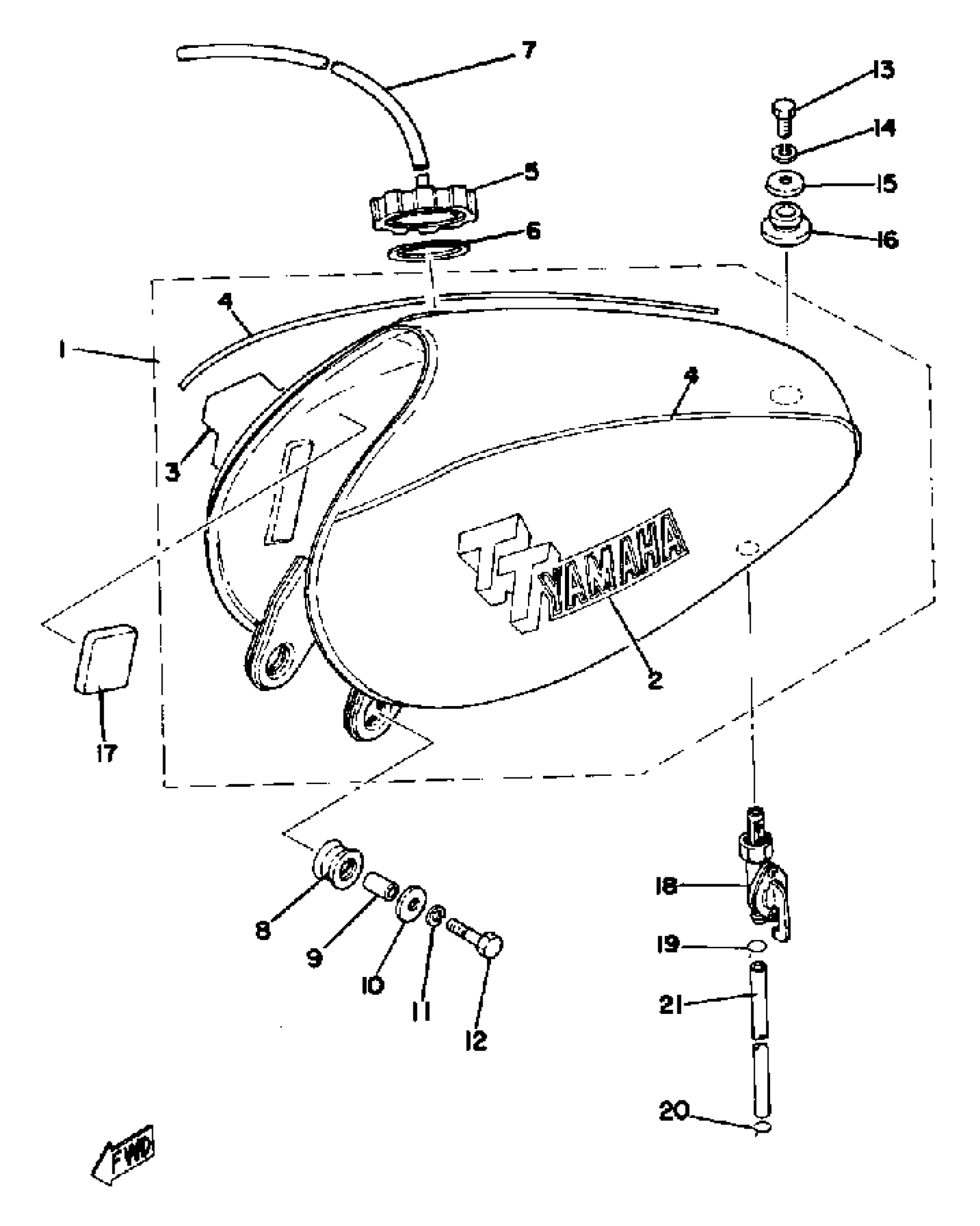

Yamaha TT500E (TT500) 1978 FUEL TANK Diagram

FUEL TANK

(1T1-24110-01-02)

Unavailable

. UNAVAILABLE IN PRICE BOOKLEFT

[1T-12416-11-00

Unavailable

EMBLEM 2

(1T1-24162-10-00)

Unavailable

EMBLEM 3

1T1-24163-00-00

Unavailable

BODY, CAP

2A6-24611-00-00

Unavailable

PACKING, CAP

1W1-24612-00-00

$9.99

HOSE (L1500)

90445-090F6-00

$31.99

GROMMET (583 FUEL TANK)

90480-22177-00

$18.99

COLLAR(1NL)

90387-086N4-00

$9.49

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

$10.49

WASHER, SPRING

92995-06100-00

Unavailable

BOLT, HEXAGON

97017-06030-00

$3.61

BOLT(JA9)

90101-08691-00

$4.29

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

WASHER, PLATE

90209-08150-00

Unavailable

DAMPER, FUEL TANK (434)

90480-22054-00

Unavailable

DAMPER, TANK LOCATING

583-24182-00-00

Unavailable

FUEL COCK ASSY

322-24500-02-00

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable

CLIP

90467-100A1-00

Unavailable

HOSE (L210)

90445-110F5-00

Unavailable
