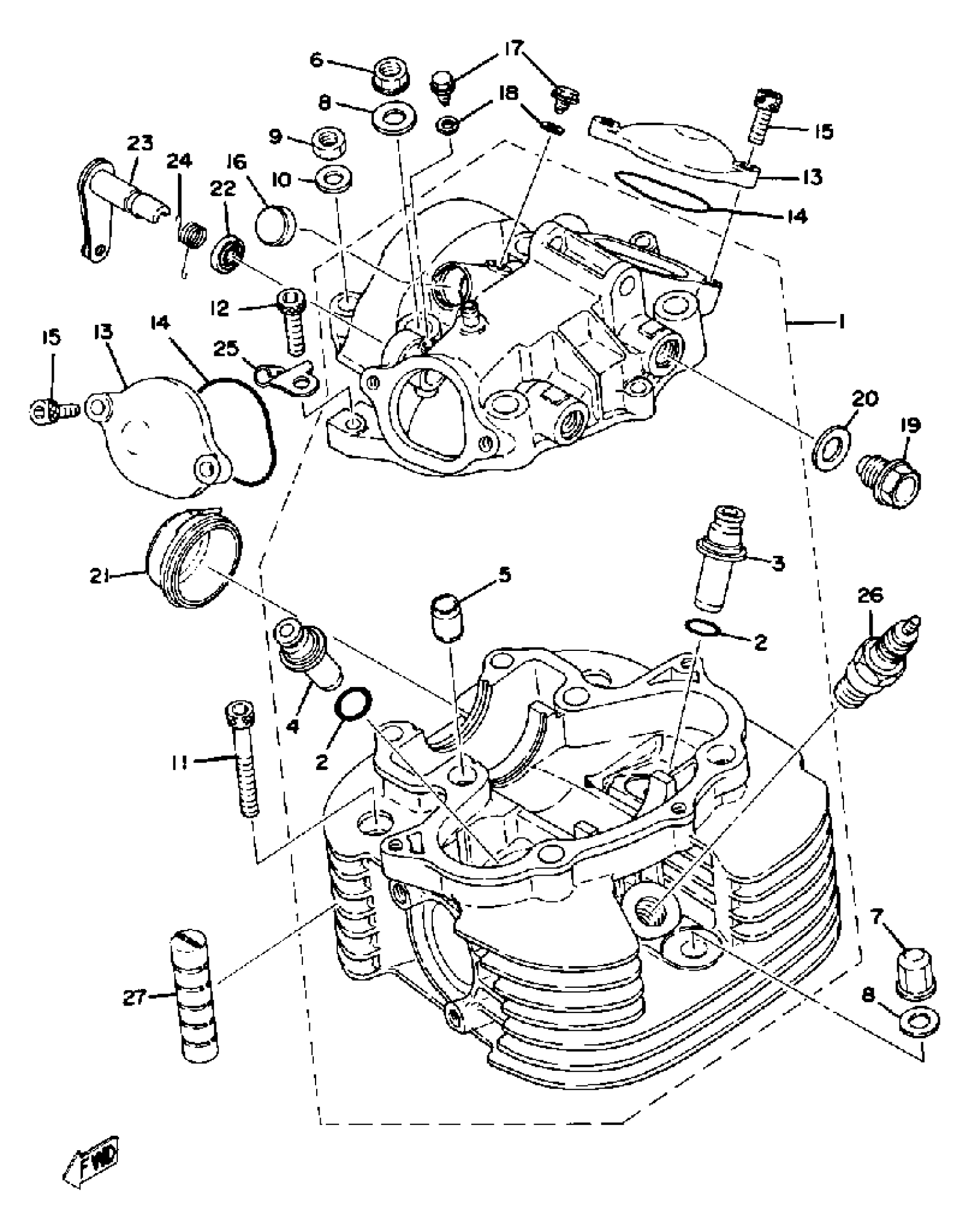

Yamaha TT500E (TT500) 1978 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(2H0-11110-00-R4)

Unavailable

2

O-RING (583 VALVE GUIDE)

93210-14299-00

$5.60

3

GUIDE, INTAKE VALVE 1ST O/S

583-11133-11-00

$76.99

4

. GDE, EXST VLV 1 O/S (1ST OS)

583-11134-11-00

Unavailable

5

PIN, DOWEL

99530-14016-00

$3.80

6

NUT, CROWN(2GG)

90176-10075-00

$8.49

7

NUT, CROWN(2GG)

90176-10075-00

$8.49

8

WASHER, PLATE 3711117500

90201-10124-00

$9.49

9

NUT(6L2)

95333-08600-00

$2.49

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

BOLT,SOCKET

91317-06055-00

$4.19

12

BOLT,SOCKET

91317-06025-00

$5.60

13

COVER, CYLINDER. HEAD 2

583-11186-00-00

Unavailable

14

O-RING (583 CYL. HEAD SIDE COV

93210-49296-00

$18.99

15

BOLT,SOCKET

91317-06018-00

$8.49

16

PLUG (583)

90338-18067-00

Unavailable

17

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

18

GASKET 256113960000

90430-06014-00

Unavailable

19

PLUG (583 ROCKER SHAFT)

90340-14038-00

Unavailable

20

GASKET 256131670000

90430-14043-00

Unavailable

21

PLUG, VIEWER

2J2-11197-00-00

Unavailable

22

OIL SEAL (1.2X17X2.5-583)

93104-12054-00

Unavailable

23

CAM, DECOMPRESSION

583-12288-01-00

Unavailable

24

SPRING, TORSION (583)

90508-16303-00

Unavailable

25

BRACKET, DECOMPRESSION

583-12283-00-00

Unavailable

26

CHAMPION N7YC 4PK

CMP-N7YC0-00-00

Unavailable

26

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

27

ABSORBER

583-11127-00-00

Unavailable
