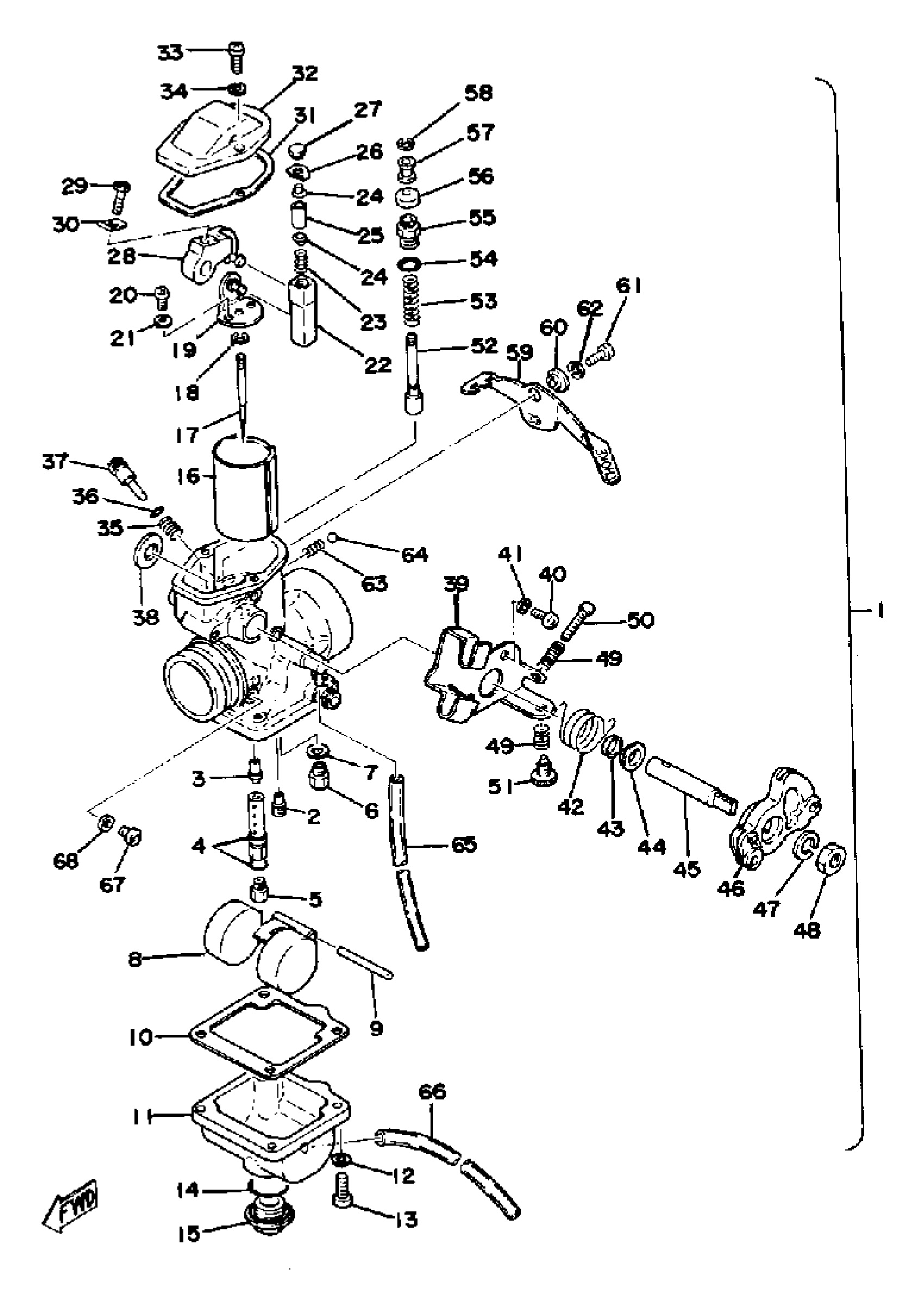

Yamaha TT500E (TT500) 1978 CABURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(1T1-14101-60-00)

Unavailable

1

O-RING

583-14561-00-00

$5.49

2

JET, PIL0T (# 30)

193-14142-30-A0

Unavailable

3

. NOZZLE, MAIN (Q-2)

583-14141-52-00

Unavailable

4

PIPE, JET NEEDLE

583-14148-00-00

Unavailable

5

JET, MAIN #230

137-14143-46-A1

$13.49

5

JET, MAIN #240

137-14143-48-A1

$13.49

5

JET, MAIN #250

137-14143-50-A1

Unavailable

6

VALVE SEAT ASSY

168-14190-28-00

$36.99

7

WASHER, VALVE SEAT

214-14195-00-00

$7.99

8

. FLOAT

583-14185-00-00

Unavailable

9

PIN, FLOAT

127-14186-00-00

$6.65

10

GASKET, FLOAT CHAMBER BODY

583-14184-00-00

Unavailable

11

BODY, FLOAT CHMBR 1

(1E6-14181-12-00)

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

14

O-RING (541)

558-14147-00-00

Unavailable

15

PLUG, SCREW

500-14115-00-00

Unavailable

16

. UNAVAILABLE IN PRICE BOOK (CA-40)

[58-31411-24-00

Unavailable

17

. NEEDLE

1T1-14116-02-00

Unavailable

18

CLIP

3FA-14137-00-00

Unavailable

19

. UNAVAILABLE IN PRICE BOOKVALVE

[58-31429-10-00

Unavailable

20

SCREW, PAN HEAD

98511-04012-00

Unavailable

21

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

22

. UNAVAILABLE IN PRICE BOOK

[58-31427-40-00

Unavailable

23

. UNAVAILABLE IN PRICE BOOK

[58-31493-30-00

Unavailable

24

. UNAVAILABLE IN PRICE BOOK

[58-31455-80-00

Unavailable

25

. UNAVAILABLE IN PRICE BOOK

[58-31438-60-00

Unavailable

26

WASHER

(583-14951-00-00)

Unavailable

27

SCREW

(583-14216-00-00)

Unavailable

28

LEVER, THROTTL.VALV

(583-14292-00-00)

Unavailable

29

. SCREW

583-14592-00-00

Unavailable

30

WASHER

(583-14597-00-00)

Unavailable

31

GASKET, MIXING CHAMBER TOP

583-14536-00-00

Unavailable

32

. UNAVAILABLE IN PRICE BOOK

[58-31415-80-00

Unavailable

33

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

34

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

35

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

36

O-RING (493-CARB.)

354-14147-00-00

Unavailable

37

AIR SCREW SET

10W-14104-00-00

Unavailable

38

. SPACER

583-14264-00-00

Unavailable

39

BRACKET, THROTTLE

(583-14571-00-00)

Unavailable

40

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

41

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

42

. SPRING, THRTL VALVE

583-14131-01-00

Unavailable

43

. SEAL

583-14239-01-00

Unavailable

44

. COLLAR

583-14265-00-00

Unavailable

45

SHAFT, THRTL LEVER

(583-14215-00-00)

Unavailable

46

. UNAVAILABLE IN PRICE BOOK

[58-31457-30-00

Unavailable

47

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

48

NUT

812-14594-00-00

Unavailable

49

. SPRING, THRTL STOP

583-14133-00-00

Unavailable

50

. UNAVAILABLE IN PRICE BOOK

[58-31424-50-10

Unavailable

51

SCREW, THRTL STOP

(583-14121-00-00)

Unavailable

52

PLUNGER, STARTER

(583-14171-01-00)

Unavailable

53

. SPRING, PLUNGER

500-14135-00-00

Unavailable

54

. O-RING

583-14562-00-00

Unavailable

55

. CAP, PLUNGER

583-14174-00-00

Unavailable

56

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

57

. RING

583-14918-00-00

Unavailable

58

. CLIP

737-14137-00-00

Unavailable

59

. LEVER, STARTER 1

583-14175-01-00

Unavailable

60

. NUT

583-14594-00-00

Unavailable

61

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

62

WASHER, SPRING

92995-06100-00

Unavailable

63

SPRING

583-14589-00-00

Unavailable

64

BALL

93501-08001-00

Unavailable

65

HOSE (L340)

90445-08684-00

Unavailable

66

. PIPE (43214-19700-00)

510-14197-00-00

Unavailable

67

.. PLUG, SCREW

341-14991-00-00

Unavailable

68

.. WASHER, PLUG SCREW

584-14956-00-00

Unavailable
