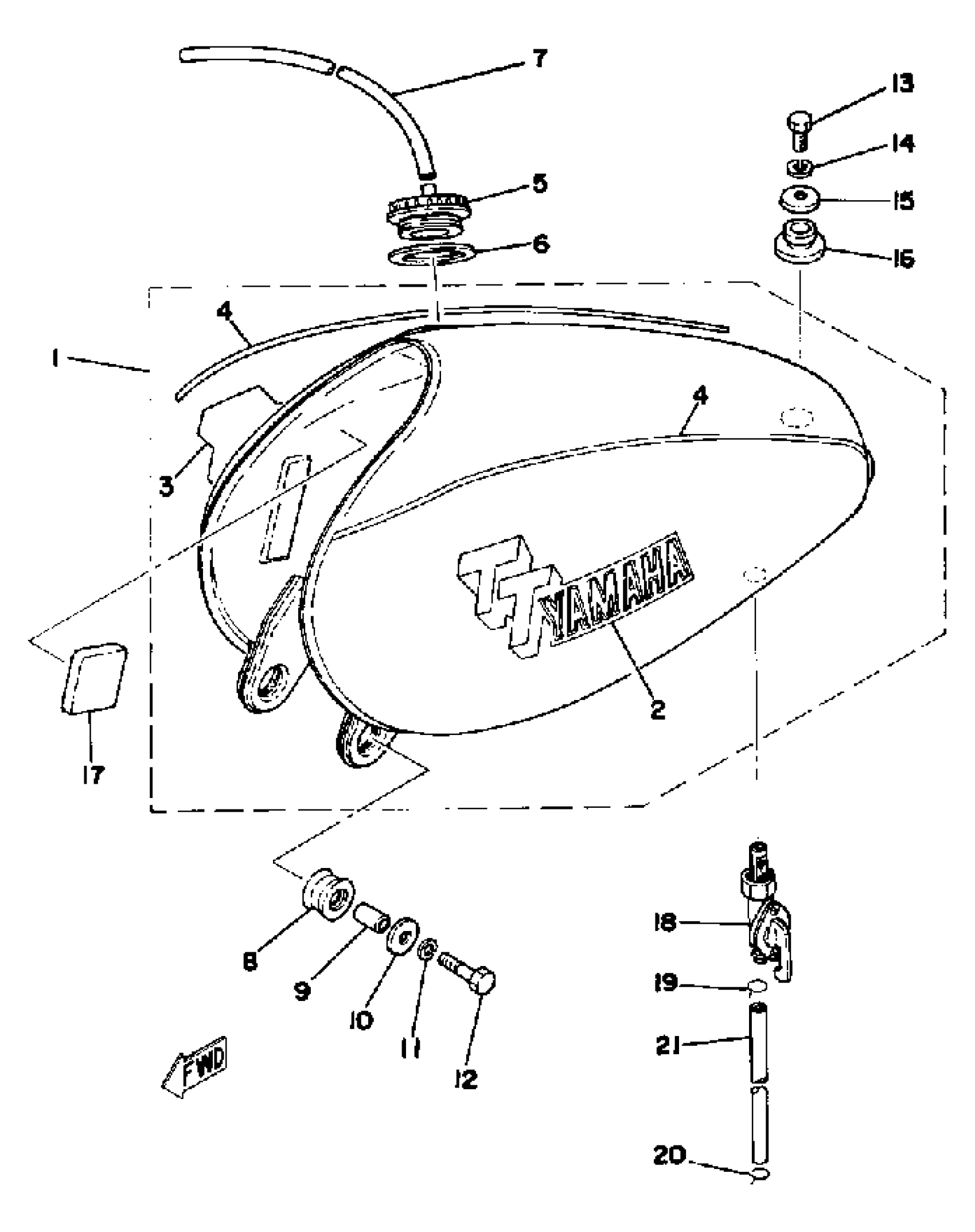

Yamaha TT500D (TT500) 1977 FUEL TANK Diagram

#

Description
Price

1

. UNAVAILABLE IN PRICE BOOK

[1T-12411-00-10

Unavailable

1

PACKING, CAP

1W1-24612-00-00

$9.99

1

BODY, CAP

2A6-24611-00-00

Unavailable

1

FUEL TANK COMP

(99999-01006-00)

Unavailable

2

EMBLEM 1

(1T1-24161-00-00)

Unavailable

3

EMBLEM 2

(1T1-24162-00-00)

Unavailable

4

EMBLEM 3

1T1-24163-00-00

Unavailable

5

BODY, CAP

322-24611-02-00

$57.99

6

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

7

HOSE (L1500)

90445-090F6-00

$31.99

8

GROMMET (583 FUEL TANK)

90480-22177-00

$18.99

9

COLLAR(1NL)

90387-086N4-00

$9.49

10

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

$10.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

BOLT(JA9)

90101-08691-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

15

WASHER, PLATE

90209-08150-00

Unavailable

16

DAMPER, FUEL TANK (434)

90480-22054-00

Unavailable

17

DAMPER, TANK LOCATING

583-24182-00-00

Unavailable

18

FUEL COCK ASSY

322-24500-02-00

Unavailable

19

CLIP(1JH)

90467-11106-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

HOSE (L210)

90445-110F5-00

Unavailable
