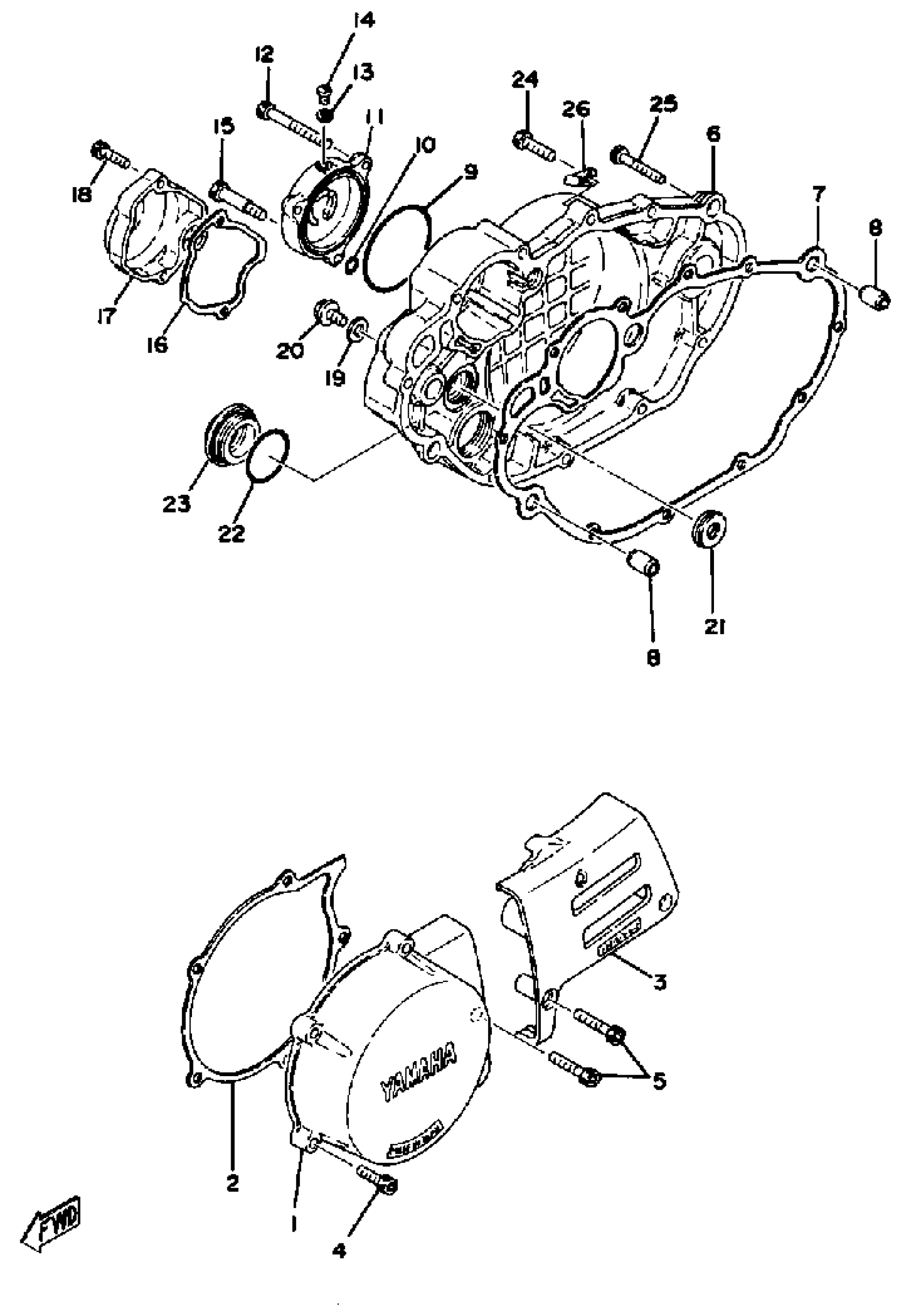

Yamaha TT500D (TT500) 1977 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

583-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

$24.99

3

COVER, CRANKCASE R

583-15421-00-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$5.60

5

BOLT,SOCKET

91317-06035-00

Unavailable

6

COVER, CRANKCASE 3 (583-15431-02-98)

583-W1542-00-00

Unavailable

7

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

$22.99

8

PIN, DOWEL

99530-12016-00

$4.89

9

O-RING (583 OIL CLEANER)

93210-64297-00

$8.49

10

O-RING

93210-07438-00

$8.49

11

COVER, OIL ELEMENT

583-13447-01-00

$29.99

12

BOLT,SOCKET

91317-06060-00

$3.76

13

GASKET

90430-05126-00

Unavailable

14

SCREW (583)

90149-05110-00

$9.49

15

BOLT (583 OIL DRAIN)

90109-06419-00

$8.49

16

GASKET

3HT-15457-00-00

Unavailable

17

COVER, CAP

583-15417-00-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

$5.60

19

GASKET (5R6)

90430-10171-00

Unavailable

20

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

21

OIL SEAL (14X25X5.5-583)

93101-14089-00

Unavailable

22

O-RING (5H0)

93210-34474-00

Unavailable

23

COVER, GENERATOR R

583-15425-00-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

25

BOLT,SOCKET

91317-06040-00

Unavailable

26

CLAMP

90465-08076-00

Unavailable
