Description

Price

1

CAMSHAFT 1

583-12171-02-00

Unavailable

2

BEARING(1FF)

93306-00519-00

$36.99

3

BEARING(1FF)

93306-00519-00

$36.99

4

CIRCLIP (583 CAM SHAFT)

93440-47044-00

$12.49

5

SPROCKET, CAM CHAIN DRIVEN

583-12176-00-00

$93.99

6

PIN, DOWEL (409)

93604-16092-00

$3.18

7

BOLT (583)

90101-10303-00

$9.49

8

PLATE

1T1-12279-00-00

Unavailable

9

CHAIN, CAM SHAFT (583)

94500-02106-00

$68.99

10

JOINT, CHAIN (583)

94600-02001-00

$7.99

11

GUIDE, STOPPER 1

583-12231-01-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

GUIDE, STOPPER 2

341-12241-04-00

$85.99

14

SHAFT, CHAIN TENSIONER

583-12247-00-00

Unavailable

15

O-RING (256)

93210-12152-00

$7.49

16

ROD, CHAIN TENSIONER

583-12217-00-00

Unavailable

17

SPRING COMPRESSION341122160200

90501-14095-00

Unavailable

18

DAMPER (583-12232-00)

583-12232-01-00

Unavailable

19

UNAVAILABLE IN PRICE BOOK (90149-18100)

90149-18190-00

Unavailable

20

NUT (583 CHAIN TENSIONER)

90179-18199-00

Unavailable

21

O-RING (341)

93210-32172-00

Unavailable

22

CAP, CHAIN TENSIONER

583-12212-00-00

Unavailable

23

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

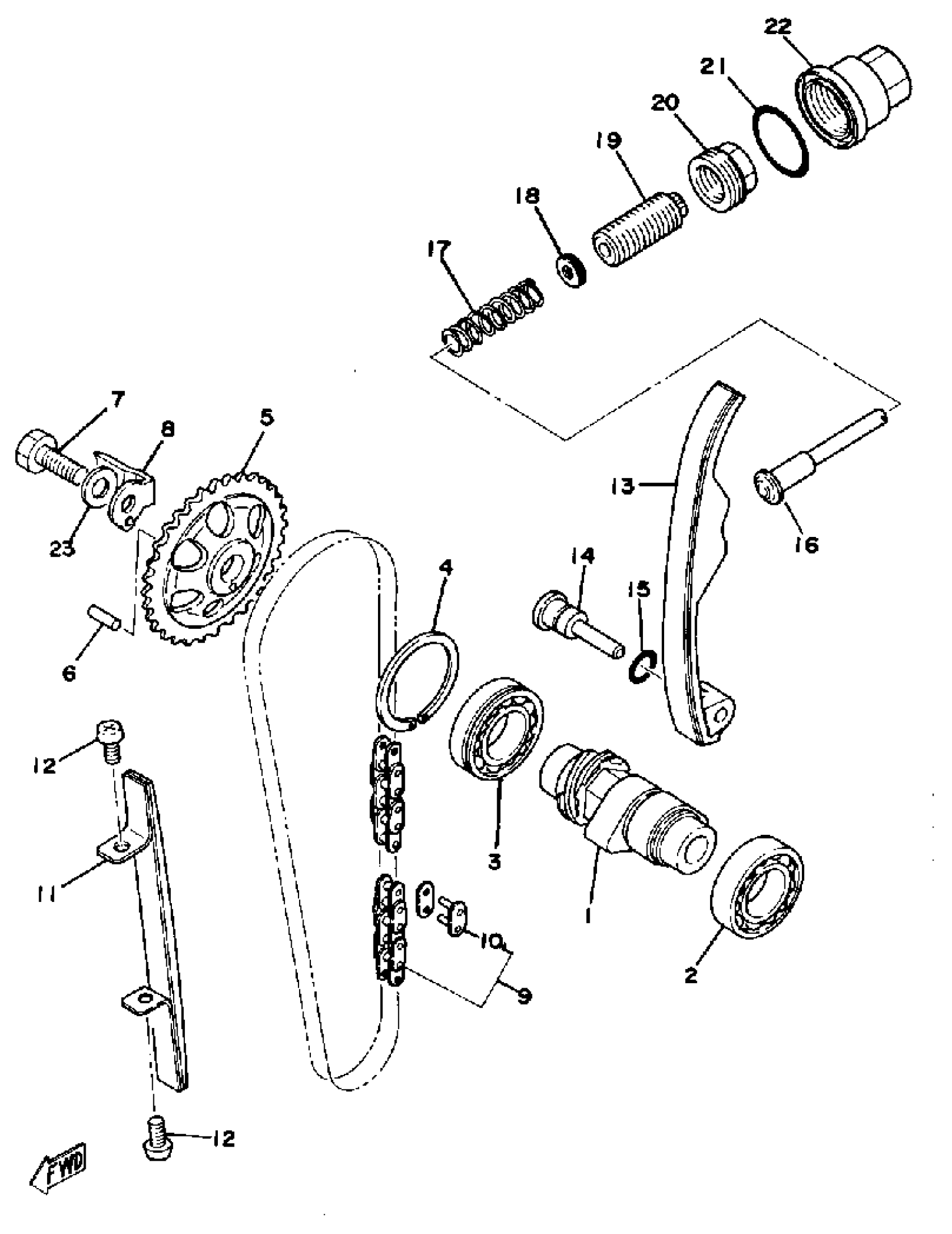

Yamaha TT500D (TT500) 1977 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

BEARING(1FF)

BEARING(1FF)

CIRCLIP (583 CAM SHAFT)

SPROCKET, CAM CHAIN DRIVEN

PIN, DOWEL (409)

BOLT (583)

PLATE

CHAIN, CAM SHAFT (583)

JOINT, CHAIN (583)

GUIDE, STOPPER 1

SCREW, PAN

GUIDE, STOPPER 2

SHAFT, CHAIN TENSIONER

O-RING (256)

ROD, CHAIN TENSIONER

SPRING COMPRESSION341122160200

DAMPER (583-12232-00)

UNAVAILABLE IN PRICE BOOK (90149-18100)

NUT (583 CHAIN TENSIONER)

O-RING (341)

CAP, CHAIN TENSIONER

WASHER, PLATE (3L6)
