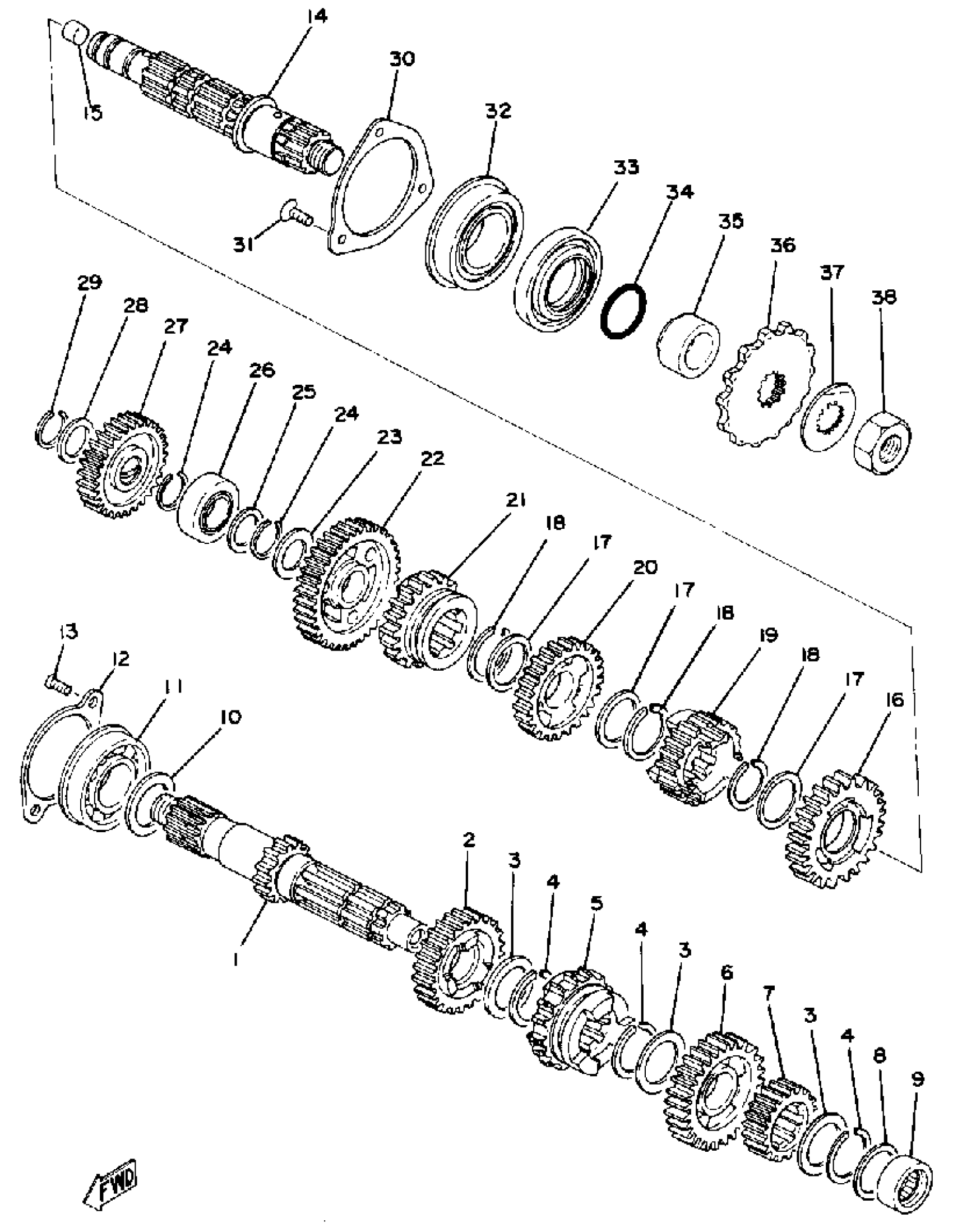

Yamaha TT500C (TT500) 1976 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

583-17411-01-00

Unavailable

2

GEAR, 4TH PINION

583-17141-00-00

$79.99

3

WASHER, PLATE(59W)

90201-253K0-00

$8.49

4

CIRCLIP

93440-25020-00

$9.49

5

GEAR, 3RD PINION

583-17131-02-00

Unavailable

6

GEAR, 5TH PINION

583-17151-01-00

Unavailable

7

GEAR, 2ND PINION

583-17121-00-00

Unavailable

8

WASHER PLATE 132172160000

90201-20266-00

$9.49

9

BEARING

93311-42077-00

$55.99

10

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

11

BRG,R-B 4205 52MM 185G KY

93304-20501-00

$96.99

12

PLATE, BEARING COVER

583-15383-00-00

Unavailable

13

SCREW, FLAT

98707-06014-00

$8.49

14

AXLE, DRIVE

99999-01986-00

Unavailable

15

PLUG, SPEC''L SHAPE

90338-09066-00

Unavailable

16

GEAR, 2ND WHEEL

583-17221-00-00

Unavailable

17

WASHER, PLATE(59W)

90201-253K0-00

$8.49

18

CIRCLIP

93440-25020-00

$9.49

19

GEAR, 5TH WHEEL

583-17251-01-00

Unavailable

20

GEAR, 3RD WHEEL

583-17231-01-00

Unavailable

21

GEAR, 4TH WHEEL

583-17241-00-00

Unavailable

22

GEAR, 1ST WHEEL

583-17211-00-00

Unavailable

23

WASHER PLATE 168171160000

90201-20278-00

Unavailable

24

CIRCLIP (525)

93410-20038-00

Unavailable

25

WASHER PLATE 132172160000

90201-20266-00

$9.49

26

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

Unavailable

27

GEAR, KICK IDLE

583-15651-00-00

Unavailable

28

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

29

CIRCLIP(1EY)

99009-17400-00

Unavailable

30

PLATE, BRNG COVER

(363-15381-00-00)

Unavailable

31

SCREW, FLAT

98707-05012-00

Unavailable

32

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

Unavailable

33

OIL SEAL, SD-TYPE

93102-35180-00

Unavailable

34

O-RING

93210-22298-00

Unavailable

35

COLLAR

90387-25507-00

Unavailable

36

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

36

SPROCKET, DRIVE

4DN-17460-00-00

Unavailable

36

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

Unavailable

37

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

38

NUT 152174630000

90179-18020-00

Unavailable
