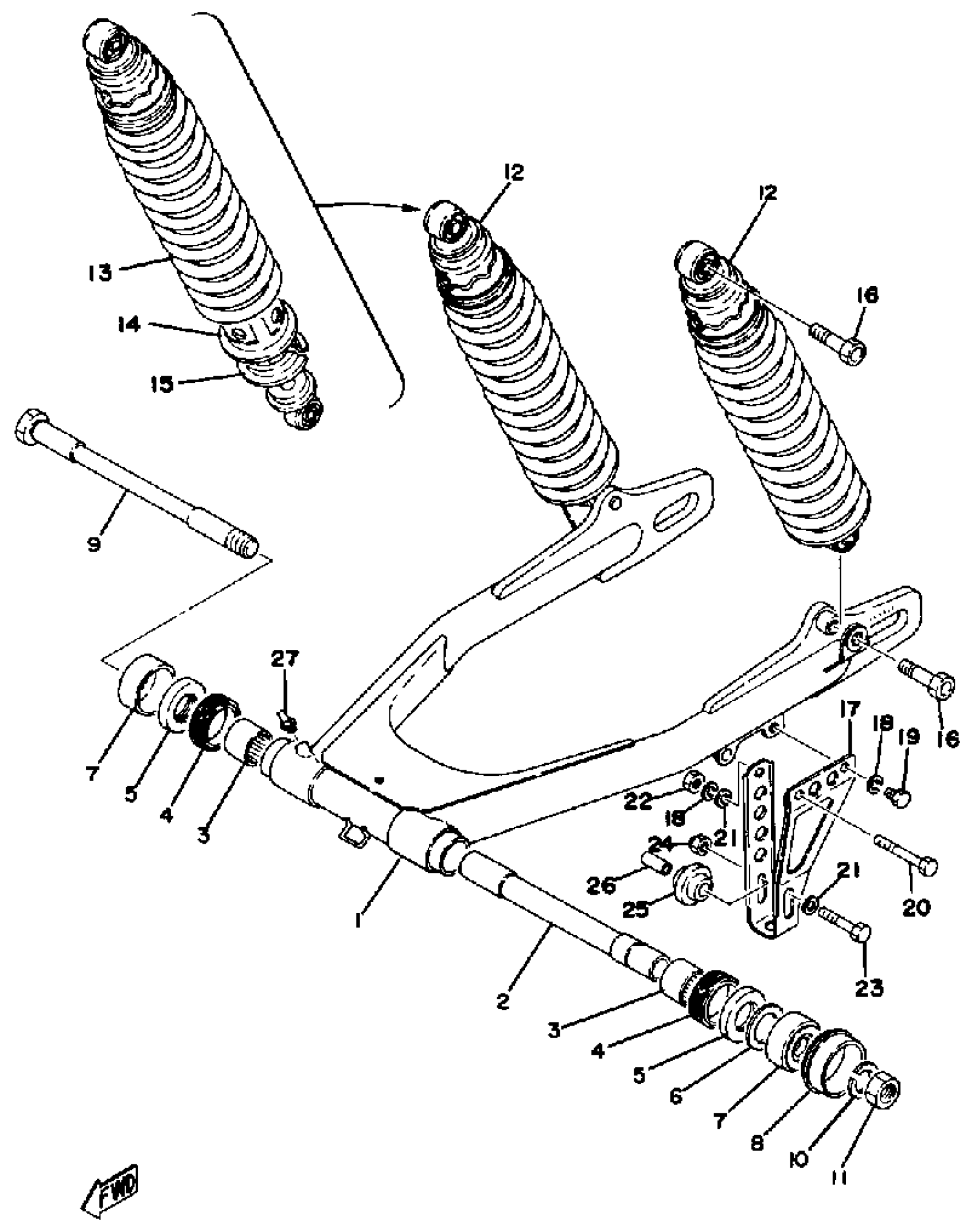

Yamaha TT500C (TT500) 1976 SWING ARM - REAR SHOCKS Diagram

#

Description
Price

1

REAR ARM

(583-22110-00-33)

Unavailable

2

BUSH 2

483-22124-00-00

Unavailable

3

BRG,CYL-CAL ROLLER 28.5G NT

93317-22208-00

$46.99

4

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

5

BEARING, THRUST

93342-22205-00

$70.99

6

SHIM (90201-22284)

648-45533-00-02

Unavailable

7

COVER, THRUST 2

2K8-22129-00-00

$37.99

7

SEAL, GUARD

431-22151-03-00

$27.99

7

THRUST COVER (483-22129-00)

99999-00938-00

Unavailable

8

SEAL, GUARD

431-22151-03-00

$27.99

9

SHAFT, PIVOT

583-22141-01-00

Unavailable

10

WASHER(JN5)

92907-16100-00

$14.99

11

NUT

90170-16111-00

Unavailable

12

SHK/ABS ASSEMBLY, REAR

(583-22210-00-00)

Unavailable

13

SPRING

(583-22212-00-00)

Unavailable

14

COVER

(583-22211-00-00)

Unavailable

15

. GUIDE, SPRING 1

583-22214-00-00

Unavailable

16

BOLT (583 REAR CUSHION)

90109-10420-00

Unavailable

17

GUARD, CHAIN

322-22153-00-33

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BOLT(3JP)

97017-06010-00

Unavailable

20

BOLT, HEXAGON

97013-06050-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

BOLT (682)

97095-06040-00

Unavailable

24

NUT, SELF-LOCKING

95617-06100-00

Unavailable

25

TENSIONER

322-22178-00-00

Unavailable

26

SPACER (322-22137-00)

90560-06003-00

Unavailable

27

NIPPLE, GREASE

93700-06M03-00

Unavailable
