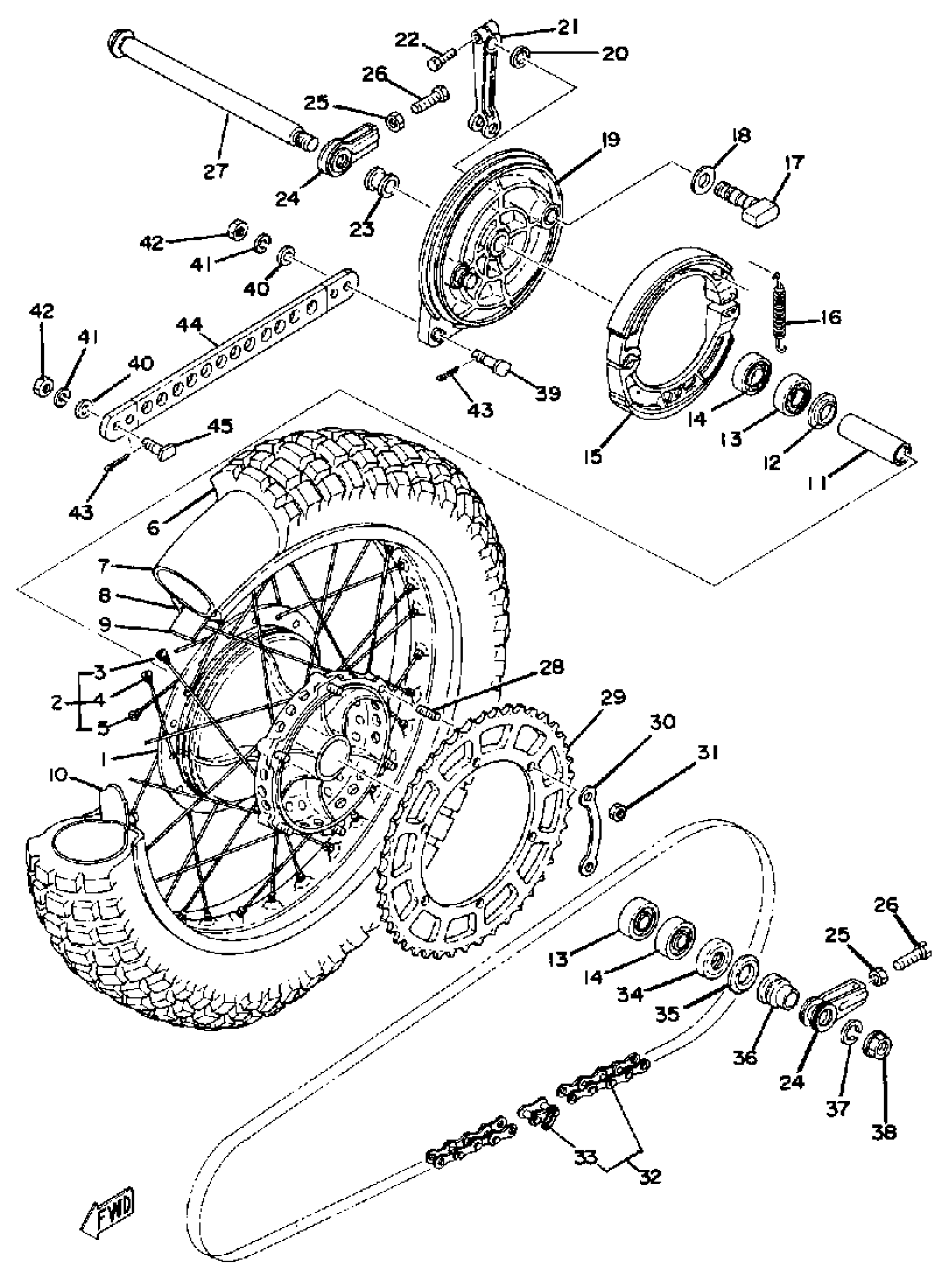

Yamaha TT500C (TT500) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(483-25311-13-98)

Unavailable

2

SPOKE SET, REAR (431-25304-00)

431-25304-01-00

Unavailable

3

SPOKE SET, INNER 2

(431-25396-90-00)

Unavailable

4

SPOKE SET, INNER 1

(431-25391-90-00)

Unavailable

5

SPOKE SET, OUTER 1

(431-25392-90-00)

Unavailable

6

460X18 DUN SR SPRT

(94146-18109-00)

Unavailable

7

TUBE

(94246-18040-00)

Unavailable

8

RIM 2.15X18 (94421-18151) (2.15-18)

94421-18238-00

Unavailable

9

BAND, RIM (2J4)

94340-18086-00

$17.99

10

SPACER,BEAD

1T1-25394-01-00

Unavailable

11

SPACER, BEARING

483-25317-01-00

Unavailable

12

FLANGE, SPACER

483-25315-00-00

Unavailable

13

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

14

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

15

BRAKE SHOE SET-2PCS

431-W2536-00-00

Unavailable

16

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

17

CAMSHAFT

(509-25351-00-00)

Unavailable

18

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

19

PLATE, BRAKE SHOE

(483-25321-00-98)

Unavailable

20

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

21

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

COLLAR

90387-17215-00

Unavailable

24

PULLER, CHAIN 1

48U-25388-00-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

BOLT

90101-08060-00

Unavailable

27

AXLE, WHEEL

(431-25381-00-00)

Unavailable

28

BOLT, STUD (483)

90116-08218-00

Unavailable

29

SPROCKET, DRIVN 50T (50T)

583-25450-10-00

Unavailable

29

SPROCKET, DRIVN 52T (52T)

583-25452-10-00

Unavailable

29

SPROCKET, DRIVN 54T (54T)

583-25454-10-00

Unavailable

30

WASHER

2XJ-25412-00-00

Unavailable

31

NUT (583)

90170-08193-00

Unavailable

32

520D5-100L DID (94515-20100)

9Y585-20099-00

Unavailable

33

JOINT, CHAIN

94681-68001-00

Unavailable

34

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

35

COVER, HUB DUST

431-25367-00-00

Unavailable

36

COLLAR

90387-17555-00

Unavailable

37

WASHER(JN5)

92907-16100-00

Unavailable

38

NUT, HEXAGON

90170-16177-00

Unavailable

39

BOLT

90109-08176-00

Unavailable

40

WASHER, PLAIN

92990-08200-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

42

. NUT

95380-08700-00

Unavailable

43

PIN, COTTER

91490-20025-00

Unavailable

44

BAR, TENSION

(583-25371-00-00)

Unavailable

45

BOLT

(90109-08378-00)

Unavailable
