1976 Yamaha TT500 (TT500C) Front Wheel Diagram

← All diagrams

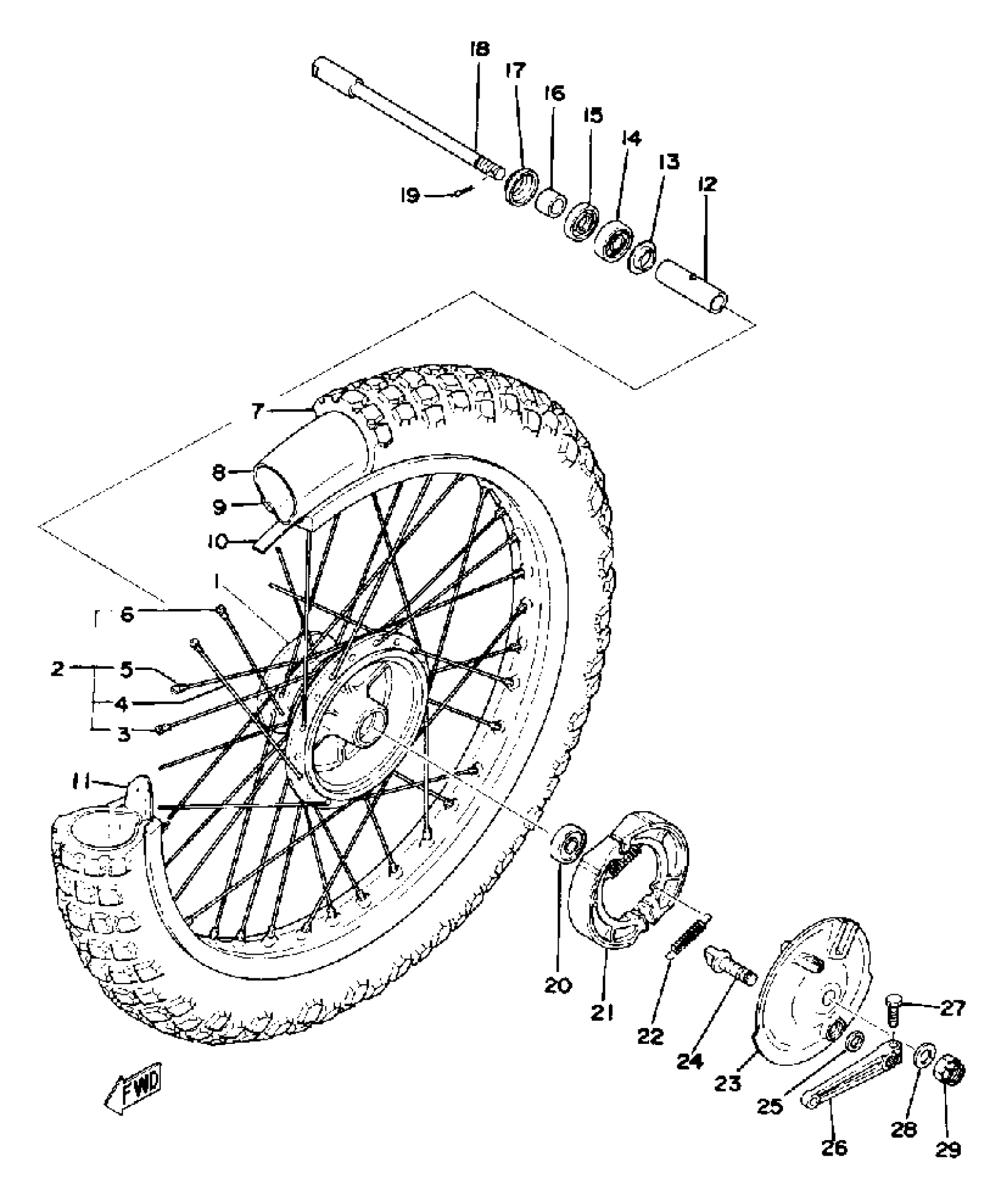

Find the part on the Front Wheel diagram for your 1976 Yamaha TT500 (TT500C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TT500 (TT500C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(322-25111-00-98)

1
Out of stock

2

SPOKE SET, FRONT

(322-25104-01-00)

1
Out of stock

3

SPOKE SET, INNER 1

(322-25196-90-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(322-25197-90-00)

1
Out of stock

5

SPOKE SET, INNER 2

(322-25179-90-00)

1
Out of stock

6

SPOKE SET, OUTER 2

(322-25189-90-00)

1
Out of stock

7

300-21 M1B (TT)

(94130-213A4-00)

1
Out of stock

8

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

9

RIM 1.60X21

94416-21326-00

1
Out of stock

10

BAND, RIM

(94327-21024-00)

1
Out of stock

11

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

12

SPACER

90560-15116-00

1
Out of stock

13

FLANGE, SPACER

146-25116-00-00

1
Out of stock

14

BEARING

93306-20205-00

1

$32.63

In stock

15

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

16

UNAVAILABLE IN PRICE BOOK (322-25183-00)

(322-25183-00-)

1
Out of stock

17

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

18

AXLE, WHEEL

583-25181-00-00

1
Out of stock

19

PIN, COTTER

91490-30030-00

—

$7.15

In stock

20

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

—

$21.28

In stock

21

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

22

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

23

PLATE, BRAKE SHOE

(483-25121-00-98)

1
Out of stock

24

CAMSHAFT

23X-25151-00-00

1
Out of stock

25

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

26

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

27

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

28

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

29

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock
