1976 Yamaha TT500 (TT500C) Front Fork Diagram

← All diagrams

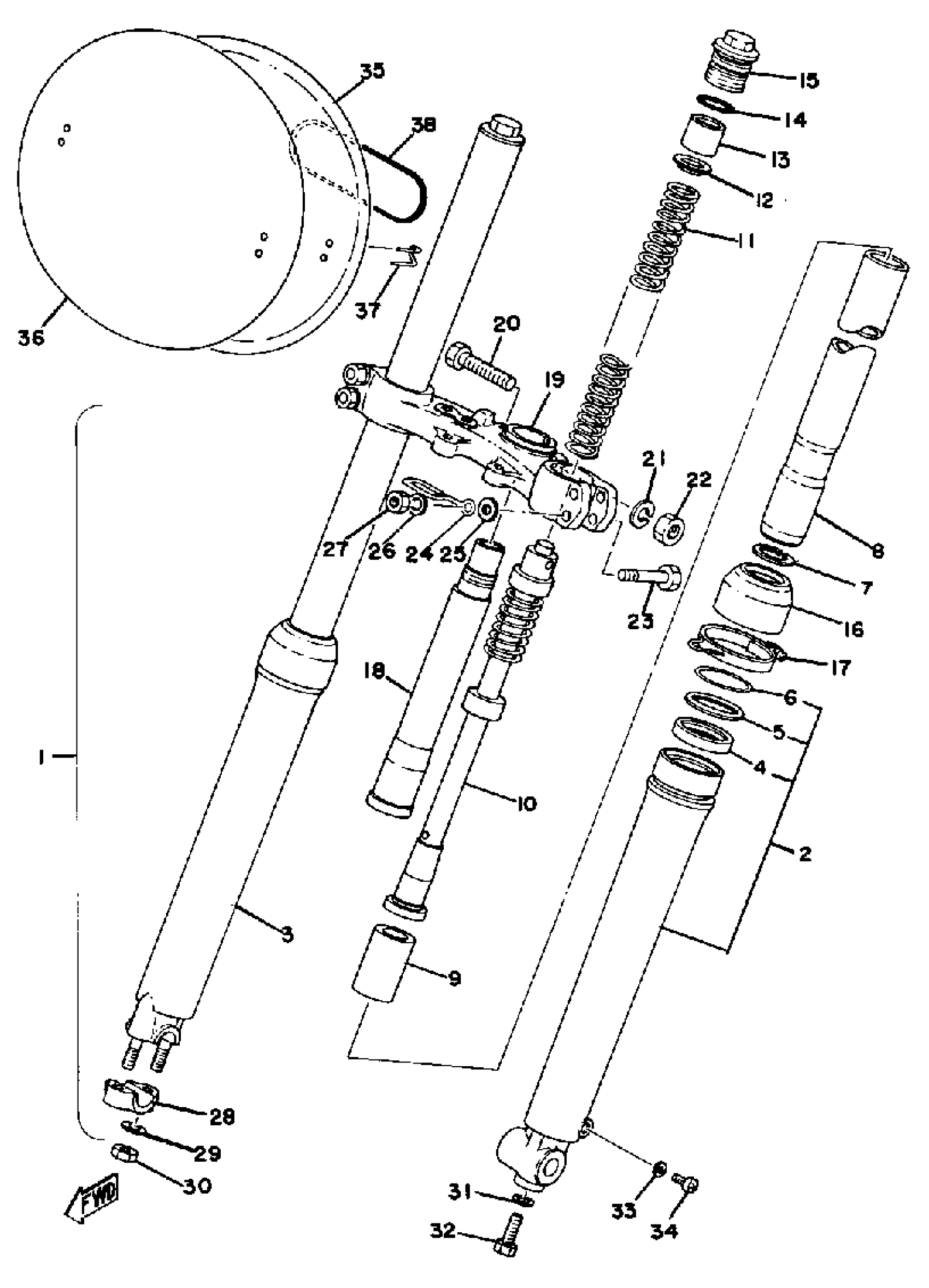

Find the part on the Front Fork diagram for your 1976 Yamaha TT500 (TT500C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TT500 (TT500C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(583-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(583-23126-01-00)

1
Out of stock

3

TUBE, OUTER 2

(583-23136-00-00)

1
Out of stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

WASHER, OIL SEAL

341-23146-50-00

1

$8.72

In stock

6

CLIP, OIL SEAL

341-23156-50-00

1

$29.03

In stock

7

CIRCLIP, INNER

(93450-30039-00)

1
Out of stock

8

TUBE, INNER 1

(583-23124-00-00)

1
Out of stock

9

PISTON, FRONT FORK

(583-23171-00-00)

1
Out of stock

10

CYLINDER, FRTFRK

(583-23170-00-00)

1
Out of stock

11

SPRING, FRONT FORK

(583-23141-00-00)

1
Out of stock

12

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

13

SPACER

(583-23118-00-00)

1
Out of stock

14

GASKET

240-23114-00-00

1

$12.27

In stock

15

. BOLT, CAP (583-23111-00)

2W6-23111-00-00

1
Out of stock

16

. SEAL, DUST

583-23144-00-00

1
Out of stock

17

HOLDER, CABLE 1

(583-23318-00-00)

1
Out of stock

18

SHAFT, STEERING

(1E6-23341-00-00)

1
Out of stock

19

UNDER BRACKET

(2H1-23340-00-33)

1
Out of stock

20

BOLT 2

(322-23356-00-00)

1
Out of stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

NUT

(322-23357-00-00)

1
Out of stock

23

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

24

. NO LONGER AVAILABLE

583-23317-00-00

1
Out of stock

25

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

NUT, HEXAGON

(90170-08180-00)

1
Out of stock

28

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

29

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

30

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

31

GASKET

509-23158-L0-00

—

$14.34

In stock

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

33

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

34

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

35

PLATE, NUMBER

583-23485-00-00

1
Out of stock

36

EMBLEM

322-23395-00-00

1
Out of stock

37

STAY, PLATE

431-23486-02-00

1
Out of stock

38

O-RING (802)

93210-99103-00

—
Out of stock

39

SPACER

(583-23118-00-00)

1
Out of stock
