FRAME - SIDE COVER

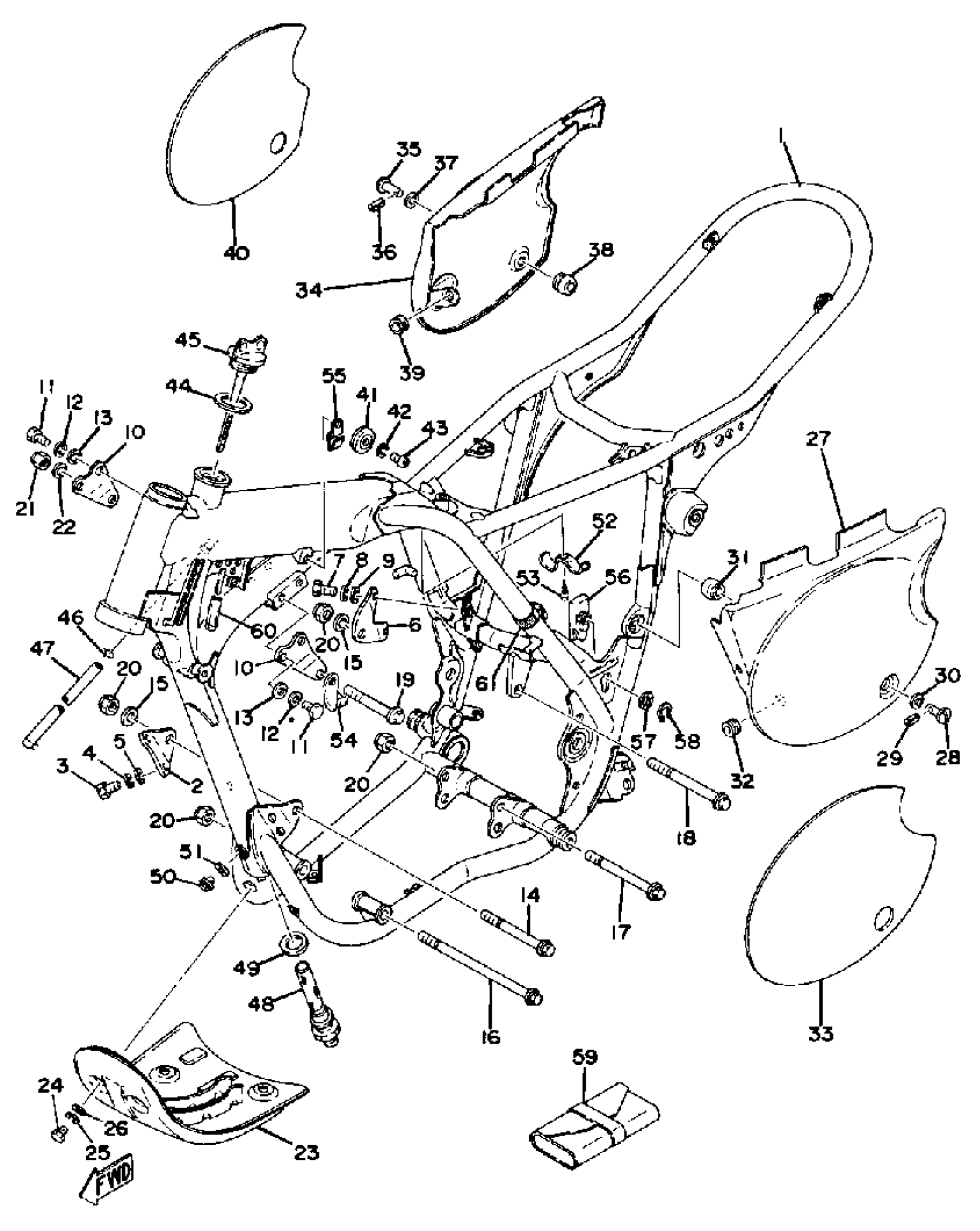

Yamaha TT500C (TT500) 1976 FRAME - SIDE COVER Diagram
#
1
FRAME
(583-21110-01-33)
Unavailable
2
STAY, ENGINE 3
583-21316-00-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
STAY, ENGINE 4
583-21317-00-00
Unavailable
9
.. WASHER, PLATE
92990-08600-00
Unavailable
10
STAY,ENGINE 2
583-21315-00-00
Unavailable
13
.. WASHER, PLATE
92990-08600-00
Unavailable
16
BOLT (583 FRAME)
90105-10063-00
Unavailable
17
BOLT, WASHER BASED (2H7)
90105-10105-00
Unavailable
18
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
19
BOLT, FLANGE
95814-08080-00
Unavailable
20
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
21
UNAVAILABLE IN PRICE BOOK (90185-08054)
90185-08080-00
Unavailable
22
WASHER, CONICAL SPRING
90208-08011-00
Unavailable
23
PROTECTOR, ENGINE
583-21471-00-00
Unavailable
24
BOLT (661)
97013-06012-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
WASHER, PLAIN (646)
92990-06600-00
Unavailable
27
COVER, SIDE 1
(583-21711-00-00)
Unavailable
28
KNOB, SIDE COVER
583-21714-00-00
Unavailable
29
PIN, SPRING (583)
91609-25018-00
Unavailable
30
WASHER, PLATE
90201-06095-00
Unavailable
31
DAMPER, SIDE COVER
583-21747-00-00
Unavailable
32
GROMMET (583 SIDE COVER)
90480-01176-00
Unavailable
33
EMBLEM 6
(583-21786-00-00)
Unavailable
34
COVER, SIDE (R.H)
4R9-21721-00-00
Unavailable
35
KNOB, SIDE COVER
583-21714-00-00
Unavailable
36
PIN, SPRING (583)
91609-25018-00
Unavailable
37
WASHER, PLATE
90201-06095-00
Unavailable
38
DAMPER, SIDE COVER
583-21747-00-00
Unavailable
39
GROMMET (583 SIDE COVER)
90480-01176-00
Unavailable
40
EMBLEM 7
(583-21787-00-00)
Unavailable
41
DAMPER, LOCATING 1
583-24181-00-00
Unavailable
42
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
43
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
44
GASKET (583 OIL TANK CAP)
90430-27124-00
Unavailable
45
BODY, CAP
2J2-21771-10-00
Unavailable
46
CLIP
90467-100A1-00
Unavailable
47
HOSE (L200)
90445-11289-00
Unavailable
48
NET, OIL TANK FILTER
583-21756-00-00
Unavailable
49
GASKET (583 OIL TANK)
90430-22123-00
Unavailable
50
BOLT, WASHER BASED(4JT)
90105-08729-00
Unavailable
51
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
52
CLAMP, DAMPER
(583-21755-00-00)
Unavailable
53
SCREW, TAPPING(6U1)
97780-50610-00
Unavailable
54
CLAMP
90465-10090-00
Unavailable
55
CLAMP
(90465-06086-00)
Unavailable
56
PORTECTOR, CHAIN
583-22147-01-00
Unavailable
57
WASHER, WAVE (583 CHAIN PROTEC
90206-15023-00
Unavailable
58
CIRCLIP(1AR)
99009-15400-00
Unavailable
59
TOOL KIT (1E6-28100-10)
1JN-W2810-00-00
Unavailable
60
HOSE
(90446-07114-00)
Unavailable
61
BAND, SWITCH CORD
437-83936-01-00
Unavailable
