Description

Price

1

FENDER, FRONT (583-21511-00)

583-21511-00-36

Unavailable

2

DAMPER, FENDER

322-21541-00-00

$7.99

3

COLLAR

90387-06158-00

$8.49

4

WASHER, PLATE

90201-06380-00

$0.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

BOLT, HEXAGON

97017-06030-00

$3.61

7

FENDER, REAR

583-21611-00-36

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

11

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

12

WASHER, SPECIAL SHAPE

90209-06087-00

Unavailable

13

DAMPER 2

(322-21639-00-00)

Unavailable

14

DAMPER, FENDER

322-21541-00-00

$7.99

15

WASHER, SPRING

92995-06100-00

Unavailable

16

NUT (J17)

95380-06800-00

Unavailable

17

GUARD, MUD

583-21629-00-00

Unavailable

18

DAMPER

583-21746-00-00

Unavailable

19

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

20

WASHER, SPRING

92995-06100-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

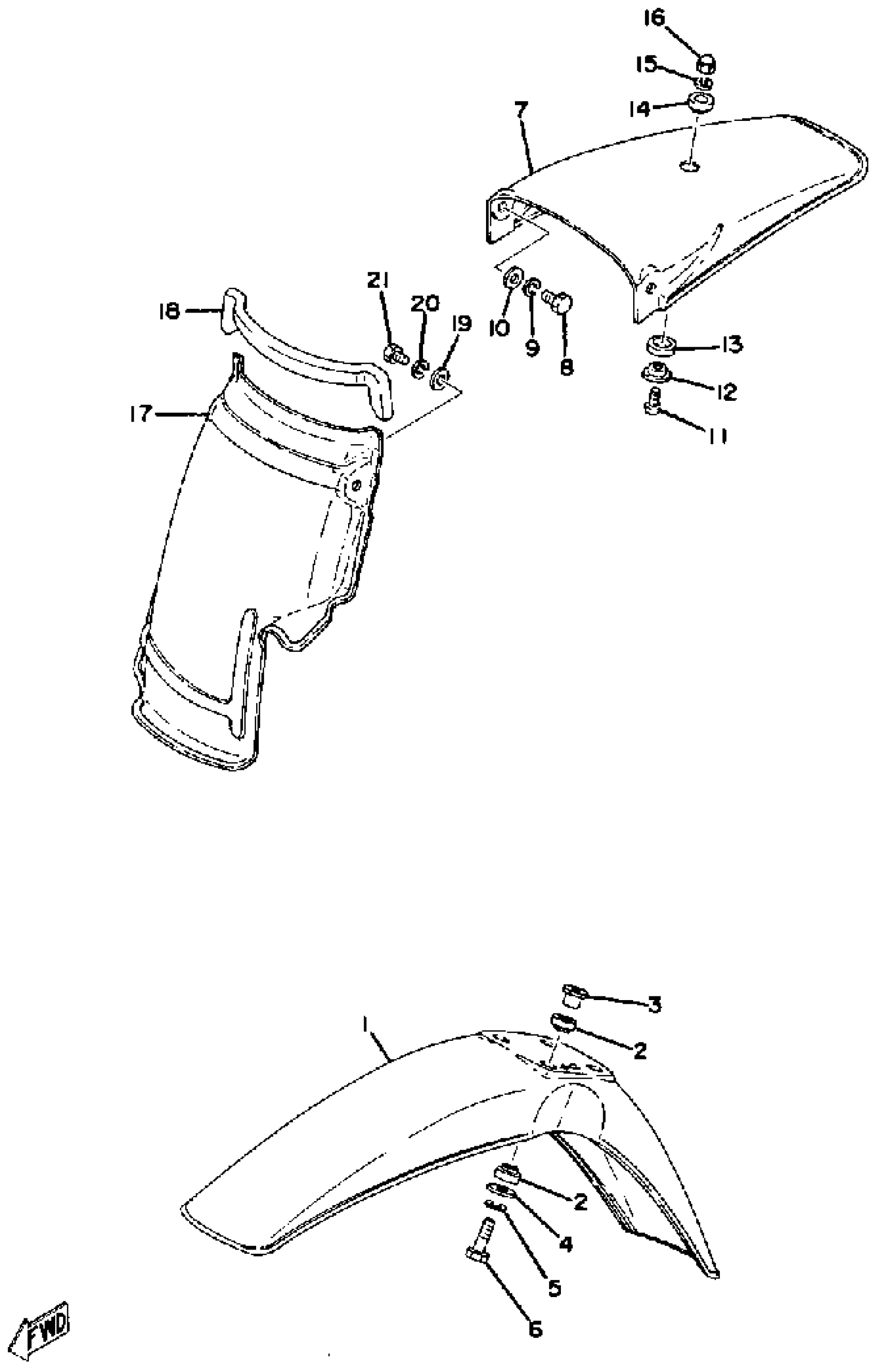

Yamaha TT500C (TT500) 1976 FENDER Diagram

FENDER, FRONT (583-21511-00)

DAMPER, FENDER

COLLAR

WASHER, PLATE

WASHER, SPRING

BOLT, HEXAGON

FENDER, REAR

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE (583 REAR FENDER

SCREW, PAN HEAD(6E5)

WASHER, SPECIAL SHAPE

DAMPER 2

DAMPER, FENDER

WASHER, SPRING

NUT (J17)

GUARD, MUD

DAMPER

WASHER, PLATE (583 REAR FENDER

WASHER, SPRING

BOLT, HEXAGON DEEP RECESS
