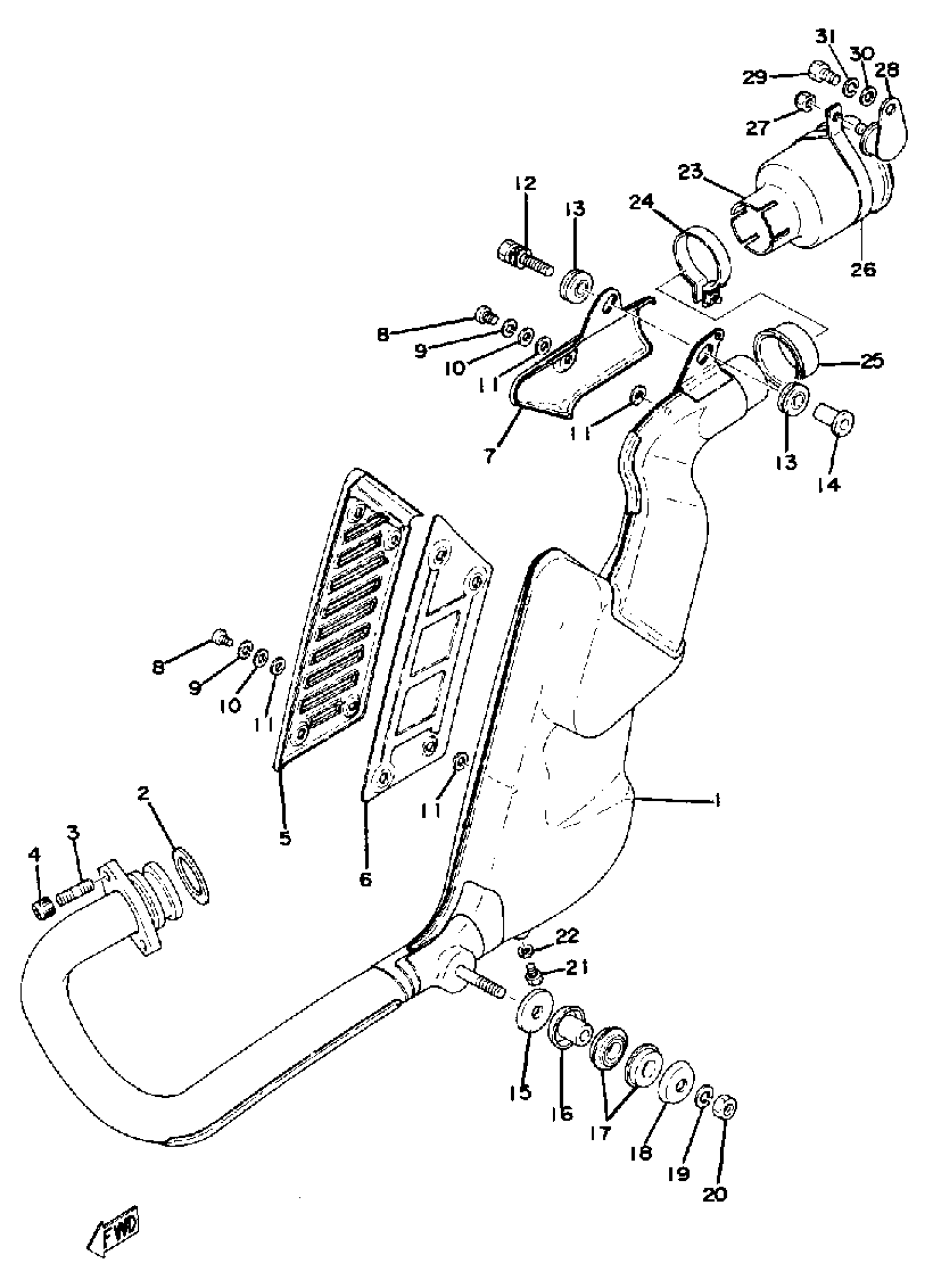

Yamaha TT500C (TT500) 1976 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
(583-14610-02-00)
Unavailable
5
NO LONGER AVAILABLE
583-14718-01-00
Unavailable
6
PROTECTER, MUFF 3
(1E6-14738-00-00)
Unavailable
7
PROTECTER, MUFF 2
(583-14728-01-00)
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
12
BOLT, WITH WASHER
90119-08014-00
Unavailable
13
DAMPER, MUFFLER 2
(583-14757-00-00)
Unavailable
14
COLLAR
(90387-08527-00)
Unavailable
15
WASHER, PLATE
90202-10098-00
Unavailable
16
SPACER
(583-14763-00-00)
Unavailable
17
DAMPER, MUFFLER
(583-14747-00-00)
Unavailable
18
WASHER, SPEC''L SHAP
90209-10140-00
Unavailable
19
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
20
NUT(3BM)
95314-10600-00
Unavailable
21
BOLT(3JP)
97017-06010-00
Unavailable
23
TT500C S/ARRES
(ACC-00002-71-00)
Unavailable
25
GASKET, MUFFLER (583-14714-00)
583-14714-02-00
Unavailable
26
CLAMP
(90461-14019-00)
Unavailable
27
NUT, U
95617-08100-00
Unavailable
28
STAY, MUFFLER
(560-14791-00-00)
Unavailable
29
BOLT(JA9)
90101-08691-00
Unavailable
30
WASHER, PLAIN
92990-08200-00
Unavailable
31
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
