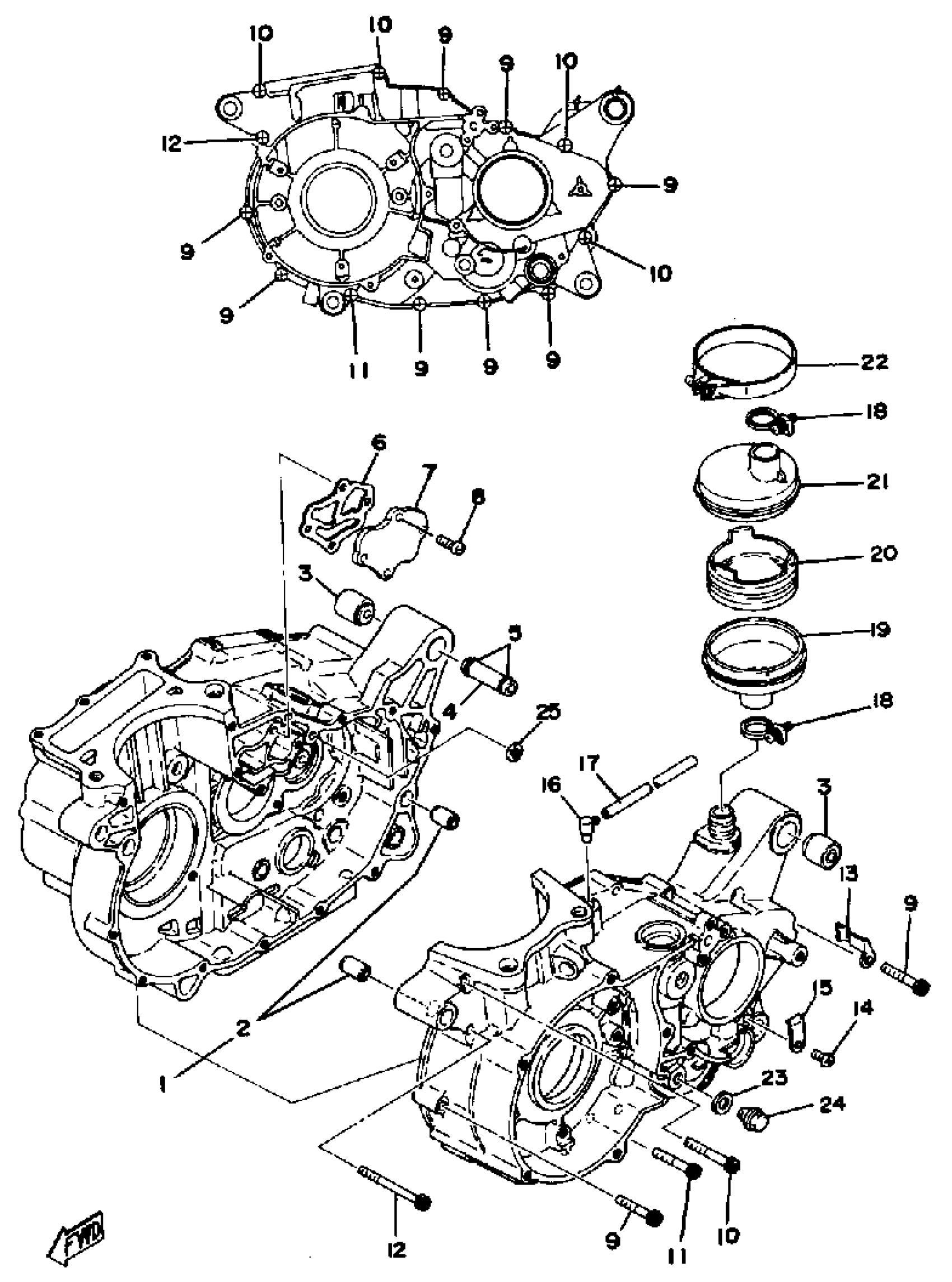

Yamaha TT500C (TT500) 1976 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY (583-15100-00)

583-15100-03-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

DAMPER, ENG MOUNT 1

583-15316-00-00

Unavailable

4

SPACER, ENG MOUNT

583-15317-01-00

Unavailable

5

O-RING (1J7)

93210-11313-00

$8.49

6

GASKET 2

3HT-15466-00-00

$7.99

7

COVER, OIL PUMP 2

583-15426-10-00

Unavailable

8

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

9

BOLT,SOCKET

91317-06035-00

Unavailable

10

BOLT,SOCKET

91317-06045-00

$4.99

11

BOLT,SOCKET

91317-06055-00

$4.19

12

BOLT, SOCKET

91317-06065-00

$3.76

13

GSKT TT500C/XT500C

(583-00000-20-00)

Unavailable

13

CLAMP(51Y)

90465-08277-00

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

CLAMP

(90465-05075-00)

Unavailable

16

BREATHER

583-15371-00-00

Unavailable

17

HOSE (L1050)

90445-072G8-00

Unavailable

18

CLAMP, HOSE (583)

90460-22083-00

Unavailable

19

BREATHER 2

583-15347-00-00

Unavailable

20

SEPARATOR, OIL

3HT-15358-00-00

Unavailable

21

BREATHER 1

583-15346-00-00

Unavailable

22

CLAMP, HOSE (90460-71017)

90460-71129-00

Unavailable

23

GASKET (5R6)

90430-10171-00

Unavailable

24

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

25

GASKET (583 CRANKCASE)

90430-09121-00

Unavailable

26

GSKT TT500C/XT500C

(583-00000-20-00)

Unavailable

26

BOLT,SOCKET

91317-06055-00

$4.19
