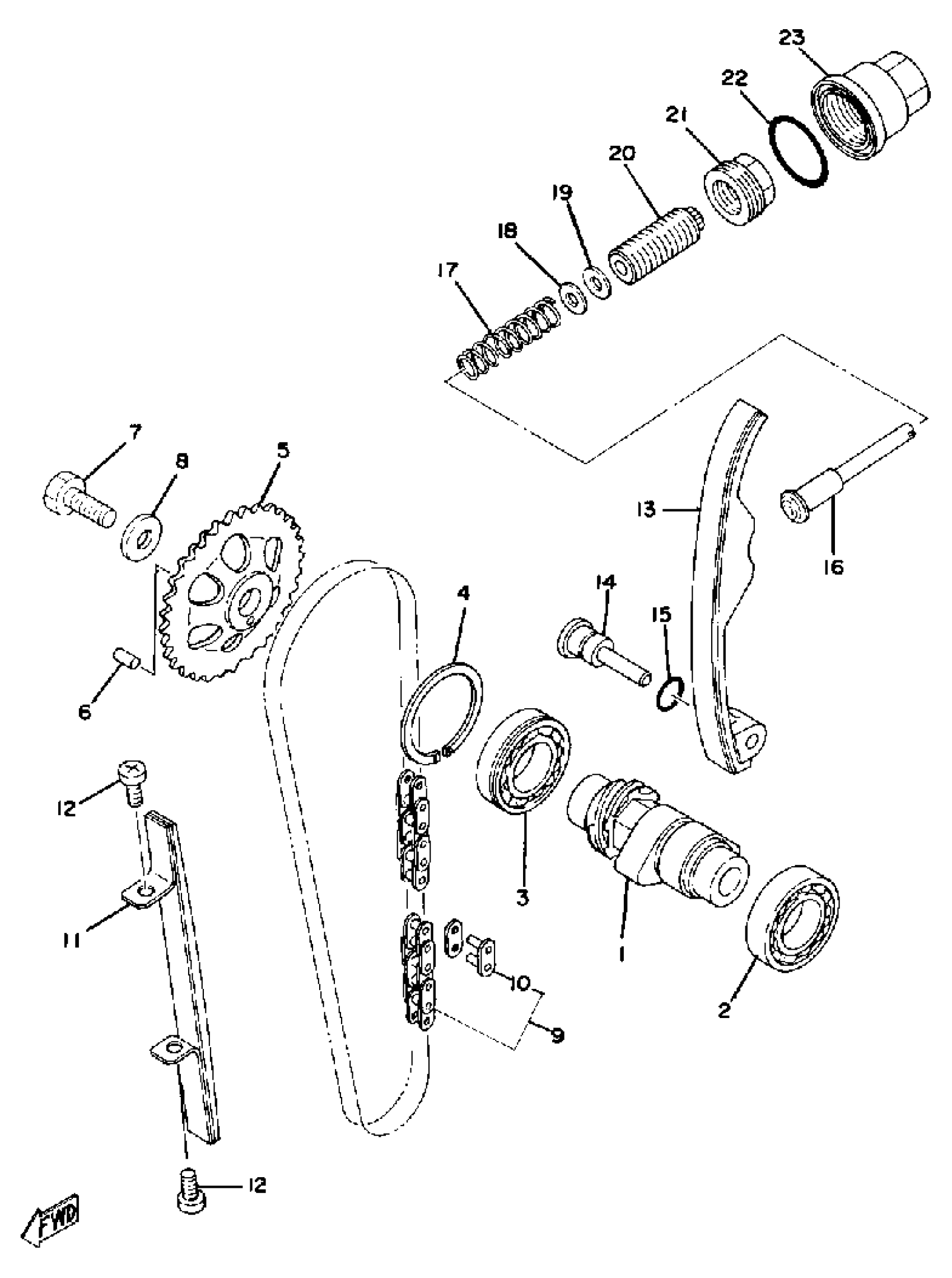

Yamaha TT500C (TT500) 1976 CAMSHAFT-CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

583-12171-02-00

Unavailable

2

BEARING(1FF)

93306-00519-00

$36.99

3

BEARING(1FF)

93306-00519-00

$36.99

4

CIRCLIP (583 CAM SHAFT)

93440-47044-00

$12.49

5

SPROCKET, CAM CHAIN DRIVEN

583-12176-00-00

$93.99

6

PIN,DOWEL (603)

93604-10011-00

$8.49

7

BOLT (583)

90101-10303-00

$9.49

8

WASHER, PLATE (3L6)

90201-10774-00

$9.49

9

CHAIN, CAM SHAFT (583)

94500-02106-00

$68.99

10

JOINT, CHAIN (583)

94600-02001-00

$7.99

11

GUIDE, STOPPER 1

583-12231-01-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

GUIDE, STOPPER 2

341-12241-04-00

$85.99

14

SHAFT, CHAIN TENSIONER

583-12247-00-00

Unavailable

15

O-RING (256)

93210-12152-00

$7.49

16

ROD, CHAIN TENSIONER

583-12217-00-00

Unavailable

17

SPRING COMPRESSION341122160200

90501-14095-00

Unavailable

18

WASHER, PLATE

90201-06104-00

Unavailable

19

DAMPER (583-12232-00)

583-12232-01-00

Unavailable

20

SCREW (34F)

90149-18191-00

Unavailable

21

NUT (583 CHAIN TENSIONER)

90179-18199-00

Unavailable

22

O-RING (341)

93210-32172-00

Unavailable

23

CAP, CHAIN TENSIONER

583-12212-00-00

Unavailable
