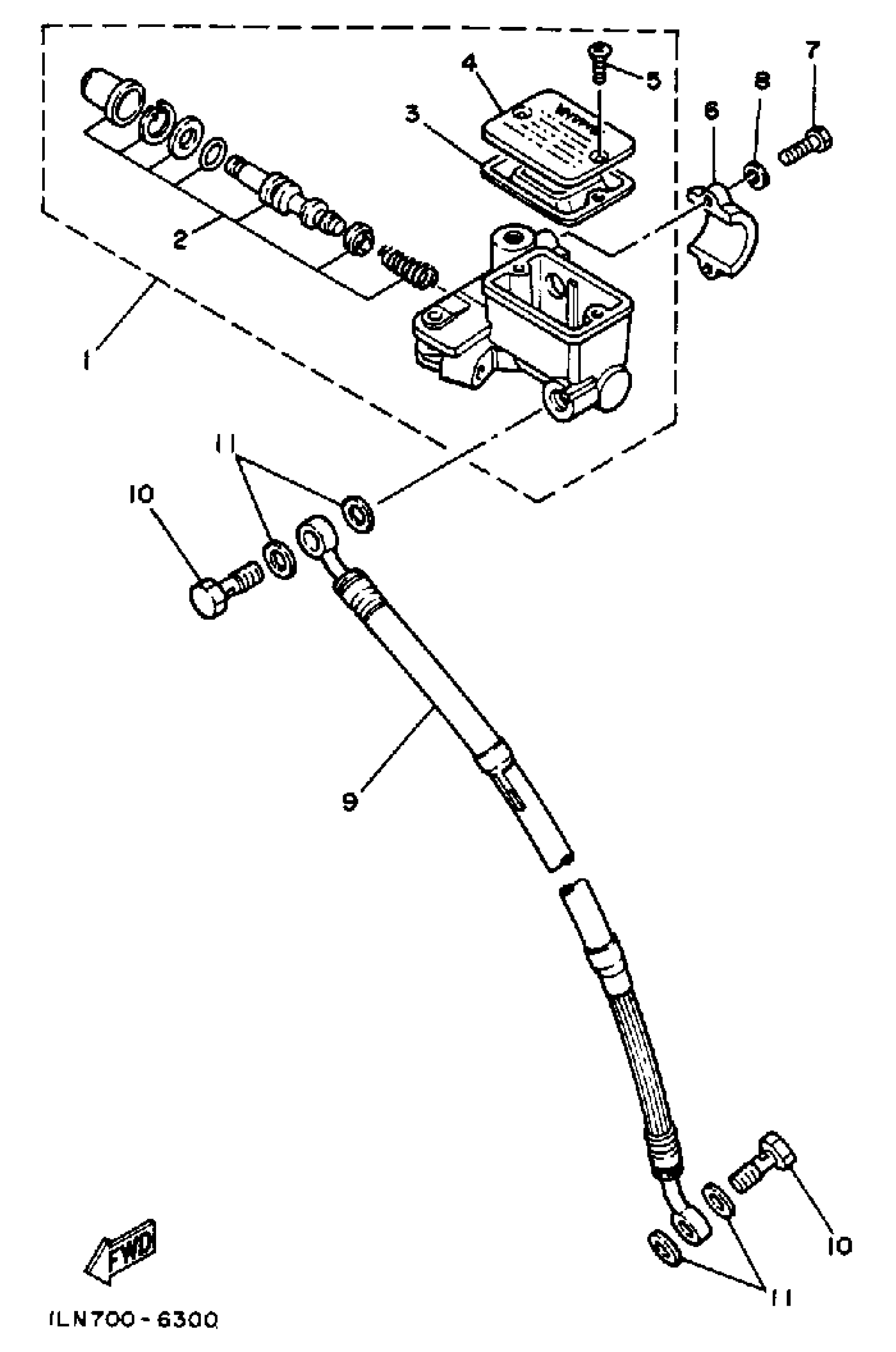

Yamaha TT350T (TT350) 1987 FRONT MASTER CYLINDER Diagram

MSTR.CYL.SUB.ASSY.

3AX-25870-00-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$57.49

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$20.66

CAP, RESERVOIR (FRONT)

2KF-25852-02-00

Unavailable

SCREW, FLAT

98707-04012-00

$1.49

BRACKET, MASTER CYLINDER

56A-25867-00-00

$23.49

BOLT, HEXAGON

97017-06025-00

$2.84

WASHER, SPRING

92907-06100-00

$1.49

HOSE, BRAKE 1

1RG-25872-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$8.43

WASHER, PLATE(481)

90201-10118-00

Unavailable
