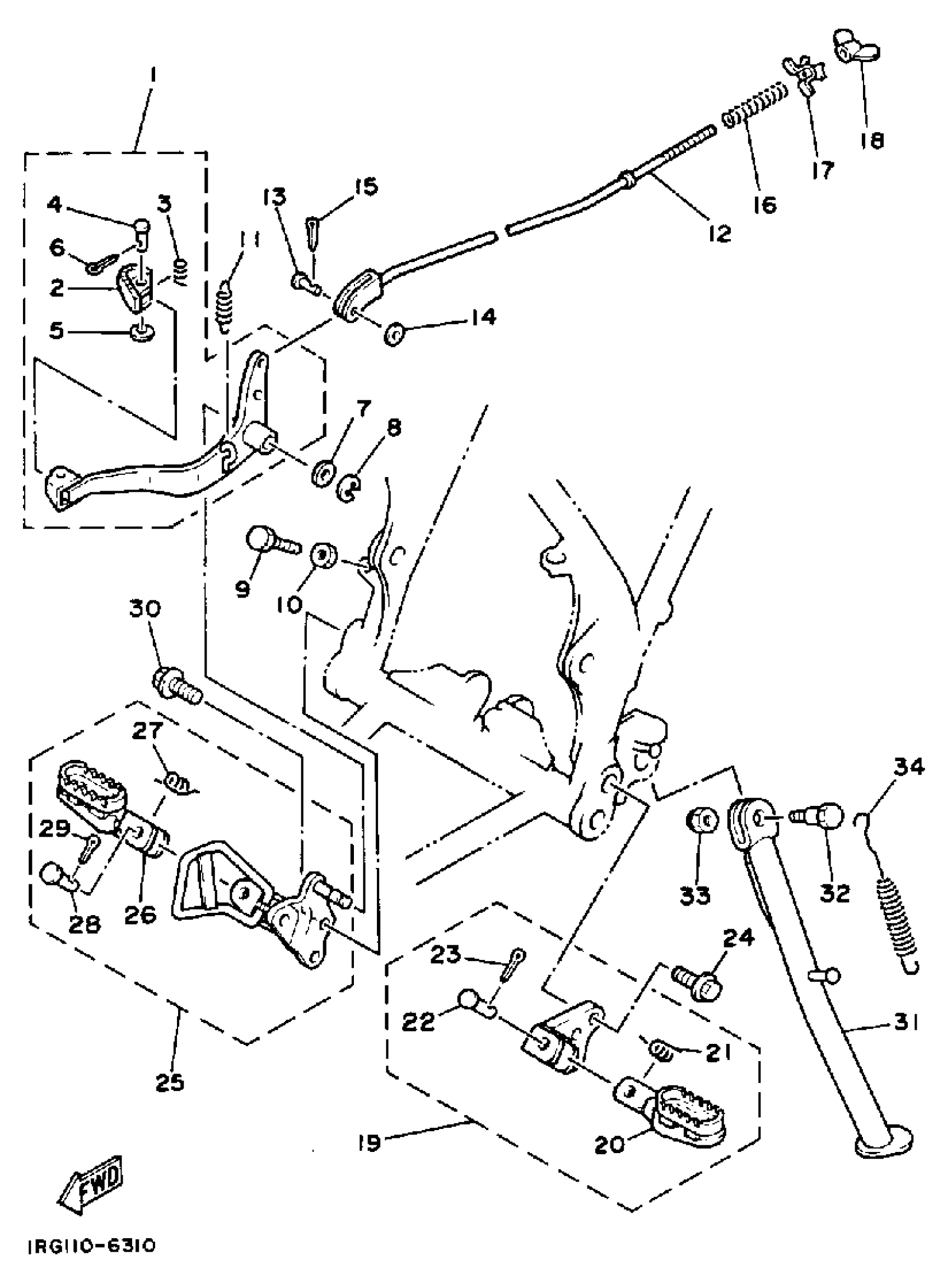

Yamaha TT350S (TT350) 1986 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1LN-27200-00-00

Unavailable

2

PEDAL, BRAKE

3R8-27242-00-00

Unavailable

3

SPRING, TORSION

90508-14429-00

Unavailable

4

PIN, CLEVIS

91702-06028-00

$7.49

5

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

6

PIN, COTTER

91490-20025-00

$1.99

7

WASHER, PLATE (525)

90201-12541-00

$7.49

8

CIRCLIP (4V2)

93430-09038-00

$9.49

9

BOLT, HEXAGON

97017-06025-00

$4.24

10

NUT(650)

95380-06700-00

$8.49

11

SPRING, TENSION (23X)

90506-18305-00

$10.49

12

ROD,BRAKE

1LN-27231-01-00

Unavailable

13

PIN, CLEVIS (24X)

90240-06103-00

$7.49

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PIN, COTTER

91490-20025-00

$1.99

16

SPRING, (180-27236-00)

90501-10245-00

Unavailable

17

SEAT, SPRING

1W2-27239-00-00

Unavailable

18

NUT (25K)

90179-06411-00

Unavailable

19

FRT FOOTREST ASSEMBLY LASSEMBLY (L)

1LN-27410-00-00

Unavailable

20

FOOTREST 1

23X-27411-03-00

Unavailable

21

SPRING, TORSION (23X)

90508-20583-00

Unavailable

22

PIN, CLEVIS (23X)

90240-10101-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

25

FRT FOOTREST ASSEMBLY RASSEMBLY (R)

1LN-27420-00-00

Unavailable

26

FOOTREST 2

23X-27421-04-00

Unavailable

27

SPRING, TORSION (23X)

90508-20583-00

Unavailable

28

PIN, CLEVIS (23X)

90240-10101-00

Unavailable

29

PIN, COTTER

91490-25020-00

Unavailable

30

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

31

STAND, SIDE

1LN-27311-01-00

Unavailable

32

BOLT, WASHER BASED

90105-12616-00

Unavailable

33

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

34

SPRING (434)

90507-29008-00

Unavailable
