Description

Price

1

SHIFT SHAFT ASSEMBLY

30X-18101-01-00

Unavailable

2

COLLAR (3Y1)

90387-12787-00

$11.49

3

CIRCLIP(1EY)

99009-17400-00

$4.73

4

STOPPER LEVER ASSY

3Y1-18140-00-00

$30.99

5

SPRING, TORSION

90508-26434-00

Unavailable

6

WASHER, PLATE (30X)

90201-177G4-00

$9.49

7

SPRING, TORSION (2K7)

90508-32374-00

$7.49

8

PIN, DOWEL

93608-30152-00

Unavailable

9

SEAL, OIL (30X)

93102-12321-00

$12.49

10

WASHER

90201-12588-00

$7.49

11

SPACER (3Y1)

90560-12191-00

$7.49

12

SHIFT PEDAL ASSEMBLY

1LN-18110-00-00

Unavailable

13

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

14

BOLT, HEXAGON

97017-06020-00

$4.06

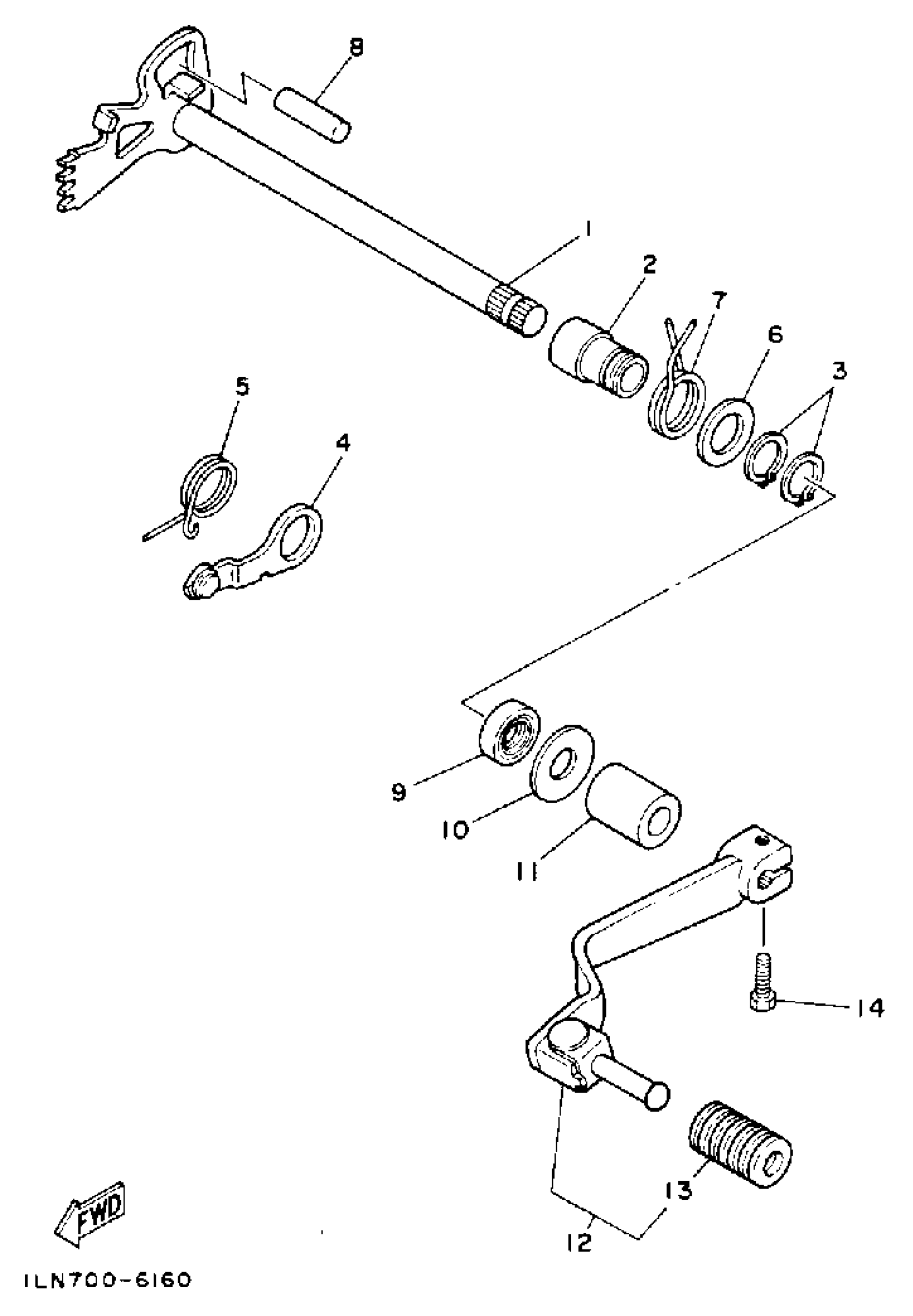

Yamaha TT350S (TT350) 1986 SHIFT SHAFT Diagram

SHIFT SHAFT ASSEMBLY

COLLAR (3Y1)

CIRCLIP(1EY)

STOPPER LEVER ASSY

SPRING, TORSION

WASHER, PLATE (30X)

SPRING, TORSION (2K7)

PIN, DOWEL

SEAL, OIL (30X)

WASHER

SPACER (3Y1)

SHIFT PEDAL ASSEMBLY

COVER, CHANGE PEDAL

BOLT, HEXAGON
