Description

Price

1

SHOCK ASY, REAR

1LN-22210-10-6W

Unavailable

2

BEARING(4GG)

93399-999T3-00

$62.99

3

CIRCLIP (23X)

93440-30113-00

$1.70

4

OIL SEAL (23X)

93104-18077-00

$11.49

5

RING, COVER

1RK-22215-00-00

$24.99

6

. UNAVAILABLE IN PRICE BOOK

[1R-G2221-20-06

Unavailable

7

COLLAR (23X)

90387-127G8-00

$11.49

8

BOLT (1M1)

90109-10453-00

Unavailable

9

WASHER (7A9)

90201-100F7-00

$9.49

10

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

11

COLLAR (23X)

90387-126H8-00

$28.99

12

BOLT

90109-10700-00

Unavailable

13

WASHER, PLATE

90201-12027-00

$8.49

14

WASHER, PLATE(6TC)

90201-10M05-00

$5.60

15

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

16

DAMPER, SUB TANK

24X-22261-00-00

Unavailable

17

HOLDER, SUB TANK

24X-22262-00-00

Unavailable

18

GROMMET

90480-17359-00

Unavailable

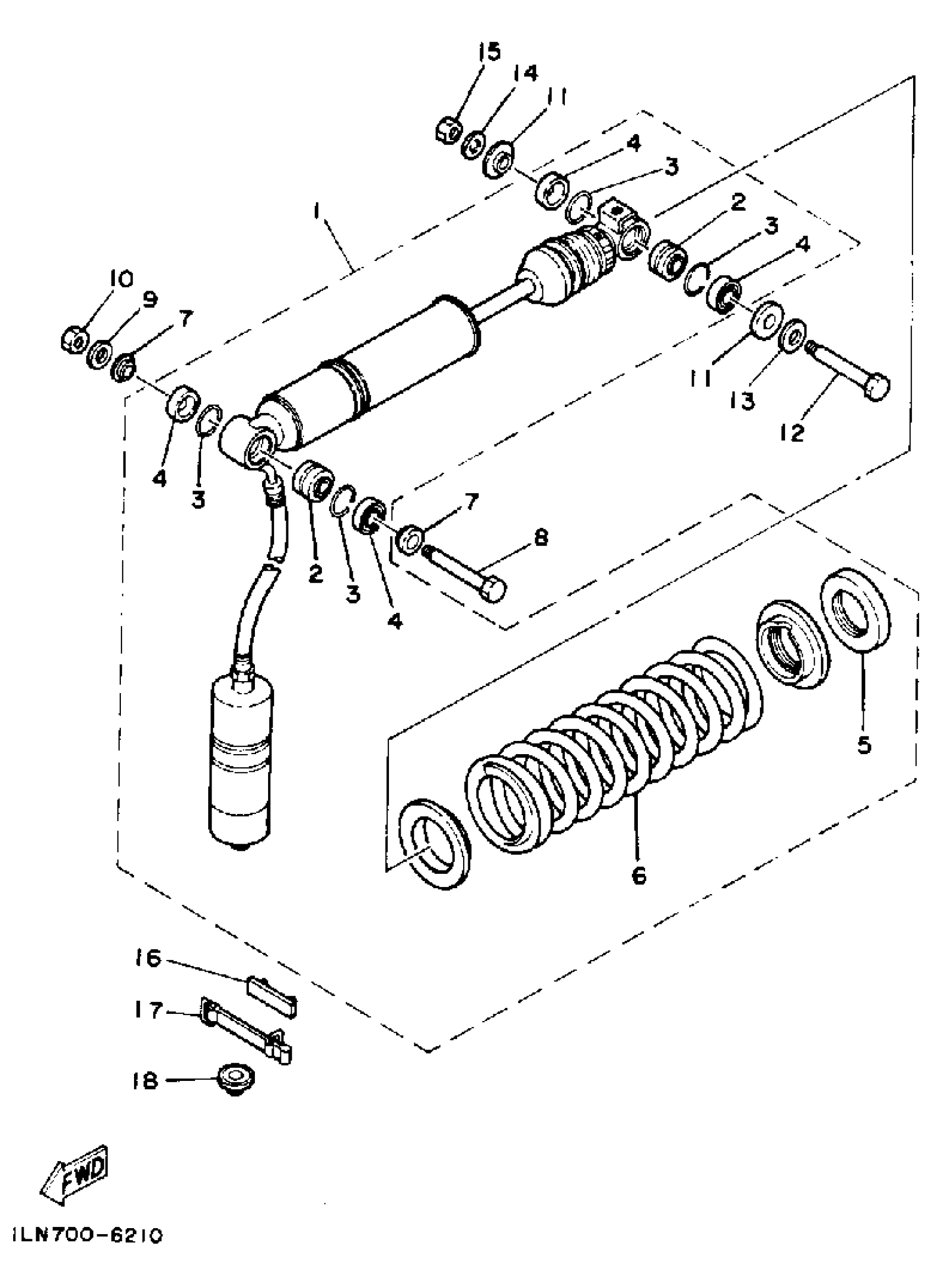

Yamaha TT350S (TT350) 1986 REAR SHOCKS Diagram

SHOCK ASY, REAR

BEARING(4GG)

CIRCLIP (23X)

OIL SEAL (23X)

RING, COVER

. UNAVAILABLE IN PRICE BOOK

COLLAR (23X)

BOLT (1M1)

WASHER (7A9)

NUT, SELF LOCKING (23X)

COLLAR (23X)

BOLT

WASHER, PLATE

WASHER, PLATE(6TC)

NUT, SELF LOCKING (23X)

DAMPER, SUB TANK

HOLDER, SUB TANK

GROMMET
