Description

Price

1

HUB, FRONT

34X-25111-02-98

Unavailable

2

BEARING

93306-20205-00

$38.99

3

SPACER(1ET)

90560-15290-00

$18.99

4

OIL SEAL (23X)

93102-20281-00

$14.99

5

RIM (1.60-21)

94416-21430-00

Unavailable

6

SPACER, BEAD

4V5-25194-00-00

Unavailable

7

SPOKE SET, FRONT

55U-25104-00-00

Unavailable

8

80/100-21 ED15 BS

(94108-212J7-00)

Unavailable

9

TUBE 90190-21

94209-21229-00

Unavailable

10

BAND, RIM (2A6)

94330-21084-00

$16.99

11

AXLE, WHEEL

4GY-25181-00-00

Unavailable

12

COLLAR (1W1)

90387-15600-00

$18.99

13

COVER, HUB DUST

322-25118-00-00

$17.49

14

GEAR UNIT ASSY

3XP-25190-00-00

Unavailable

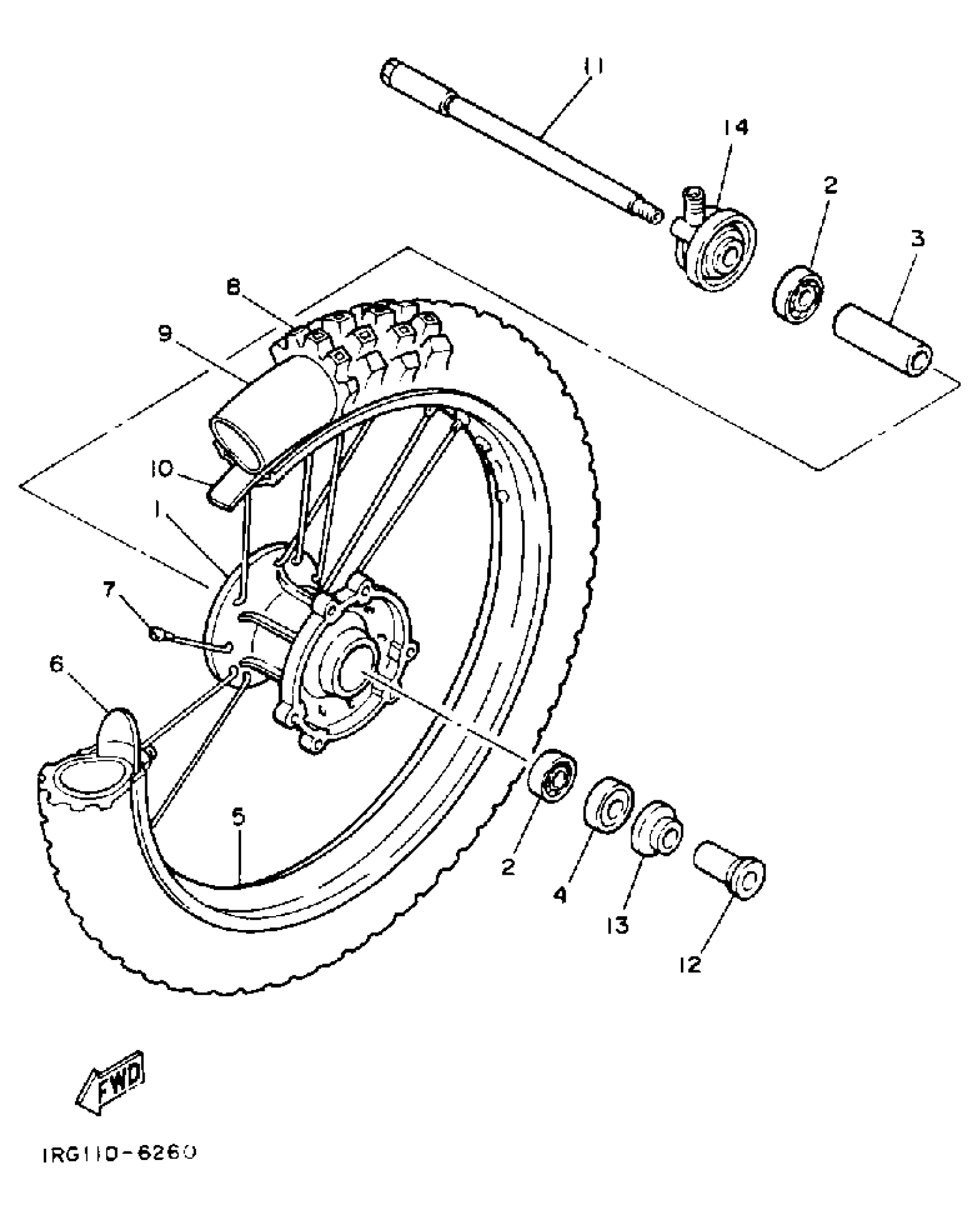

Yamaha TT350S (TT350) 1986 FRONT WHEEL Diagram

HUB, FRONT

BEARING

SPACER(1ET)

OIL SEAL (23X)

RIM (1.60-21)

SPACER, BEAD

SPOKE SET, FRONT

80/100-21 ED15 BS

TUBE 90190-21

BAND, RIM (2A6)

AXLE, WHEEL

COLLAR (1W1)

COVER, HUB DUST

GEAR UNIT ASSY
