Description

Price

1

FENDER, FRONT

34K-21511-00-00

Unavailable

2

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

3

WASHER (3R8)

90209-06187-00

$8.49

4

FENDER, REAR

34K-21610-00-00

Unavailable

5

DAMPER

22F-2139X-00-00

$7.99

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, SPECIAL 1

34K-21615-00-00

Unavailable

10

GROMMET (462)

90480-13018-00

$8.49

11

GUARD, MUD

34K-21629-01-00

Unavailable

12

BOLT, HEXAGON

97017-06012-00

$3.76

13

WASHER, PLATE 8221447500

90201-06057-00

$5.60

14

GUARD, MUD

1LN-21629-00-00

Unavailable

15

UNAVAILABLE IN PRICE BOOK

[1L-N2166-90-00

Unavailable

16

FLAP

30X-21621-00-00

Unavailable

17

CLAMP

5Y9-12491-00-00

Unavailable

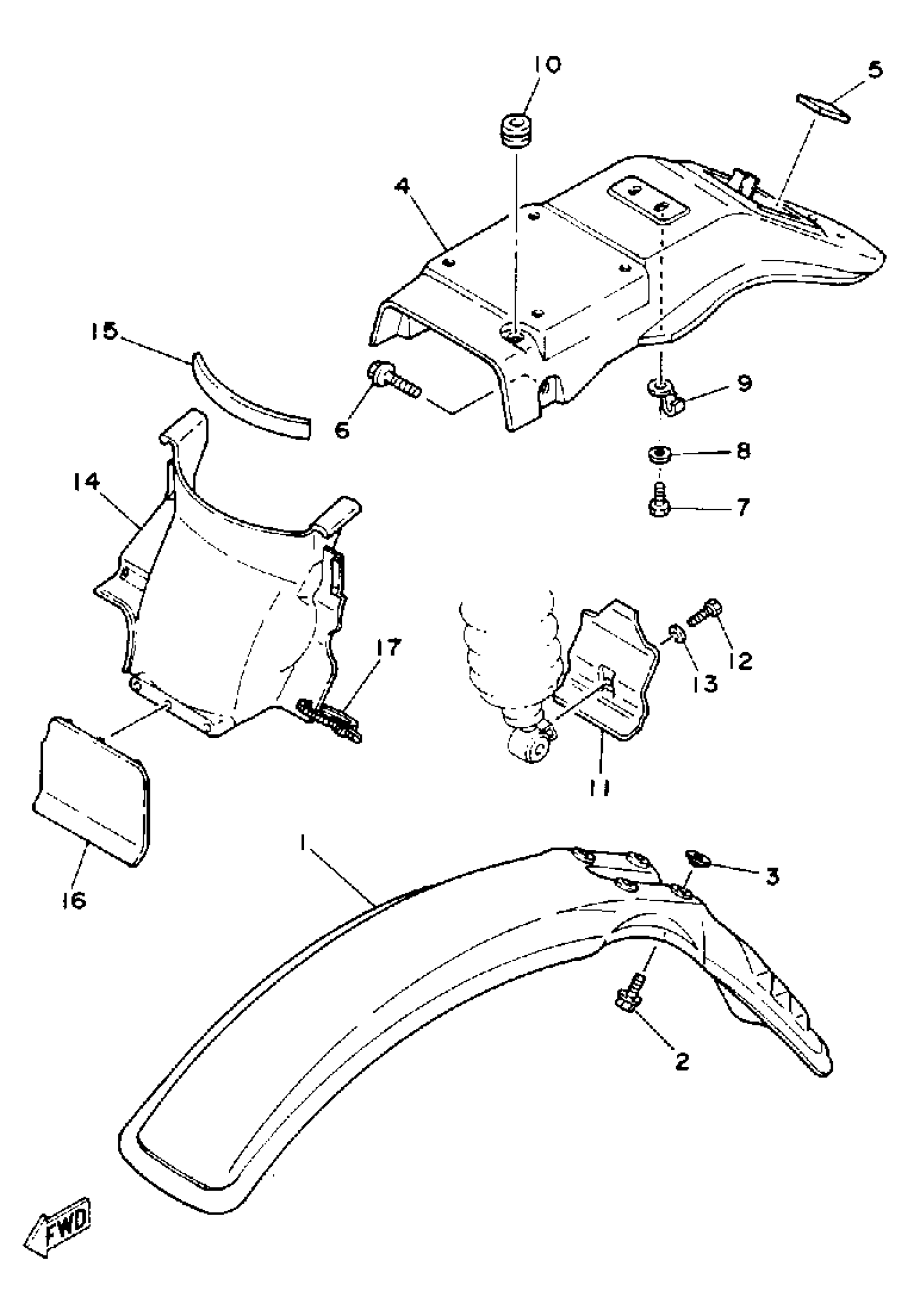

Yamaha TT350S (TT350) 1986 FENDER Diagram

FENDER, FRONT

BOLT, WITH WASHER (10V)

WASHER (3R8)

FENDER, REAR

DAMPER

BOLT, WITH WASHER

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, SPECIAL 1

GROMMET (462)

GUARD, MUD

BOLT, HEXAGON

WASHER, PLATE 8221447500

GUARD, MUD

UNAVAILABLE IN PRICE BOOK

FLAP

CLAMP
