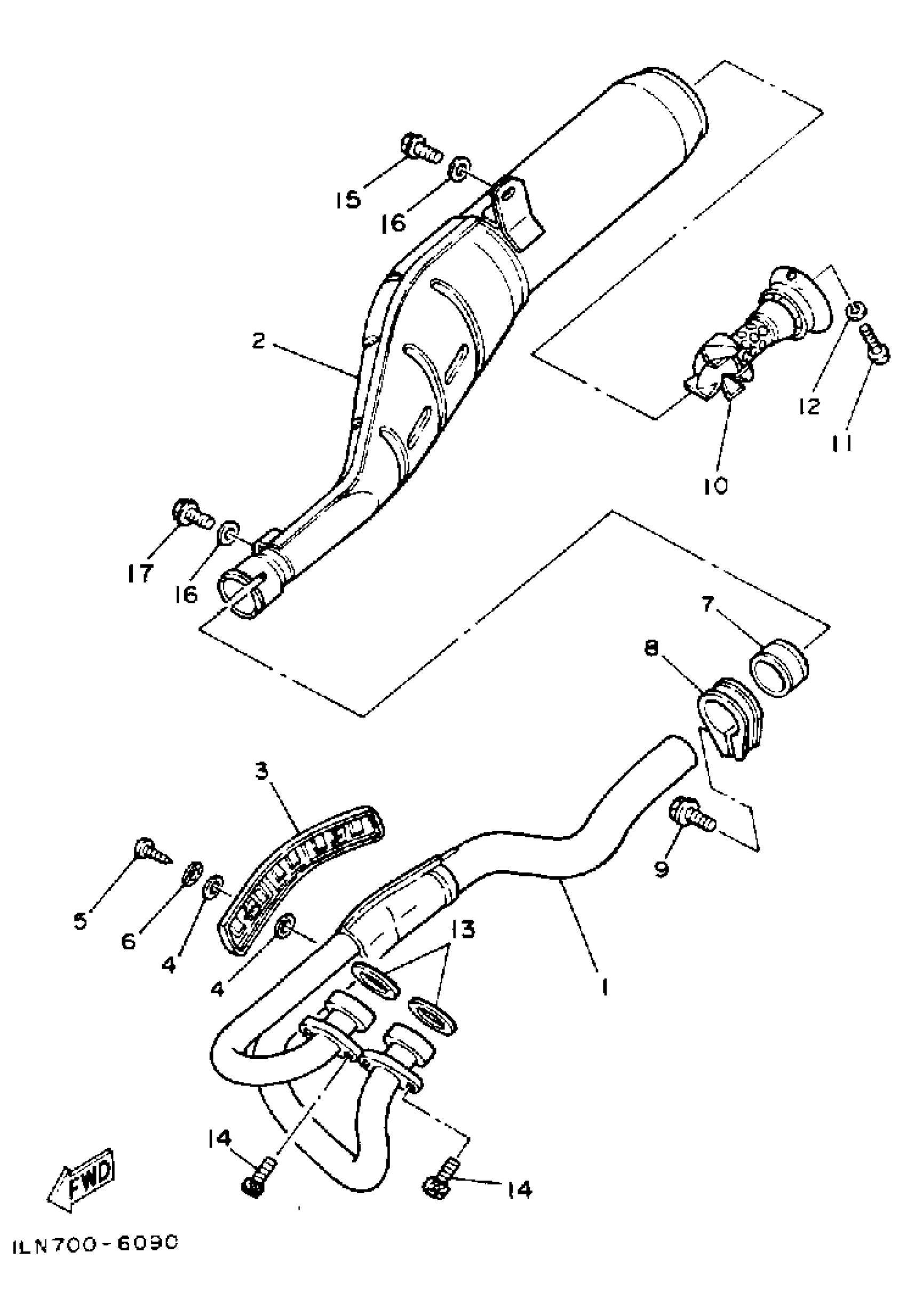

Yamaha TT350S (TT350) 1986 EXHAUST Diagram

PIPE, EXHAUST L

1LN-14611-01-00

Unavailable

MUFFLER L

1LN-14711-00-00

Unavailable

PROTECTOR, EXHAUST PIPE

55V-14628-00-00

Unavailable

WASHER, PROTECTOR

30X-14766-00-00

Unavailable

SCREW, TAPPING (30X)

90164-06017-00

$8.49

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, MUFFLER

4EL-14714-00-00

$27.99

BAND, MUFFLER

30X-14715-00-00

Unavailable

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

PIPE, OUTLET

42U-14752-00-00

Unavailable

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

GASKET, EXHAUST PIPE

4BR-14613-00-00

$7.99

BOLT,SOCKET

91317-06025-00

$5.60

BOLT, FLANGE

95817-08014-00

$5.60

WASHER (853)

90201-08326-00

Unavailable

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable
