Description

Price

1

COVER, CRANKCASE LH

30X-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4EL-15451-00-00

$25.99

3

SCREW, PAN

98517-06030-00

Unavailable

4

COVER, CRANKCASE 2

55V-15421-01-00

Unavailable

5

HOLDER

30X-15378-00-00

Unavailable

6

GASKET, CRANKCASE COVER 2

4EL-15461-04-00

$24.99

7

PIN, DOWEL

99530-12016-00

$4.89

8

BOLT,SOCKET

91317-06025-00

$5.60

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

10

BOLT,SOCKET

91317-06040-00

$3.76

11

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

12

PLUG, OIL

3Y1-15363-10-00

$18.49

13

O-RING (646)

93210-19123-00

Unavailable

14

CLAMP

90462-08062-00

Unavailable

15

SCREW, PAN

98517-06012-00

$3.78

16

PLUG (583)

90338-18067-00

Unavailable

17

PLUG

90338-19078-00

Unavailable

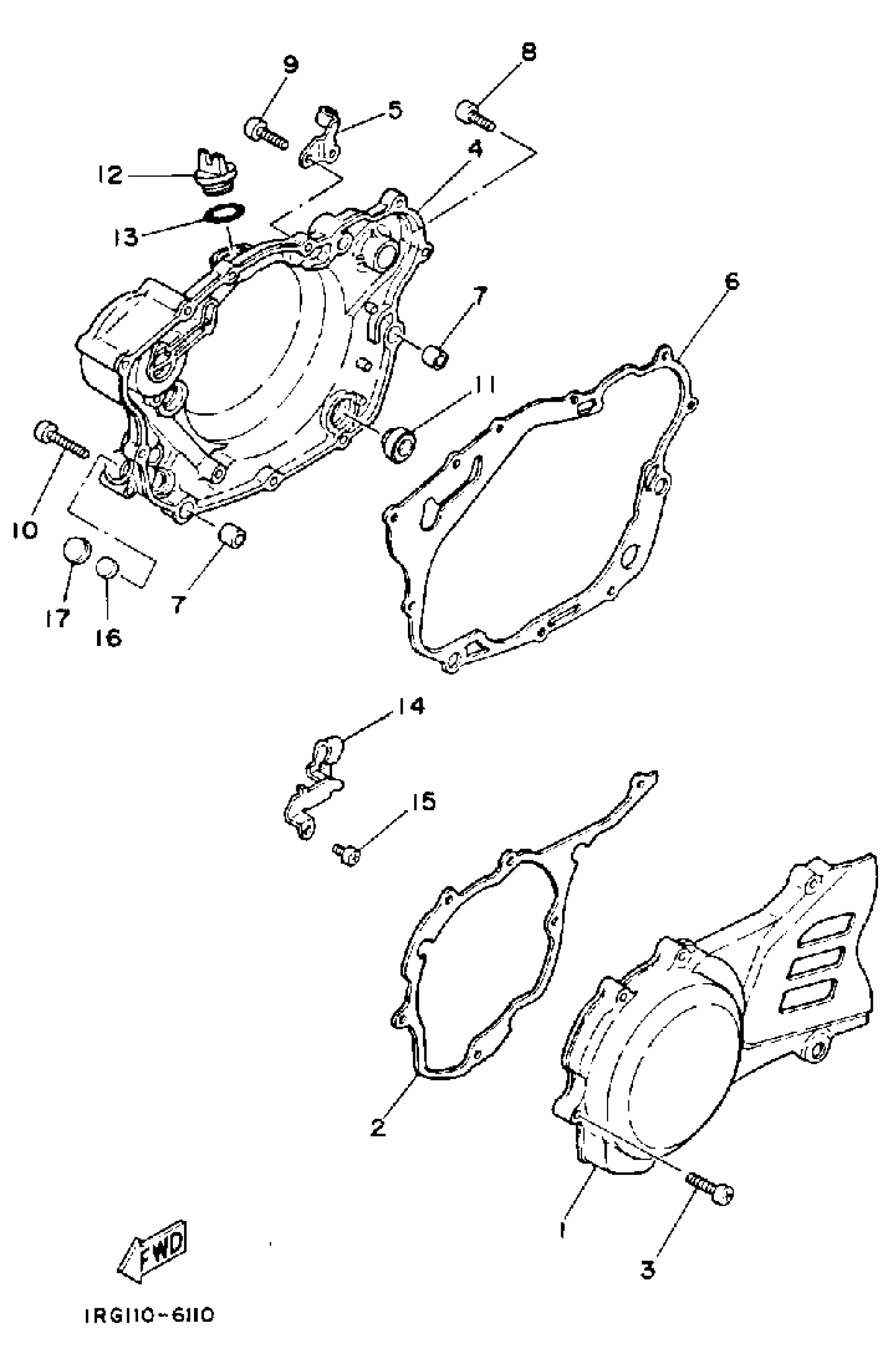

Yamaha TT350S (TT350) 1986 CRANKCASE COVER Diagram

COVER, CRANKCASE LH

GASKET, CRANKCASE COVER 1

SCREW, PAN

COVER, CRANKCASE 2

HOLDER

GASKET, CRANKCASE COVER 2

PIN, DOWEL

BOLT,SOCKET

BOLT, HEXAGON SOCKET HEAD(1VJ)

BOLT,SOCKET

GAUGE, LEVEL

PLUG, OIL

O-RING (646)

CLAMP

SCREW, PAN

PLUG (583)

PLUG
