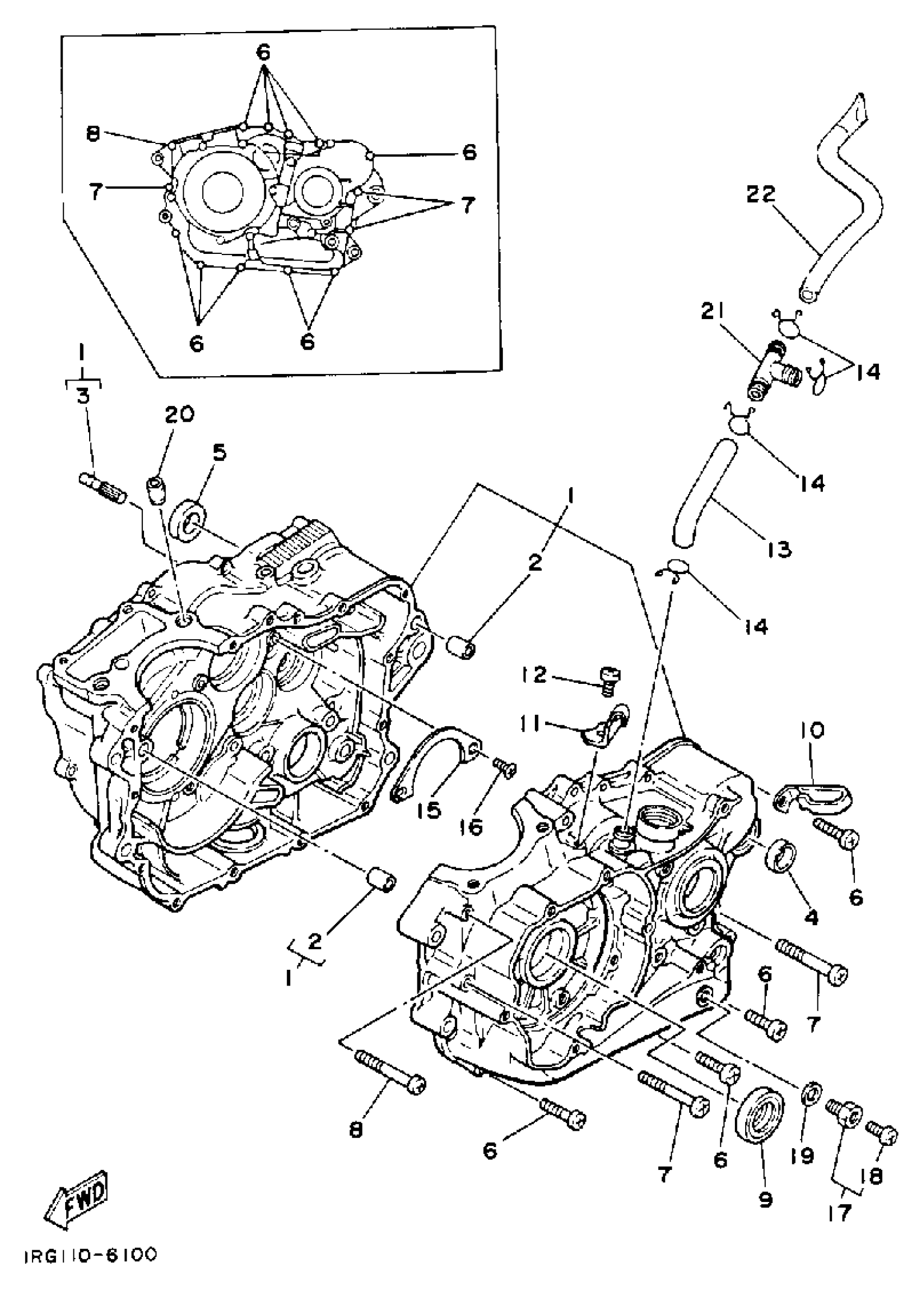

Yamaha TT350S (TT350) 1986 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

55V-15100-03-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

STOPPER

55V-15668-00-00

$4.68

4

COLLAR

90387-17009-00

$15.99

5

COLLAR (30X)

90387-172J0-00

Unavailable

6

SCREW, PAN

98517-06030-00

Unavailable

7

SCREW, PAN

98507-06060-00

$7.99

8

SCREW, PAN HEAD

98507-06070-00

$9.99

9

OIL SEAL (30X)

93102-25305-00

$14.99

10

CLAMP(51Y)

90465-08277-00

Unavailable

11

HOLDER, CLUTCH CABLE

51Y-15441-00-00

Unavailable

12

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

13

PIPE, BREATHER 1

1LN-11166-00-00

Unavailable

14

CLIP (371)

90467-14015-00

$8.49

15

PLATE, BEARING COVER

30X-15383-00-00

Unavailable

16

SCREW, FLAT

98707-06014-00

Unavailable

17

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

18

SCREW, BIND(2TV)

98980-06008-00

Unavailable

19

GASKET

214-11198-01-00

Unavailable

20

PIN, DOWEL

99530-14016-00

Unavailable

21

WAY, 3

90413-13004-00

Unavailable

22

PIPE, BREATHER

1LN-11126-00-00

Unavailable
