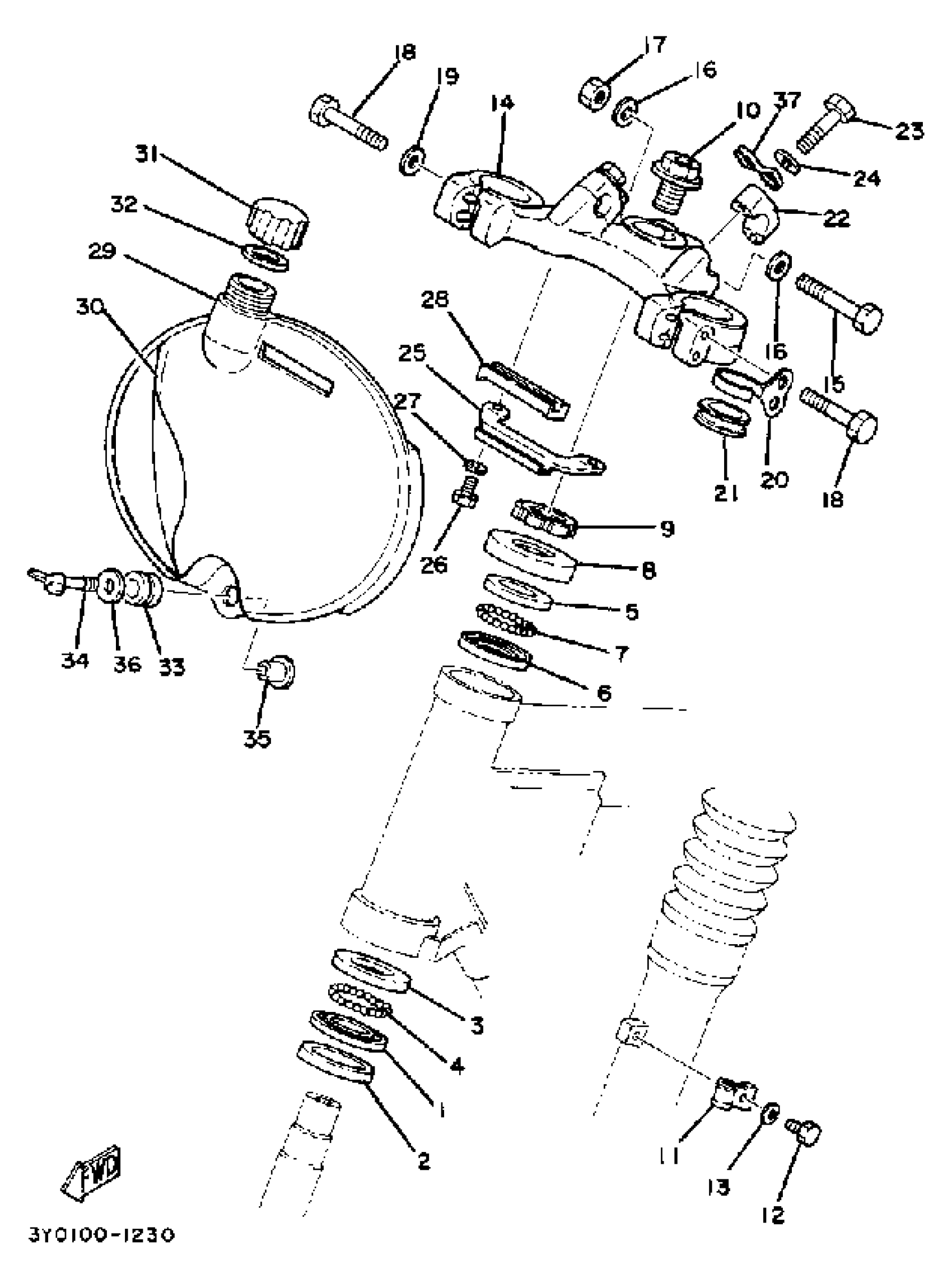

Yamaha TT250J (TT250) 1982 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

SEAL, DUST

164-23462-00-00

$7.99

3

RACE, BALL 2

B6E-23412-00-00

$13.49

4

BALL

93501-04011-00

$8.49

5

RACE, BALL 1

BP2-23411-00-00

$11.49

6

RACE, BALL 2

BP2-23412-00-00

$7.49

7

BALL

93503-16003-00

$2.72

8

COVER, BALL RACE 2

(3Y0-23416-00-00)

Unavailable

9

NUT

90179-25004-00

$24.99

10

BOLT (2A2)

90105-14102-00

$5.60

11

HOLDER, CABLE 2

3Y1-23319-00-00

$4.78

12

BOLT, HEXAGON

97017-06012-00

$3.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

CROWN, HANDLE

5X3-23435-01-98

Unavailable

15

BOLT, HEXAGON

97013-08055-00

$2.55

16

.. WASHER, PLATE

92990-08600-00

Unavailable

17

NUT(6L2)

95333-08600-00

Unavailable

18

BOLT

97014-08040-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

HOLDER, CABLE 2

(3Y0-23319-00-00)

Unavailable

21

GUIDE, WIRE

1W1-23389-00-00

Unavailable

22

HOLDER, HANDLE UPR

1E6-23441-10-38

Unavailable

23

BOLT, DOME HEAD

90106-08032-00

Unavailable

24

.. WASHER, PLATE

92990-08600-00

Unavailable

25

STAY

(3Y0-2331A-00-00)

Unavailable

26

BOLT (661)

97013-06012-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

GROMMET

3Y0-23497-00-00

Unavailable

29

TANK, WATER

3Y0-23477-10-00

Unavailable

30

EMBLEM

3Y0-23395-00-00

Unavailable

31

CAP

3Y0-23478-00-00

Unavailable

32

GASKET

3Y0-23479-00-00

Unavailable

33

GROMMET

90480-14123-00

Unavailable

34

BOLT, WING (38W)

90122-06021-00

Unavailable

35

COLLAR

90387-06158-00

Unavailable

36

WASHER, PLATE

90201-06M02-00

Unavailable

37

GUIDE, CABLE

1T2-23389-00-00

Unavailable
